ECS Elitegroup
LIVA Z5E Plus 1345U
CPU i5 1345U
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2

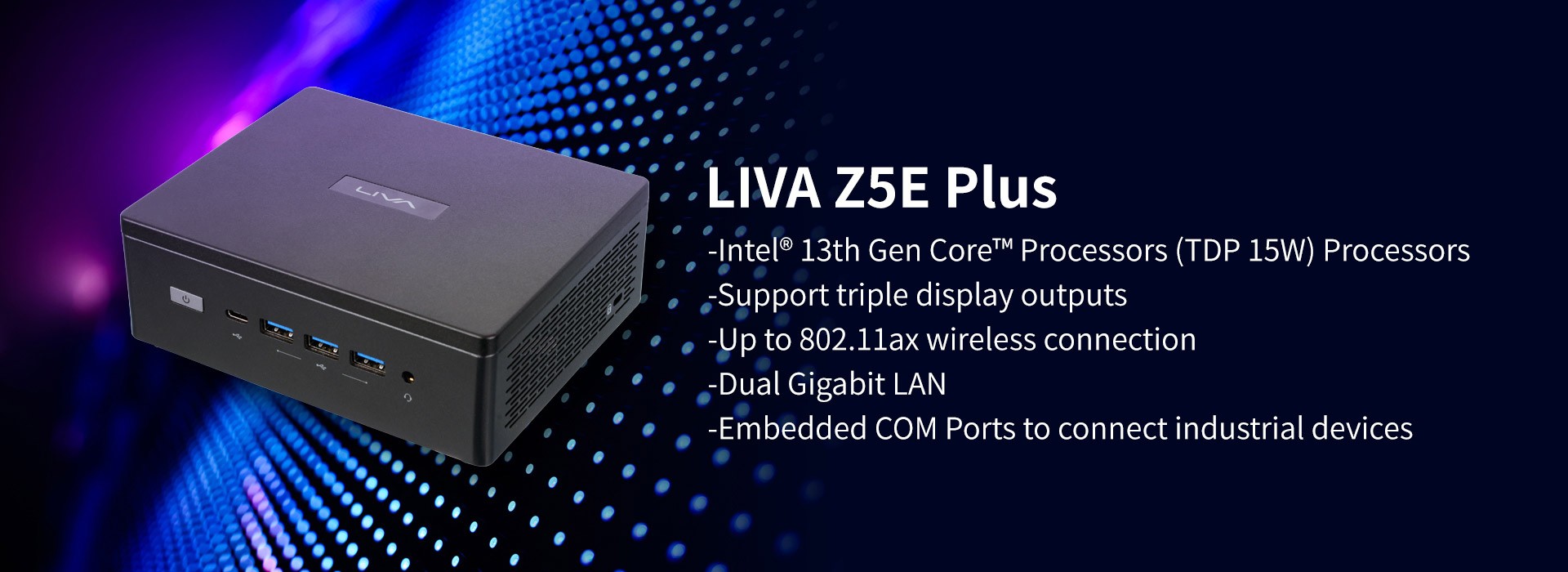

The ECS Elitegroup LIVA Z5E Plus 1345U is a mini PC powered by the Intel i5 1345U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 148 × 120 × 54mm (0.96L).
CPU & Performance
CPUi5 1345U
Generation13th
P-Cores2
Threads12
Single-core68
Multi-core22
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays4
Network
Max Ethernet2G
2.5G ports2
Physical
Dimensions148 × 120 × 54 mm
Volume0.96L
Power
PSU90W
Discover More
AOOSTAR
GEM12 Pro Max 8845HS
$400
AOOSTAR GEM12 Pro Max 8845HS features AMD r7 8845HS/7840HS, 128GB RAM, offering 2× 2.5G Ethernet and OCuLink.
CPU AMD r7 8845HS/7840HS
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M
RAM 128GB / 2slots
Speed 5600 MT/s
Drives 2 (2 NVMe)
Ethernet 2 (2.5G)
Size 130×130×60mm
Vol 1.01L
HP

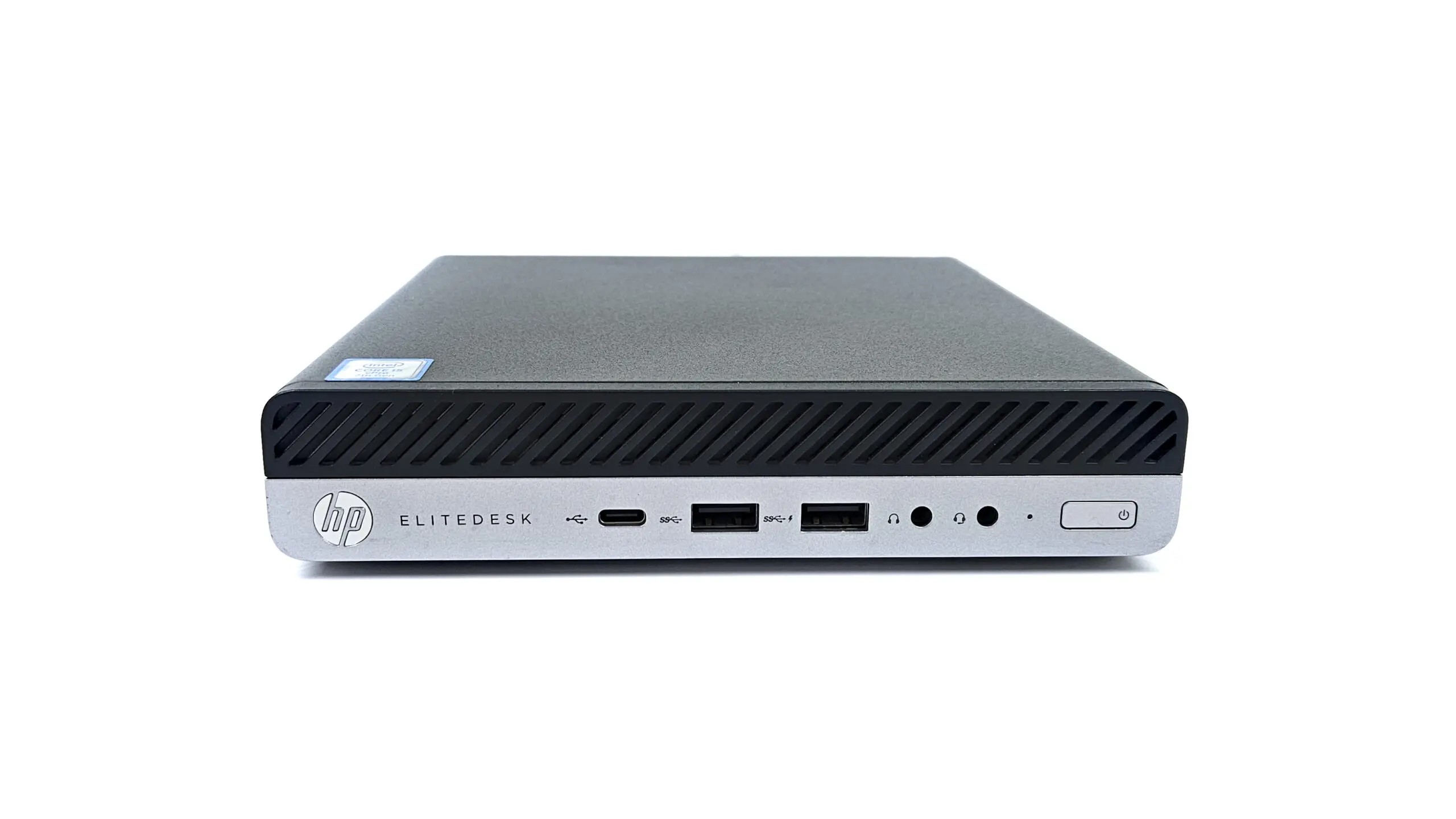

Elitedesk 800 G3
