ECS Elitegroup
LIVA Z5 Plus 1315U
CPU i3 1315U
GPU Iris Xe 64EU
Max RAM 64GB
Drives 1
The ECS Elitegroup LIVA Z5 Plus 1315U is a mini PC powered by the Intel i3 1315U (13th gen). It features 2 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 64EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 148 × 120 × 38mm (0.67L).
CPU & Performance
CPUi3 1315U
Generation13th
P-Cores2
Threads8
Single-core69
Multi-core18
Socket0
GPU
GPUIris Xe 64EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen4 x41
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays4
Network
Max Ethernet2G
2.5G ports2
Physical
Dimensions148 × 120 × 38 mm
Volume0.67L
Power
PSU90W
Discover More
Minisforum
UH185/X7 Ti 7900XTX
$1,750
Minisforum UH185/X7 Ti 7900XTX features Intel U9 185H, 96GB RAM, offering 5G Ethernet and OCuLink.
CPU Intel U9 185H
Cores / Threads 6 / 22
Socket Soldered
GPU AMD 7900XTX
RAM 96GB / 2slots
Speed 5600 MT/s
Drives 3 (2 NVMe)
Ethernet 2 (5G)
Size 290×225×152mm
Vol 9.92L

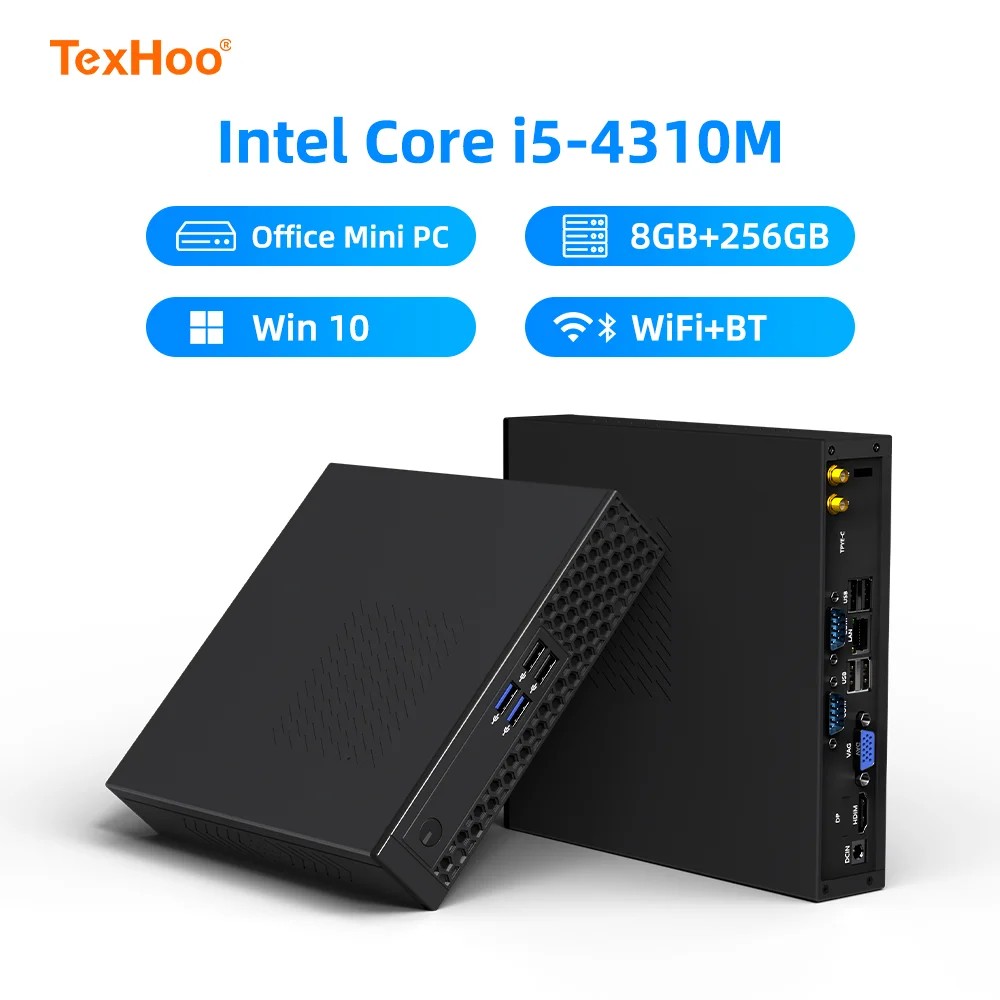

TEXHOO
