ECS Elitegroup
LIVA Z5 Plus 1345U
CPU i5 1345U
GPU Iris Xe 80EU
Max RAM 64GB
Drives 1
The ECS Elitegroup LIVA Z5 Plus 1345U is a mini PC powered by the Intel i5 1345U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 148 × 120 × 38mm (0.67L).
CPU & Performance
CPUi5 1345U
Generation13th
P-Cores2
Threads12
Single-core68
Multi-core22
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen4 x41
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays4
Network
Max Ethernet2G
2.5G ports2
Physical
Dimensions148 × 120 × 38 mm
Volume0.67L
Power
PSU90W
Discover More
Apple
Mac mini M4 16GB 500GB
$570
Apple Mac mini M4 16GB 500GB features Apple ARM M4 10 Core, 16GB RAM, offering USB4 and compact 0.81L design.
CPU Apple ARM M4 10 Core
Cores / Threads 4 / 10
Socket Soldered
GPU Apple M4 10-core
RAM 16GB
Speed 7500 MT/s
Ethernet 1 (1G)
PSU Custom
Size 127×127×50mm
Vol 0.81L
HERK
Orion1 MX
$370
HERK Orion1 MX features AMD r7 7840HS, 32GB RAM, offering 2× 2.5G Ethernet and USB4.
CPU AMD r7 7840HS
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M
RAM 32GB / 2slots
Speed 5600 MT/s
Drives 2 (1 NVMe)
Ethernet 2 (2.5G)
PSU Brick
Size 168×109×49mm
Vol 0.9L
Asrock

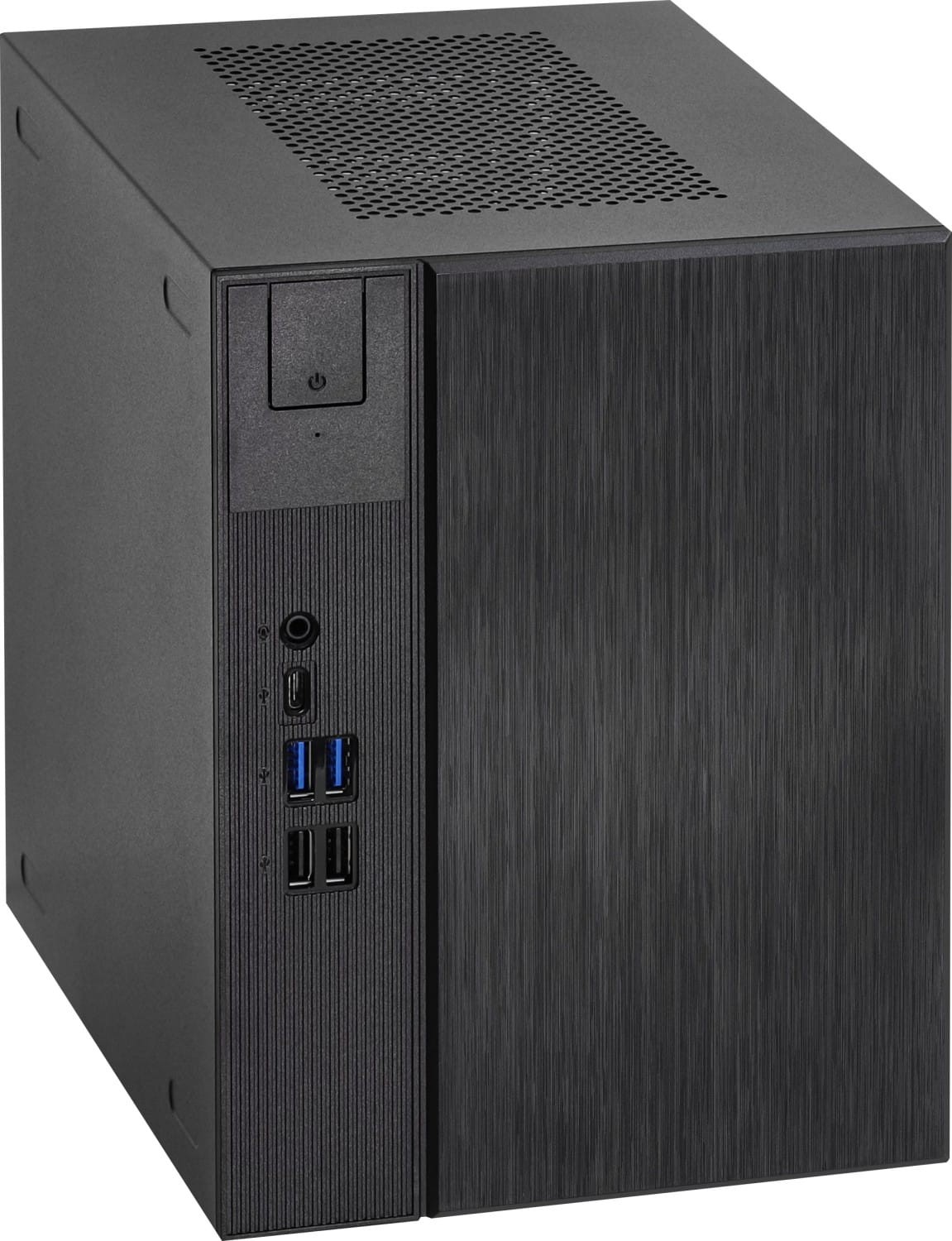

DeskMeet X300 5700X 4060 Ti
