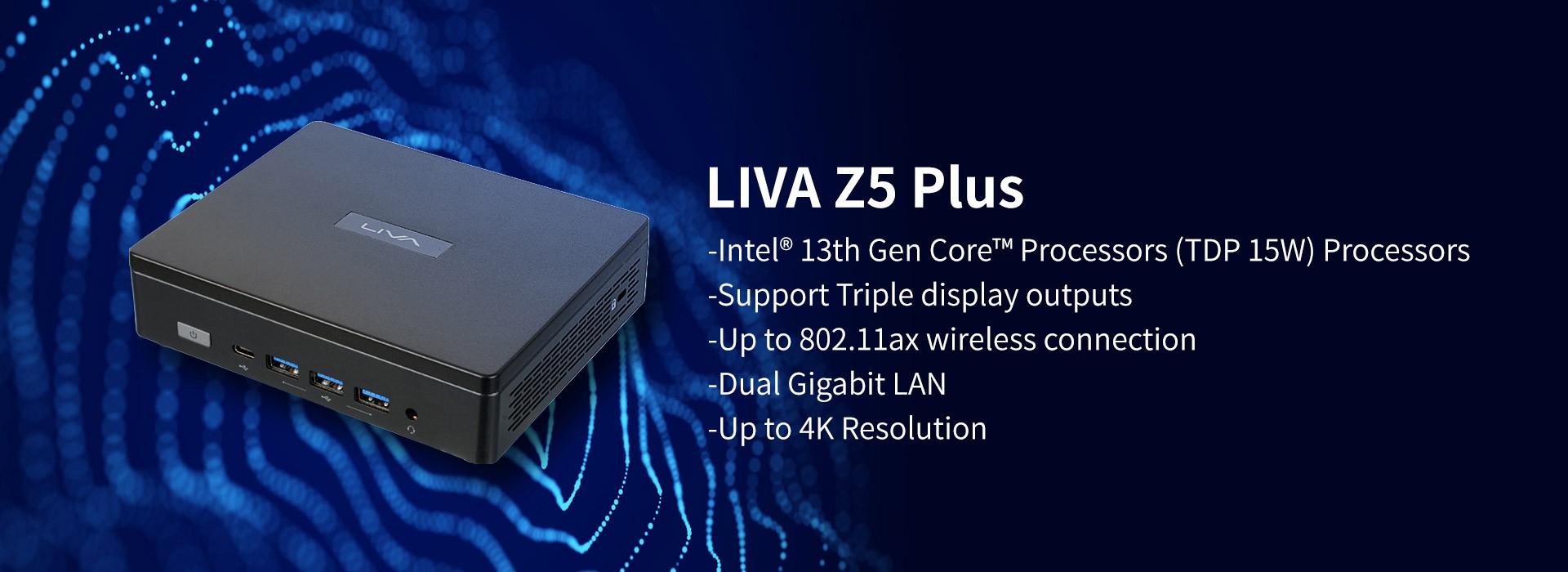

ECS Elitegroup
LIVA Z5 Plus 1365U
CPU i7 1365U
GPU Iris Xe 96EU
Max RAM 64GB
Drives 1
The ECS Elitegroup LIVA Z5 Plus 1365U is a mini PC powered by the Intel i7 1365U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 96EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 148 × 120 × 38mm (0.67L).
CPU & Performance
CPUi7 1365U
Generation13th
P-Cores2
Threads12
Single-core70
Multi-core22
Socket0
GPU
GPUIris Xe 96EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen4 x41
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays4
Network
Max Ethernet2G
2.5G ports2
Physical
Dimensions148 × 120 × 38 mm
Volume0.67L
Power
PSU90W
Discover More
MSI
Cubi NUC 1M 120U
$500
MSI Cubi NUC 1M 120U features Intel i5 120U, 64GB RAM, offering 2× 2.5G Ethernet and USB4.
CPU Intel i5 120U
Cores / Threads 2 / 12
Socket Soldered
GPU Intel Iris Xe 80EU
RAM 64GB / 2slots
Speed 5200 MT/s
Drives 4 (2 NVMe)
SATA 1×2.5"
Ethernet 2 (2.5G)
PSU Brick
Size 136×133×50mm
Vol 0.9L

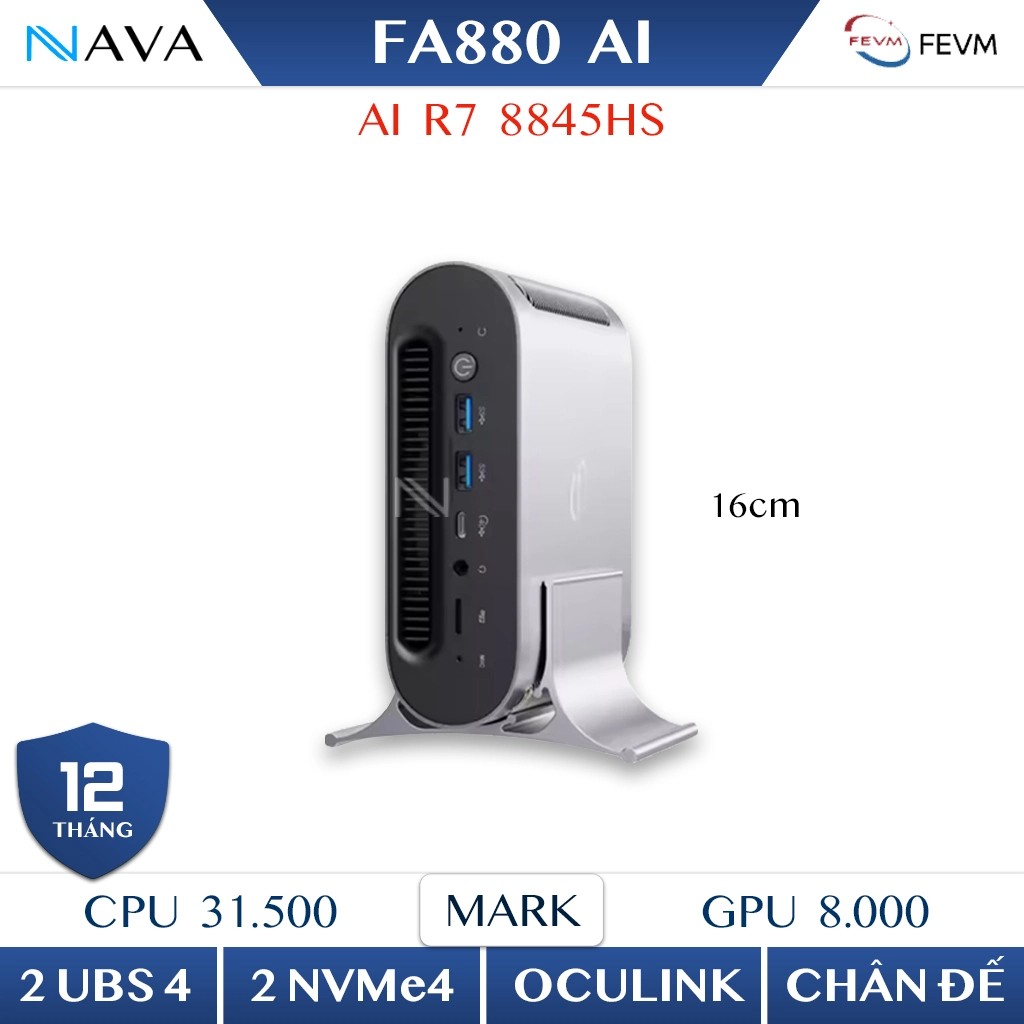

FEVM
