Mini PC DataBase

Framework Mainboard 13 i5-1240P

Framework

Mainboard 13 i5-1240P

CPU i5 1240P

GPU Iris Xe 80EU

Max RAM 64GB

Drives 1

From $430

Seller Framework

The Framework Mainboard 13 i5-1240P is a mini PC powered by the Intel i5 1240P (12th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Connectivity includes USB4 40Gbps. Dimensions: 230 × 105 × 10mm (0.24L). Uses a GaN PSU (100W), 28W TDP.

CPU & Performance

CPUi5 1240P

Generation12th

P-Cores4

Threads16

Single-core65

Multi-core25

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives1

NVMe slots1

Gen4 x41

SD cardNo

Ports & Connectivity

USB4 40Gbps4

Max displays4

Network

vProN

Physical

Dimensions230 × 105 × 10 mm

Volume0.24L

Fan size65mm

Warranty1 yr

Power

TDP28W

PSU typeGaN

PSU100W

Battery55Wh

Notes

Feb 1 2024: Adding $30 for 100W USBC PD GaN Charger. Nov 11: $450 to $400

Discover More

OrigiMagic C2 N150

C2 N150

OrigiMagic C2 N150 features Intel Celeron N150, 16GB RAM, offering ultra-compact 0.36L form factor.

CPU Intel Celeron N150

Cores / Threads – / 4

Socket Soldered

GPU Intel Iris Xe 24EU

Speed 4800 MT/s

Drives 1 (1 NVMe)

Ethernet 2 (1G)

Size 90×90×44mm

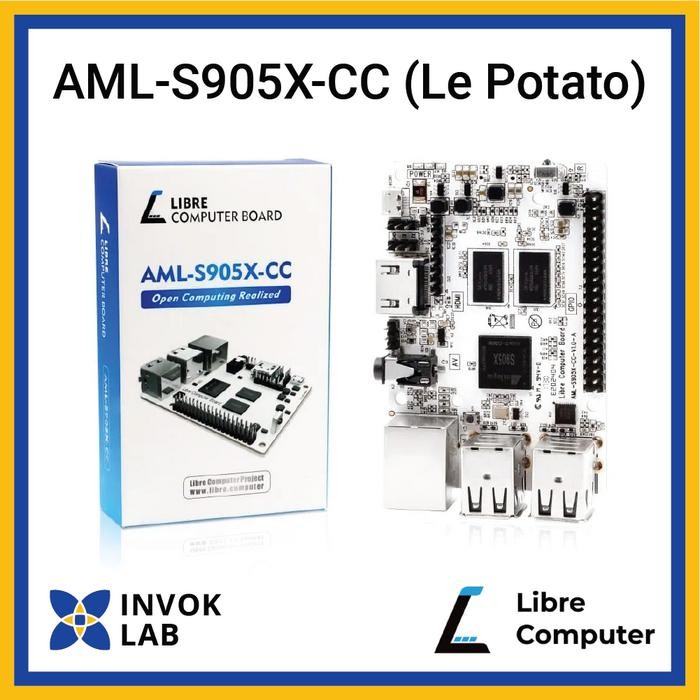

Libre AML-S905X-CC (Le Potato) 1GB
