Framework
Mainboard 16 r7-7940HS
CPU r9 7940HS
GPU RDNA3 780M
Max RAM 64GB
Drives 1
From $980
Seller Framework
The Framework Mainboard 16 r7-7940HS is a mini PC powered by the AMD r9 7940HS (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA3 780M. Supports up to 64GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Connectivity includes USB4 40Gbps. Dimensions: 240 × 105 × 10mm (0.25L). Uses a GaN PSU (100W), 15W TDP.
CPU & Performance
CPUr9 7940HS
GenerationZen 4
P-Cores8
Threads16
Single-core77
Multi-core44
Socket0
GPU
GPURDNA3 780M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
iGPU FP324300
RAM
Max RAM64GB
RAM slots2
Max speed5600 MT/s
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen4 x41
SD cardNo
Ports & Connectivity
USB4 40Gbps4
Max displays4
Network
vProN
Physical
Dimensions240 × 105 × 10 mm
Volume0.25L
Fan size65mm
Warranty1 yr
Power
TDP15W
PSU typeGaN
PSU100W
Battery85Wh
Notes
Feb 1 2024: Adding $30 for 100W USBC PD GaN Charger.
Discover More
CWWK/Topton
1135G7 6 NIC
CWWK/Topton 1135G7 6 NIC features Intel i5 1135G7.
CPU Intel i5 1135G7
Cores / Threads 4 / 8
Socket Soldered
GPU Intel Iris Xe 80EU
Ethernet 6 (1G)

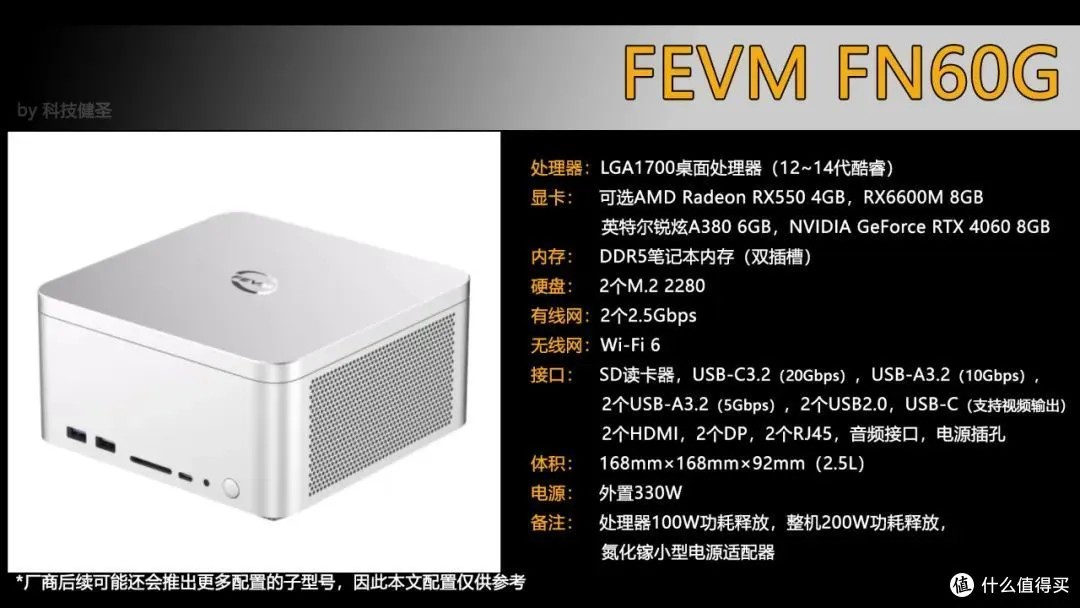

FEVM
