GMKtec NucBox 9 / KB9

GMKtec

NucBox 9 / KB9

CPU r5 5600U

GPU Vega 7

Max RAM 64GB

Drives 2

From $385

Seller Aliexpress

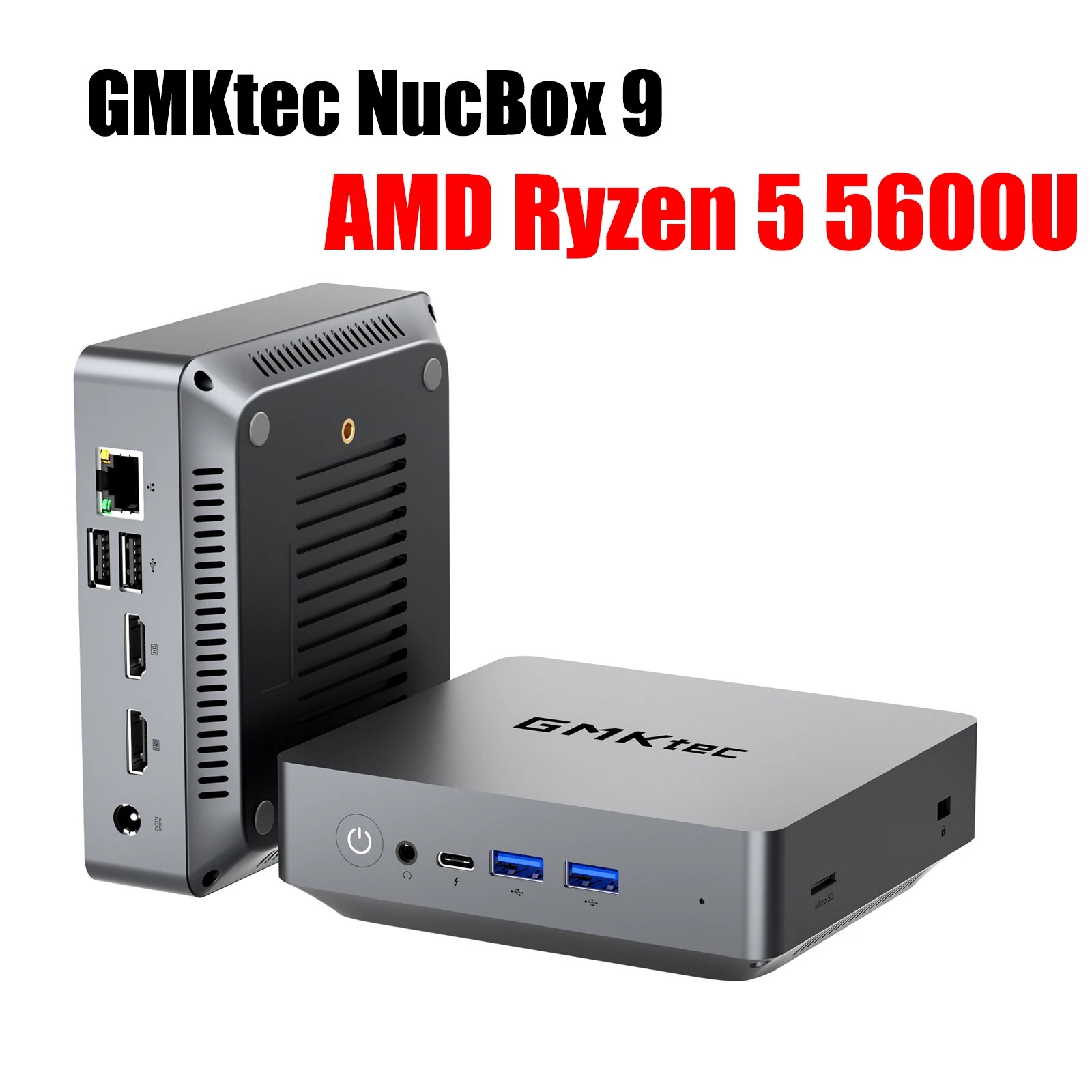

The GMKtec NucBox 9 / KB9 is a mini PC powered by the AMD r5 5600U (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 124 × 112 × 41mm (0.57L). Uses a GaN PSU (65W), 15W TDP.

CPU & Performance

CPUr5 5600U

GenerationZen 3

P-Cores6

Threads12

Single-core58

Multi-core23

Socket0

GPU

GPUVega 7

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen3 x41

SD cardYes

Ports & Connectivity

Max displays3

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions124 × 112 × 41 mm

Volume0.57L

Fan size80mm

Warranty1 yr

Power

TDP15W

PSU typeGaN

PSU65W

Pricing

16GB / 512GB$385

Notes

Feb 5 2024: $150 to $305 out of stock on amazon. Oct: $240 to $150. June 11: reviewing front usb c pd port if it supports pd in and alt mode
