Mini PC DataBase

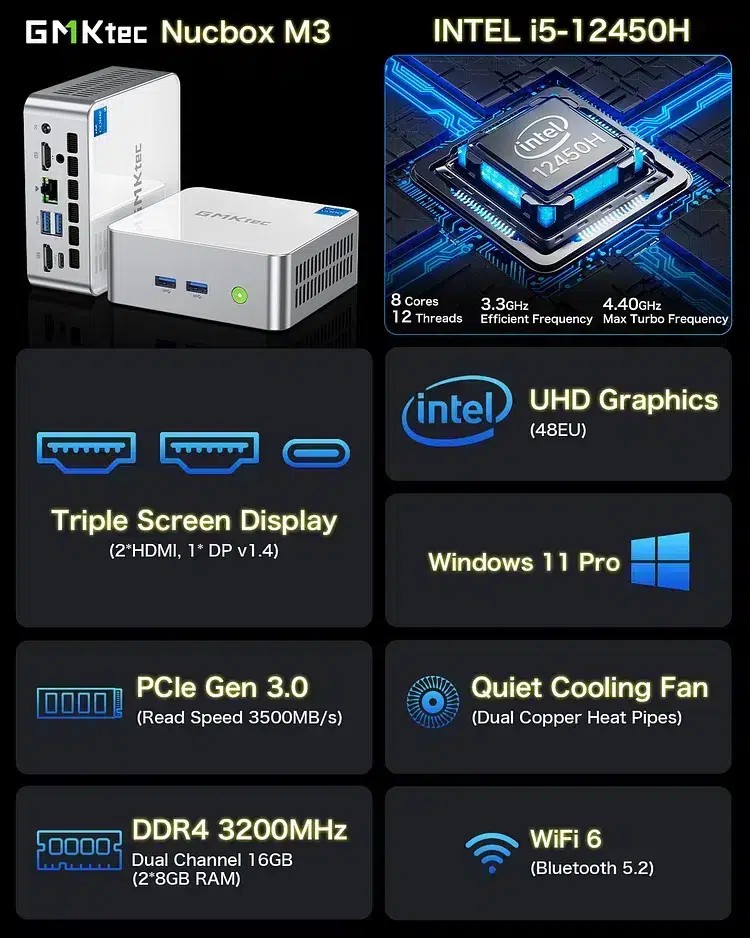

GMKtec NucBox M3

GMKtec

NucBox M3

CPU i5 12450H

GPU Intel UHD Xe 48EU

Max RAM 64GB

Drives 2

From $265

Seller Amazon

The GMKtec NucBox M3 is a mini PC powered by the Intel i5 12450H (12th gen). It features 4 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD Xe 48EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 114 × 106 × 42mm (0.51L). Uses a Brick PSU (120W), 45W TDP.

CPU & Performance

CPUi5 12450H

Generation12th

P-Cores4

Threads12

Single-core67

Multi-core25

Socket0

GPU

GPUIntel UHD Xe 48EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions114 × 106 × 42 mm

Volume0.51L

Fan size60mm

Warranty1 yr

Power

TDP45W

PSU typeBrick

PSU120W

Pricing

Minimum$400

Barebone est.$265

16GB / 512GB$400

Notes

Mar 23 2025: $270 to $236. Oct 28: NVMe port is PCIe x2 instead of x4

Discover More

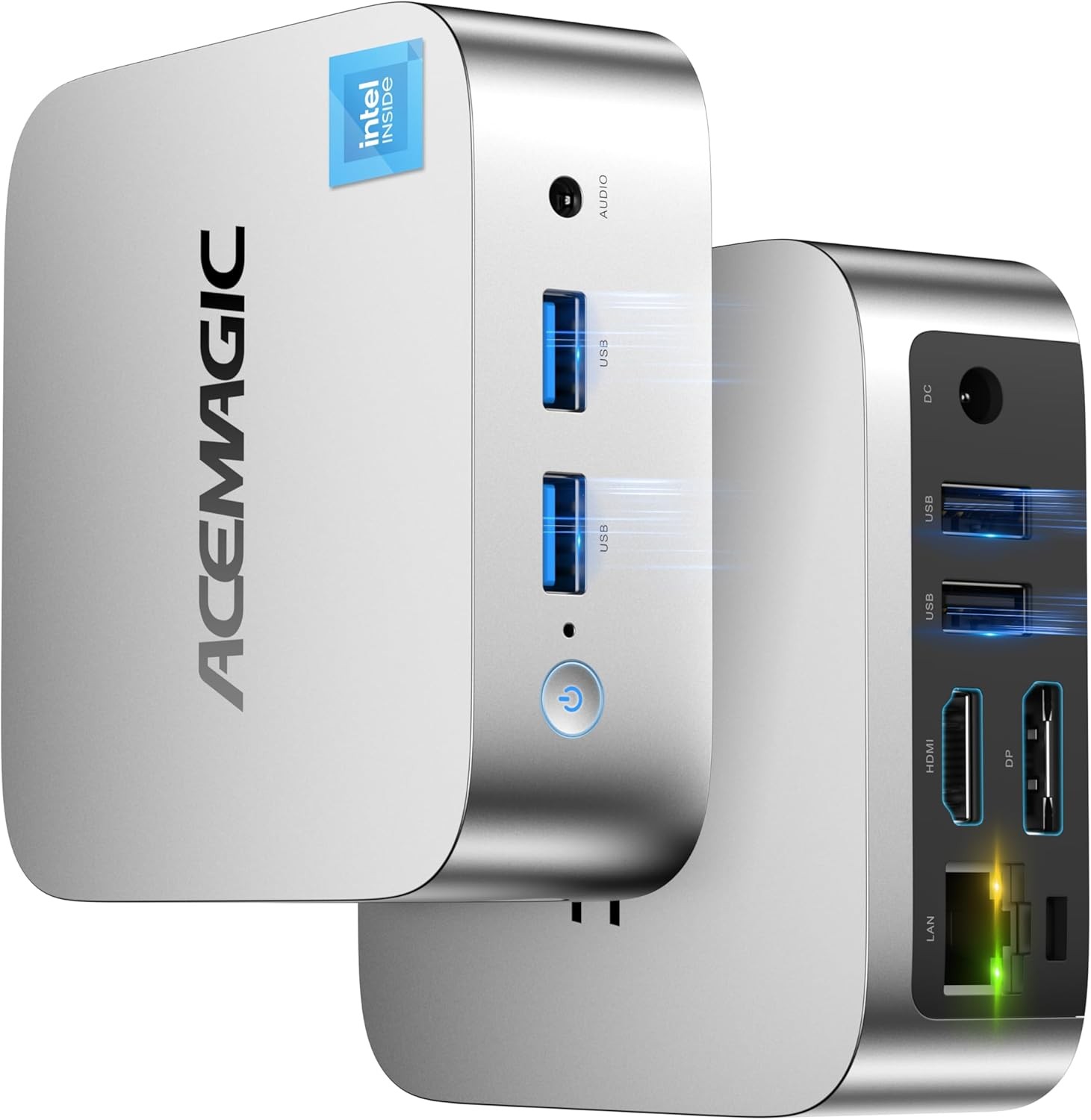

AceMagic Vista V1 N95
