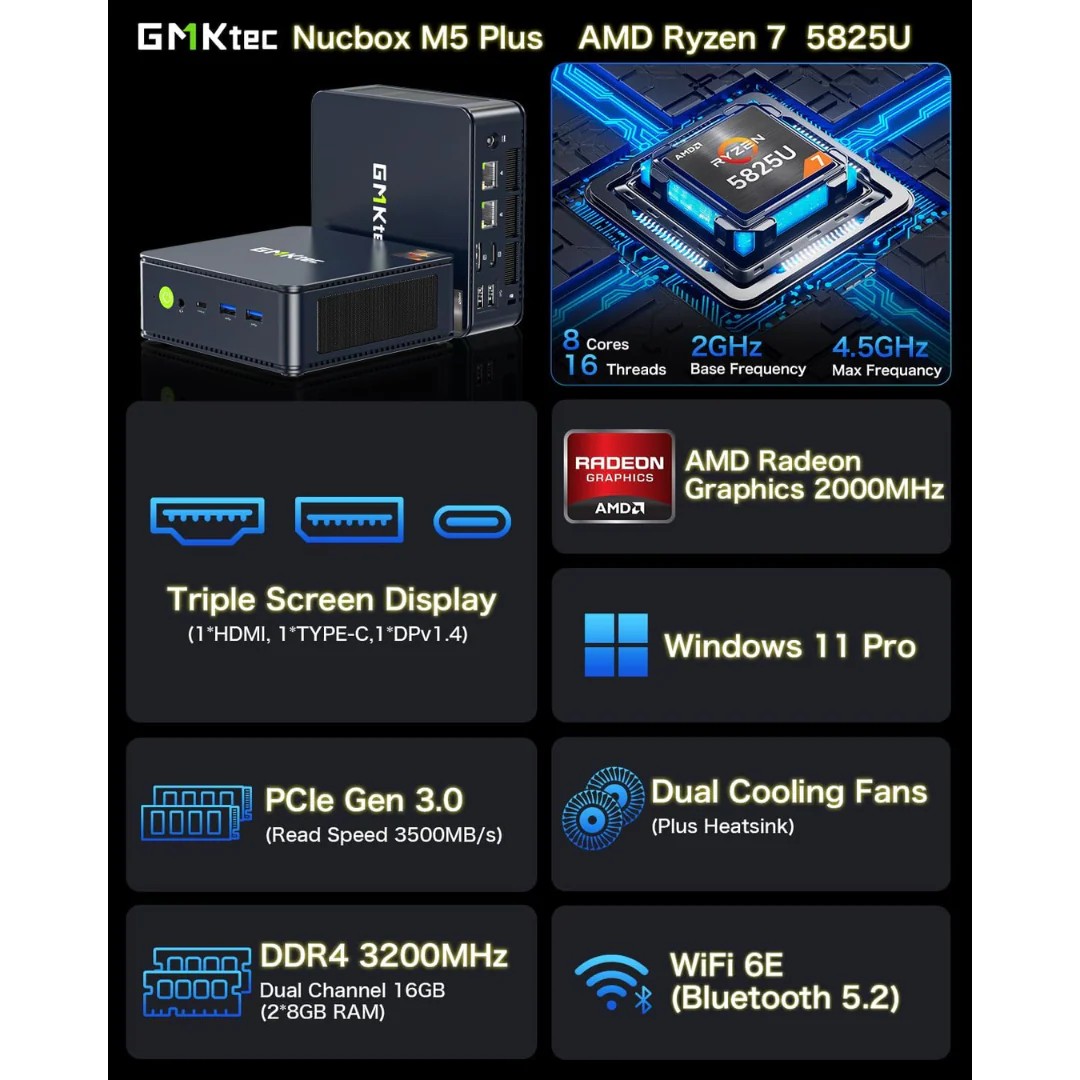

GMKtec
NucBox M5 Plus
CPU r7 5825U
GPU Vega 8
Max RAM 64GB
Drives 2
From $160
Seller Amazon
The GMKtec NucBox M5 Plus is a mini PC powered by the AMD r7 5825U (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 128 × 127 × 48mm (0.78L). Uses a GaN PSU (65W), 15W TDP.
CPU & Performance
CPUr7 5825U
GenerationZen 3
P-Cores8
Threads16
Single-core61
Multi-core27
Socket0
GPU
GPUVega 8
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen3 x42
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions128 × 127 × 48 mm
Volume0.78L
Fan size70mm
Warranty1 yr
Power
TDP15W
PSU typeGaN
PSU65W
Pricing
Minimum$460
Barebone est.$160
32GB / 1TB$460
Notes
Oct 8 2024: Barebones sold on Aliexpress. Amazon 32GB 1TB build is cheaper than aliexpress at the time of writing
Discover More

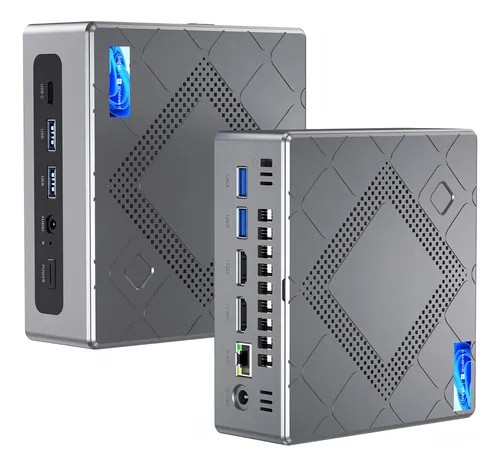

CTONE
CK10-C
$300
CTONE CK10-C features Intel i7 10710U, 64GB RAM, offering compact 0.89L design.
CPU Intel i7 10710U
Cores / Threads 6 / 12
Socket Soldered
GPU Intel Intel UHD 620
RAM 64GB / 2slots
Speed 2666 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
Size 137×127×51mm
Vol 0.89L

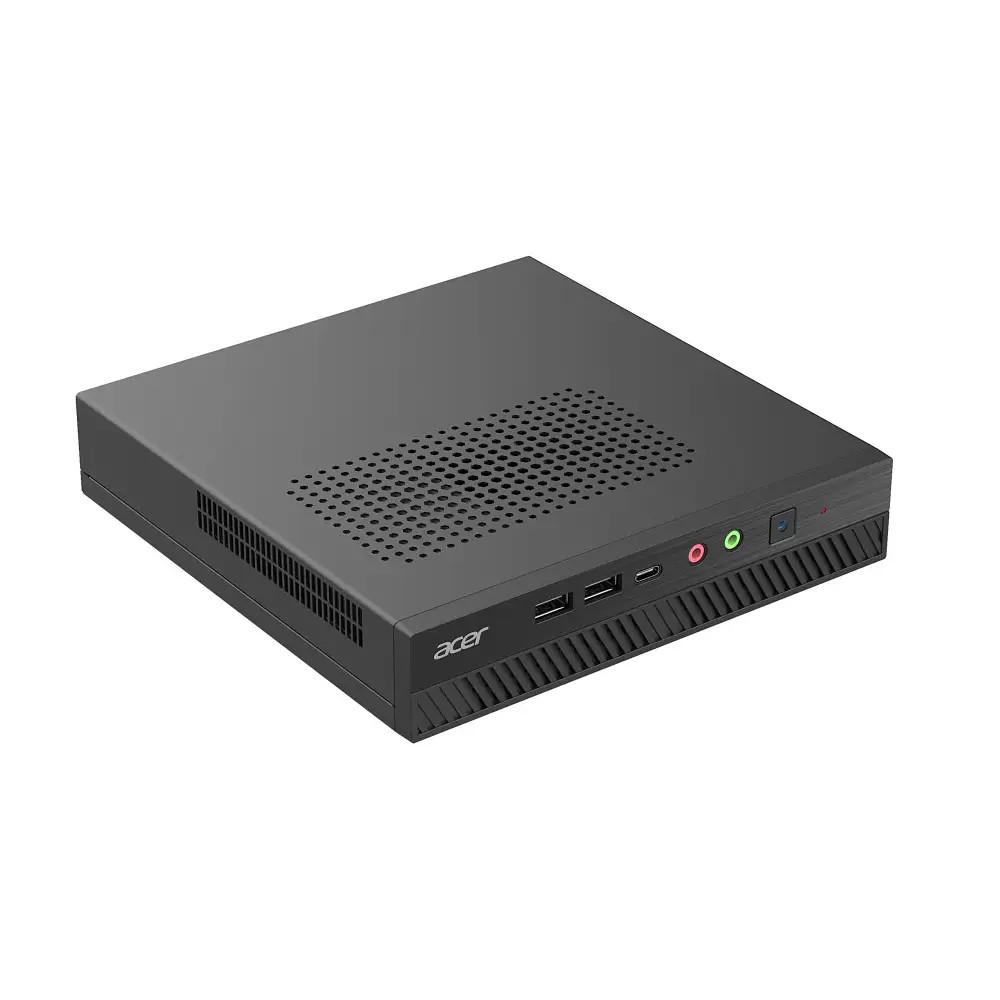

Acer
Veriton 4000
Acer Veriton 4000.
Intel

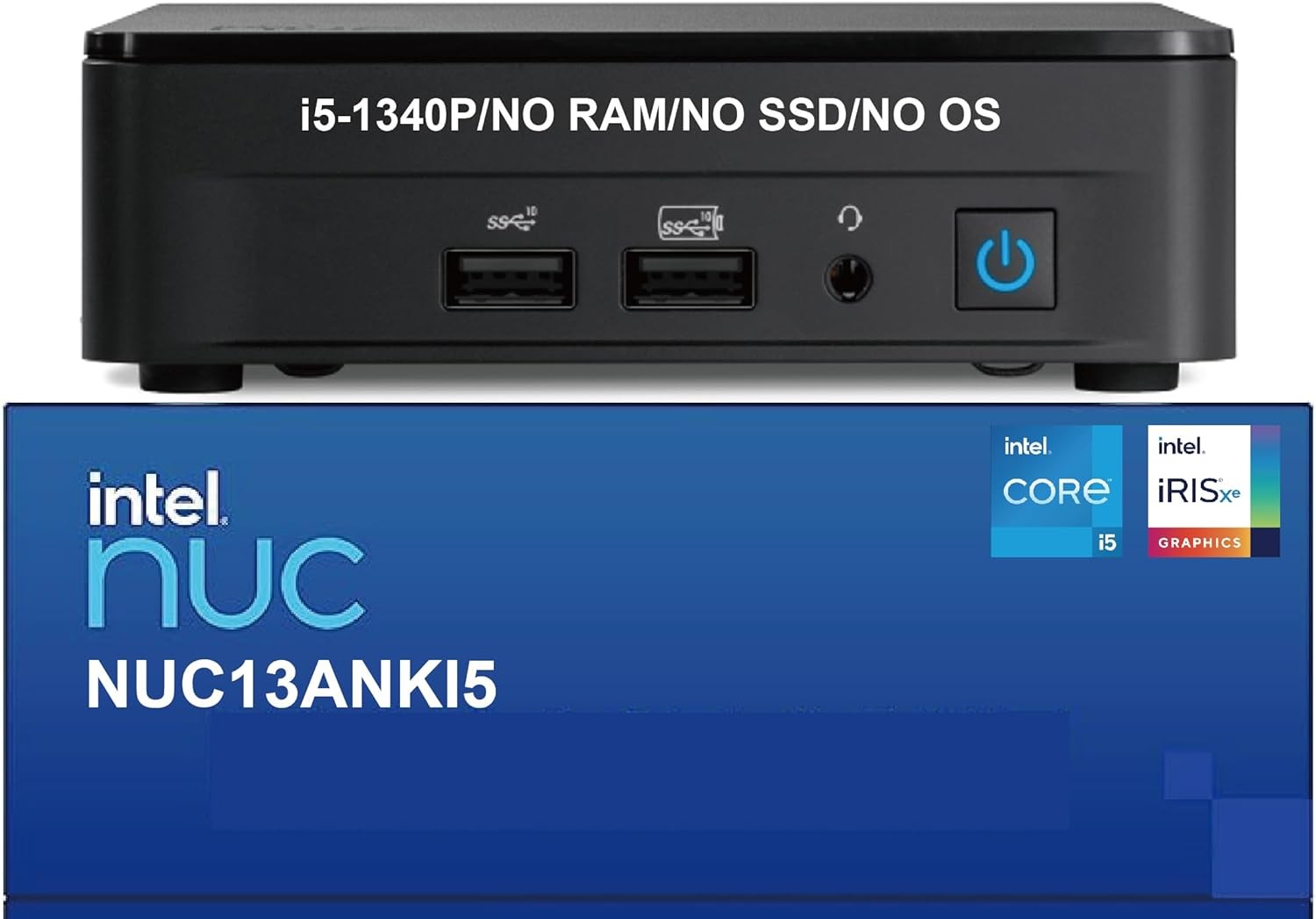

NUC Pro NUC13ANKi5
