Mini PC DataBase

GMKtec Nucbox K11 6700XT

GMKtec

Nucbox K11 6700XT

CPU r7 8945HS/7940HS

GPU 6700XT

Max RAM 96GB

Drives 2

From $840

Seller Amazon

The GMKtec Nucbox K11 6700XT is a mini PC powered by the AMD r7 8945HS/7940HS (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD 6700XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 290 × 225 × 152mm (9.92L). Uses a Brick PSU (120W), 70W TDP.

CPU & Performance

CPUr7 8945HS/7940HS

GenerationZen 4

P-Cores8

Threads16

Single-core77

Multi-core46

Socket0

GPU

GPU6700XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen4 x42

SD cardNo

Ports & Connectivity

HDMI 2.12

DP 1.43

USB4 40Gbps2

OCuLinkYes

Max displays8

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions290 × 225 × 152 mm

Volume9.92L

Fan size90mm

Warranty1 yr

Power

TDP70W

PSU typeBrick

PSU120W

Pricing

Minimum$1,270

Barebone est.$840

32GB / 1TB$1,270

64GB / 1TB$1,540

Notes

Minisforum DEG1 eGPU. Feb 12 2025: microphone https://www.reddit.com/r/MiniPCs/s/IG31DU7150. Feb 7 2025: DO NOT BUY, HIDDEN MICROPHONE RISK.

Discover More

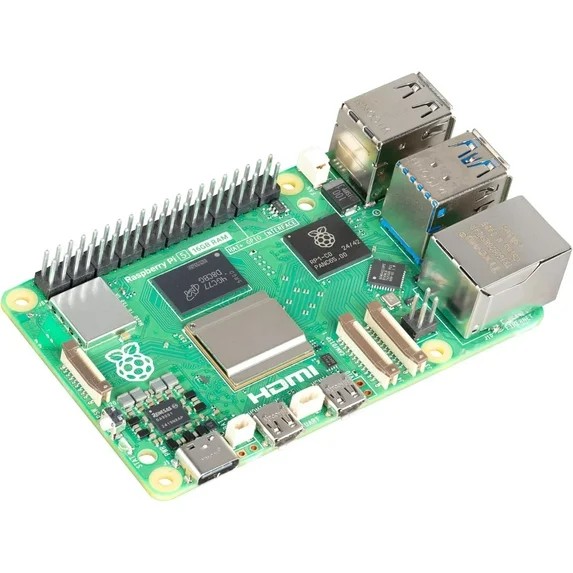

Raspberry Pi Pi 5 16GB

Pi 5 16GB

Raspberry Pi Pi 5 16GB features ARM ARM BCM2712, 16GB RAM, offering ultra-compact 0.10L form factor.

CPU ARM ARM BCM2712

Cores / Threads 4 / 4

Socket Soldered

GPU ARM VideoCore VII

Speed 3200 MT/s

Ethernet 1 (1G)

Size 86×57×21mm

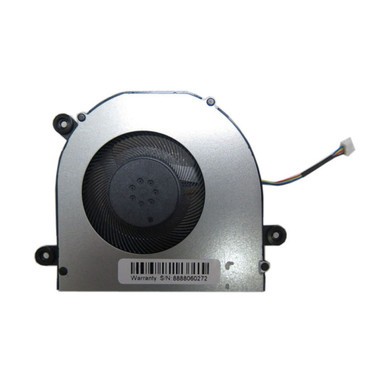

Geekom A8 8845HS Fan Mod

A8 8845HS Fan Mod

Geekom A8 8845HS Fan Mod features AMD r7 8845HS/7840HS, 64GB RAM, offering USB4 and compact 0.63L design.

CPU AMD r7 8845HS/7840HS

Cores / Threads 8 / 16

Socket Soldered

GPU AMD RDNA3 780M

RAM 64GB / 2slots

Speed 5600 MT/s

Drives 2 (1 NVMe)

Ethernet 1 (2.5G)

Size 112×112×50mm

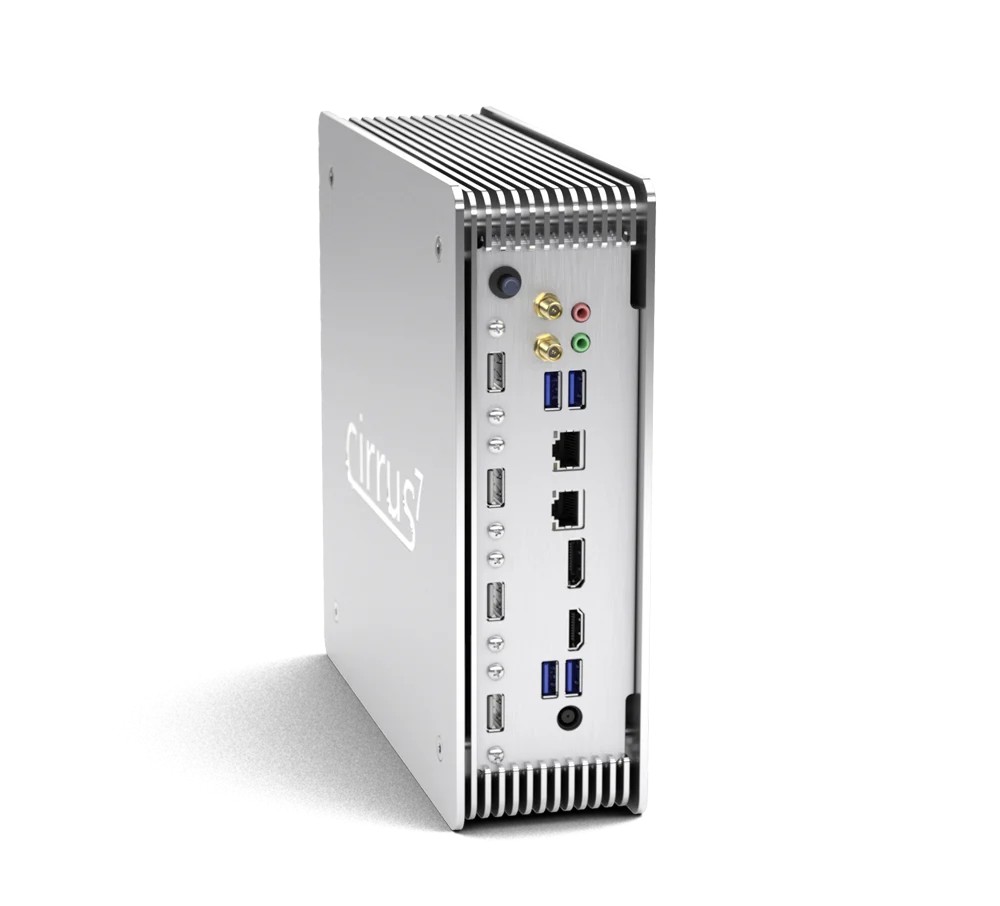

Cirrus 7 Nimbus Z790M 14500T
