Mini PC DataBase

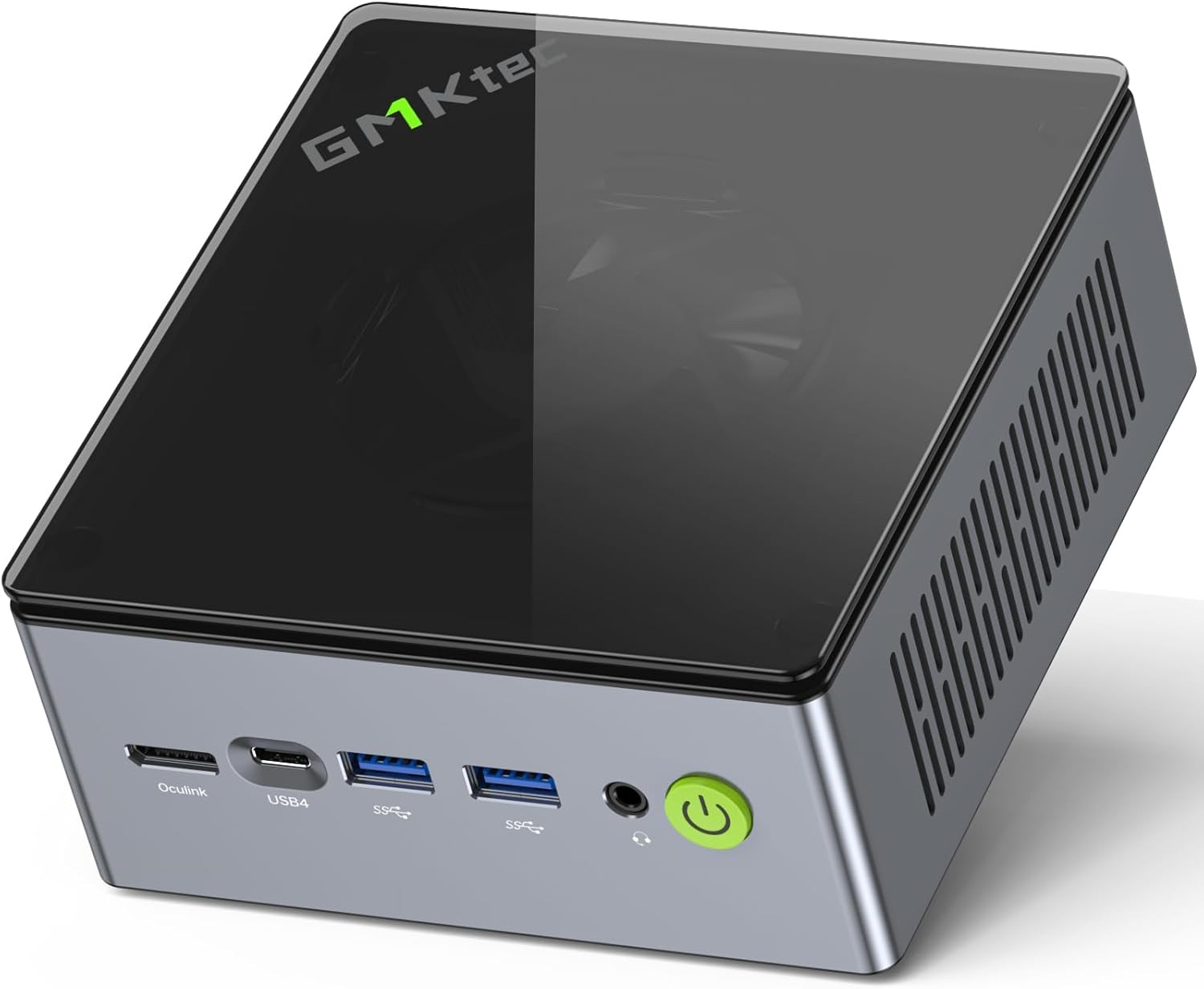

GMKtec Nucbox M7 7800XT

GMKtec

Nucbox M7 7800XT

CPU r7 6850H

GPU 7800XT

Max RAM 96GB

Drives 2

From $790

Seller Amazon

The GMKtec Nucbox M7 7800XT is a mini PC powered by the AMD r7 6850H (Zen 3+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD 7800XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 290 × 225 × 152mm (9.92L). Uses a Brick PSU (120W), 45W TDP.

CPU & Performance

CPUr7 6850H

GenerationZen 3+

P-Cores8

Threads16

Single-core65

Multi-core34

Socket0

GPU

GPU7800XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM96GB

RAM slots2

Max speed4800 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen4 x41

Gen3 x41

SD cardNo

Ports & Connectivity

HDMI 2.12

DP 1.43

USB4 40Gbps2

OCuLinkYes

Max displays8

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions290 × 225 × 152 mm

Volume9.92L

Fan size90mm

Warranty1 yr

Power

TDP45W

PSU typeBrick

PSU120W

Pricing

Minimum$1,170

Barebone est.$790

Notes

Minisforum DEG1 eGPU. Feb 16 2025: microphone https://www.reddit.com/r/MiniPCs/s/IG31DU7150.

Discover More

Minisforum UM790 XTX

UM790 XTX

Minisforum UM790 XTX features AMD r9 7940HS, 96GB RAM, offering 2× 2.5G Ethernet and OCuLink.

CPU AMD r9 7940HS

Cores / Threads 8 / 16

Socket Soldered

GPU AMD RDNA3 780M

RAM 96GB / 2slots

Speed 5600 MT/s

Drives 2 (2 NVMe)

Ethernet 2 (2.5G)

Size 130×126×52mm

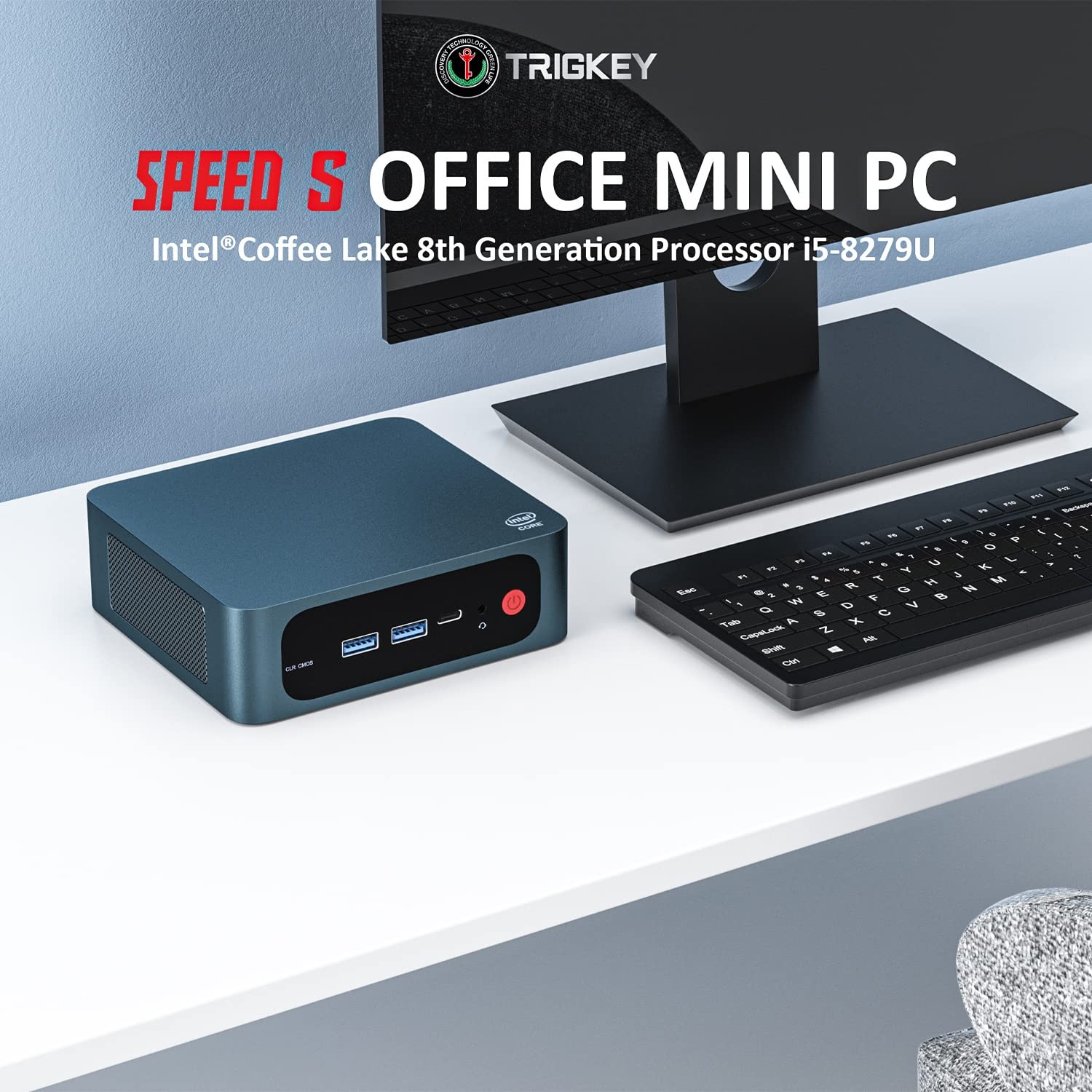

Trigkey Speed S8

Speed S8

Trigkey Speed S8 features Intel i5 8279U, 32GB RAM, offering compact 0.60L design.

CPU Intel i5 8279U

Cores / Threads 4 / 8

Socket Soldered

GPU Intel Iris Plus 655

RAM 32GB / 2slots

Speed 2400 MT/s

Drives 2 (1 NVMe)

Ethernet 1 (1G)

Size 126×113×42mm

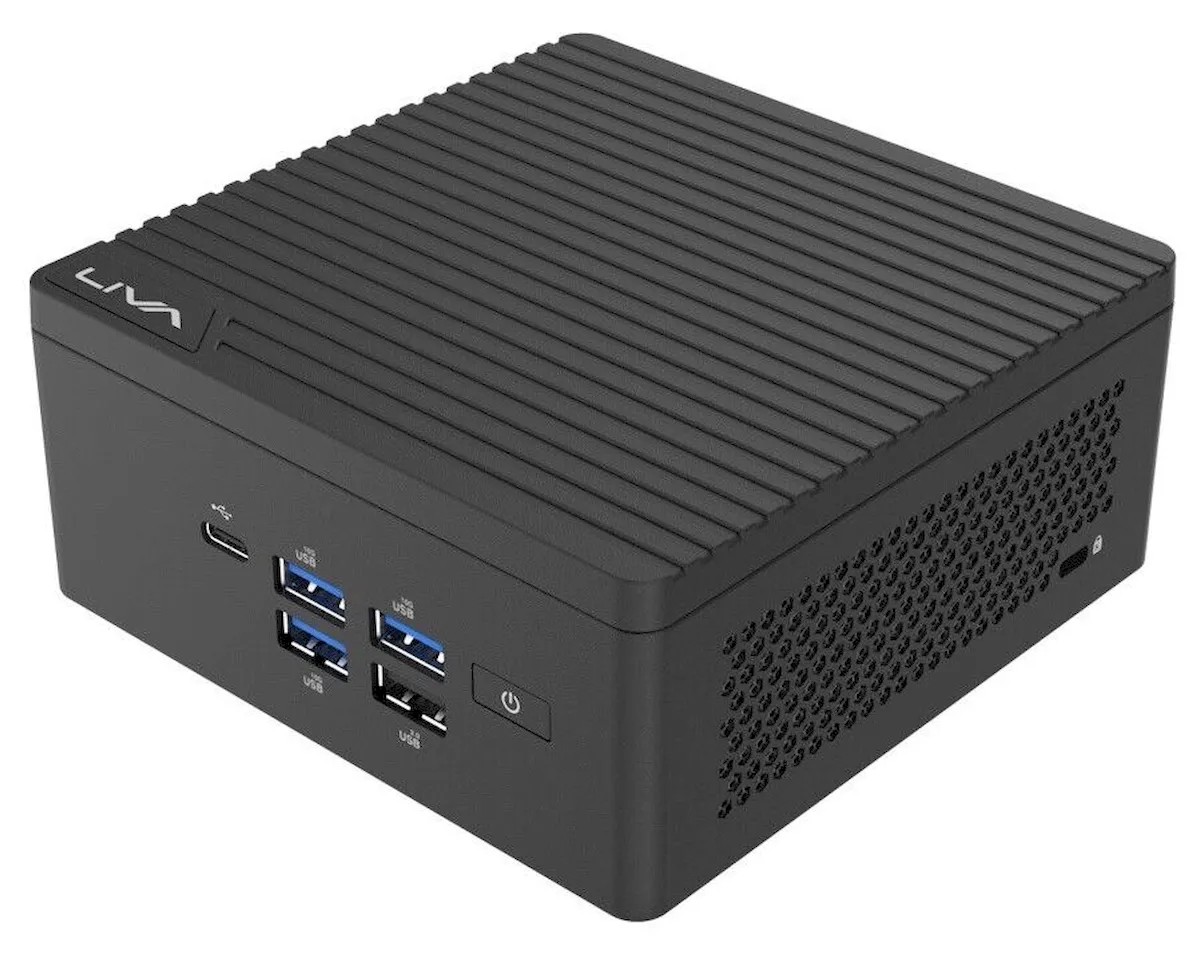

ECS Elitegroup LIVA Z7 Plus 155H
