A7 7940HS
The Geekom A7 7940HS is a mini PC powered by the AMD r9 7940HS (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA3 780M. Supports up to 64GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 1 NVMe. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 112 × 112 × 37mm (0.46L). Uses a GaN/Brick PSU (120W), 45W TDP.
CPU & Performance
GPU
RAM
Storage
Ports & Connectivity
Network
Physical
Power
Notes
Oct 8 2024: $595 to $431. Oct 3 2024: Add 40mm fan mod to stop thermal throttling RAM https://www.thingiverse.com/thing:6784945. May 26 2024: $525 to $560, USB4 is half bandwidth 8k 30hz instead of 8k 60hz. Mar 2 2024: Robtech and Team Parody review found thermal throttling at 95-100C. Wifi performance is poor. $600 to $525. Feb 18 2024: Could not find 2.5" drive mount instructions or spec. there is a metal heat spreader for the ssd
Discover More
LLM2v7CYF
Simply NUC LLM2v7CYF features AMD r7 V2718.

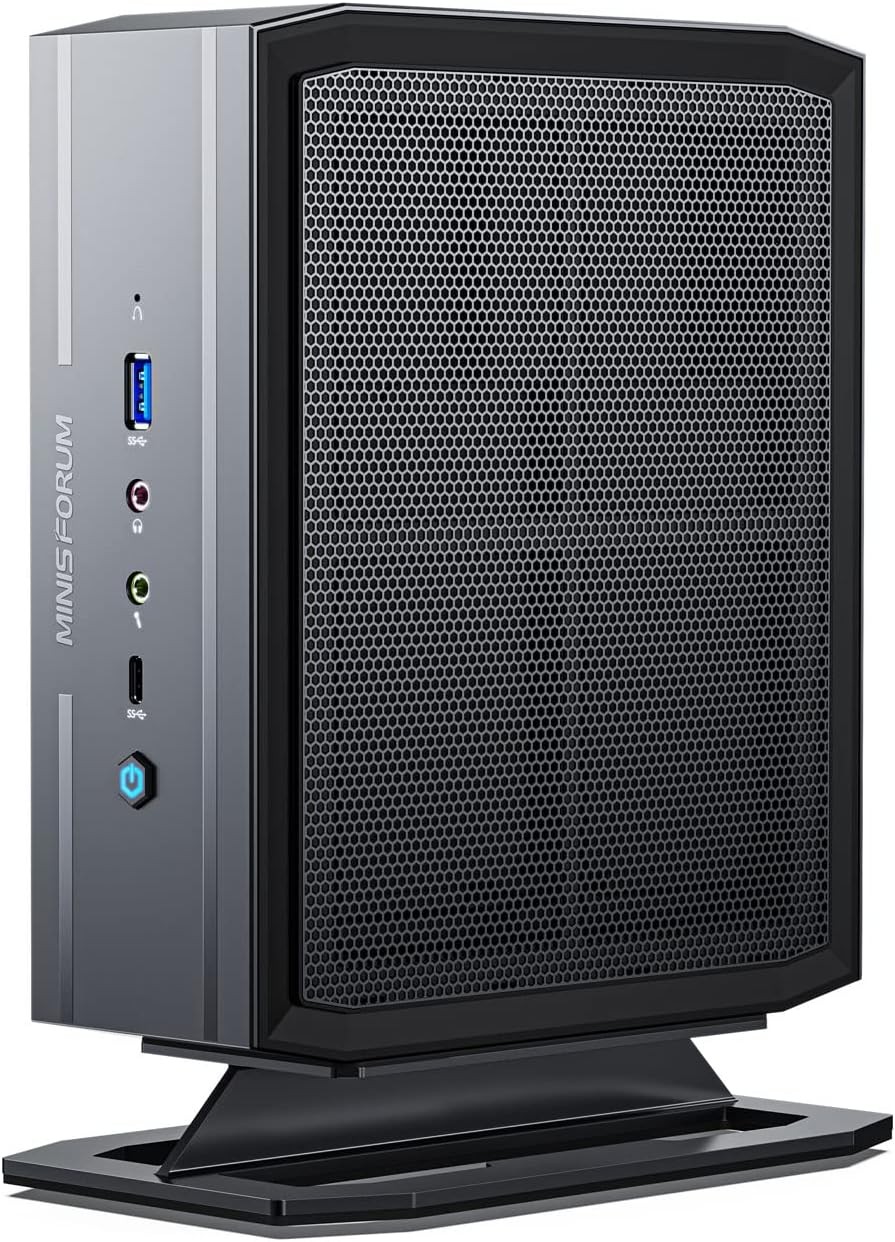

UN1270
