GenMachine

Ren5000 / D6 5600H

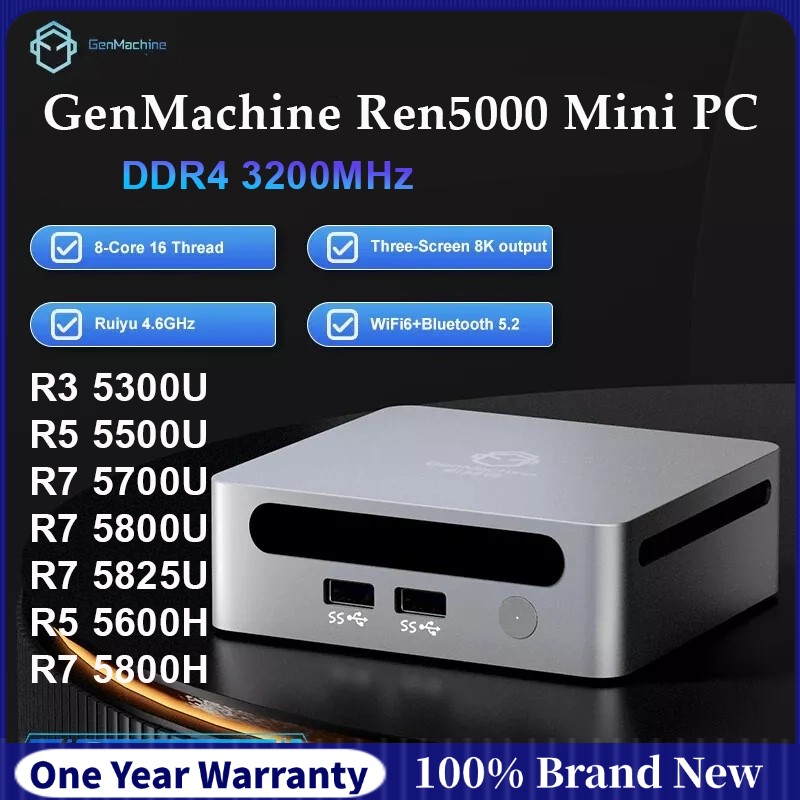

Name: GenMachine Ren5000 / D6 5600H
Brand: GenMachine

CPU r5 5600H

GPU Vega 7

Max RAM 64GB

Drives 2

From $250

Seller Amazon

The GenMachine Ren5000 / D6 5600H is a mini PC powered by the AMD r5 5600H (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 114 × 106 × 38mm (0.46L). Uses a Brick PSU (65W), 45W TDP.

CPU & Performance

CPUr5 5600H

GenerationZen 3

P-Cores6

Threads12

Single-core58

Multi-core25

Socket0

GPU

GPUVega 7

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen3 x42

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet1G

1G ports1

vProN

Physical

Dimensions114 × 106 × 38 mm

Volume0.46L

Fan size70mm

Power

TDP45W

PSU typeBrick

PSU65W

Pricing

16GB / 512GB$250

Notes

April 7 2024: Ships with single channel RAM. Cut plastic cover to fit second NVMe 2280 drive. My mistake thinking there was a 2.5" drive inside from sales pictures. White mini pc with black vents
