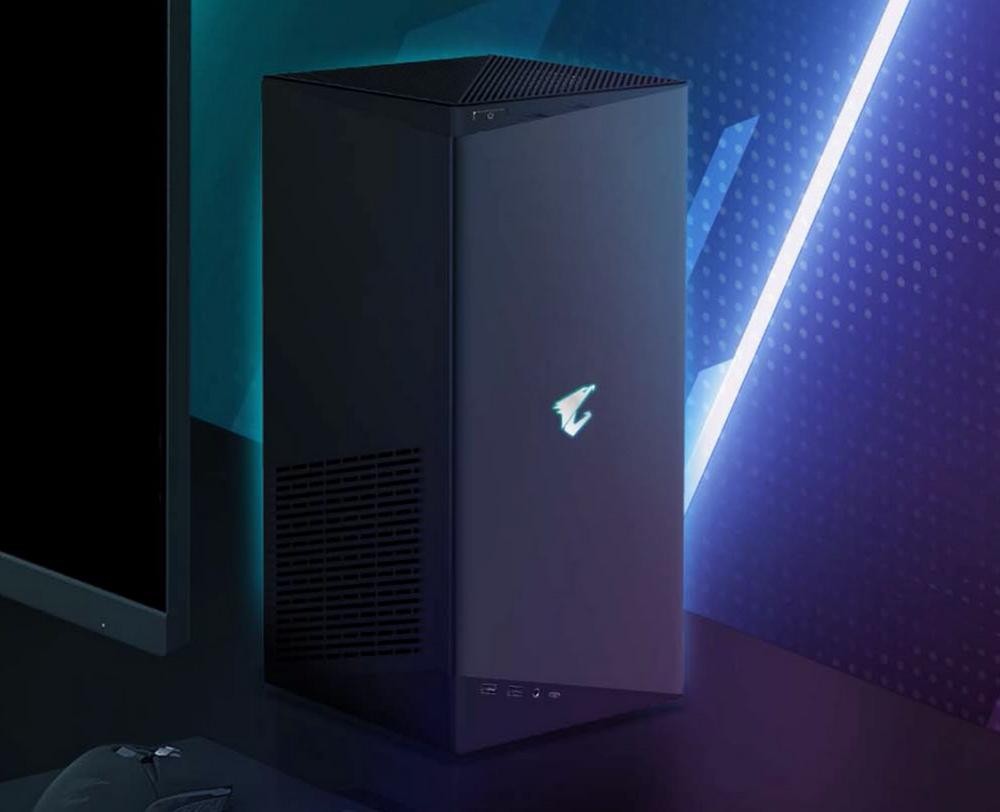

Gigabyte Aorus Model S 12th
Gigabyte

Aorus Model S 12th

CPU i7 12700K
GPU 3070 (Low VRAM)
Max RAM 64GB
Drives 2

The Gigabyte Aorus Model S 12th is a mini PC powered by the Intel i7 12700K (12th gen). It features 8 performance cores and 20 threads and a LGA1700 socket. Graphics are handled by the discrete NVIDIA 3070 (Low VRAM). Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 400 × 190 × 189mm (14.36L). Uses a SFX PSU (750W).

CPU & Performance

CPUi7 12700K
Generation12th
P-Cores8
Threads20
Single-core80
Multi-core51
SocketLGA1700

GPU

GPU3070 (Low VRAM)
Discrete GPUYes
Integrated GPUYes
eGPU supportNo

RAM

Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo

Storage

Max drives2
NVMe slots2
Gen4 x42
SD cardNo

Ports & Connectivity

HDMI 2.12
Max displays6

Network

Max Ethernet1G
2.5G ports1
vProN

Physical

Dimensions400 × 190 × 189 mm
Volume14.36L
Fan size140mm
Warranty1 yr

Power

PSU typeSFX
PSU750W
