Mini PC DataBase

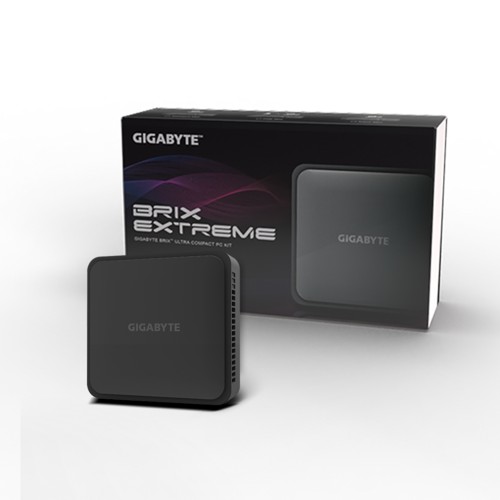

Gigabyte GB-BER5HS-7535

Gigabyte

GB-BER5HS-7535

CPU r5 7535U/6650U

GPU RDNA2 660M

Max RAM 64GB

Drives 3

The Gigabyte GB-BER5HS-7535 is a mini PC powered by the AMD r5 7535U/6650U (Zen 3+ gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 660M. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 124 × 120 × 49.7mm (0.74L). Uses a Brick PSU (135W), 28W TDP.

CPU & Performance

CPUr5 7535U/6650U

GenerationZen 3+

P-Cores6

Threads12

Single-core65

Multi-core26

Socket0

GPU

GPURDNA2 660M

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed4800 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots1

Gen4 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.12

USB4 40Gbps1

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions124 × 120 × 49.7 mm

Volume0.74L

Fan size80mm

Warranty1 yr

Power

TDP28W

PSU typeBrick

PSU135W

Notes

Aug 31: USB4 and HDMI 2.1 max 4k 60hz (half bandwidth 20gbps instead of 40gbps)
