Mini PC DataBase

Gigabyte GB-BER5H-7535

Gigabyte

GB-BER5H-7535

CPU r5 7535U/6650U

GPU RDNA2 660M

Max RAM 64GB

Drives 2

The Gigabyte GB-BER5H-7535 is a mini PC powered by the AMD r5 7535U/6650U (Zen 3+ gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 660M. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 124 × 120 × 49.7mm (0.74L). Uses a Brick PSU (135W), 28W TDP.

CPU & Performance

CPUr5 7535U/6650U

GenerationZen 3+

P-Cores6

Threads12

Single-core65

Multi-core26

Socket0

GPU

GPURDNA2 660M

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed4800 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen4 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.12

USB4 40Gbps1

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions124 × 120 × 49.7 mm

Volume0.74L

Fan size80mm

Warranty1 yr

Power

TDP28W

PSU typeBrick

PSU135W

Notes

Aug 31: USB4 and HDMI 2.1 max 4k 60hz (half bandwidth 20gbps instead of 40gbps)

Discover More

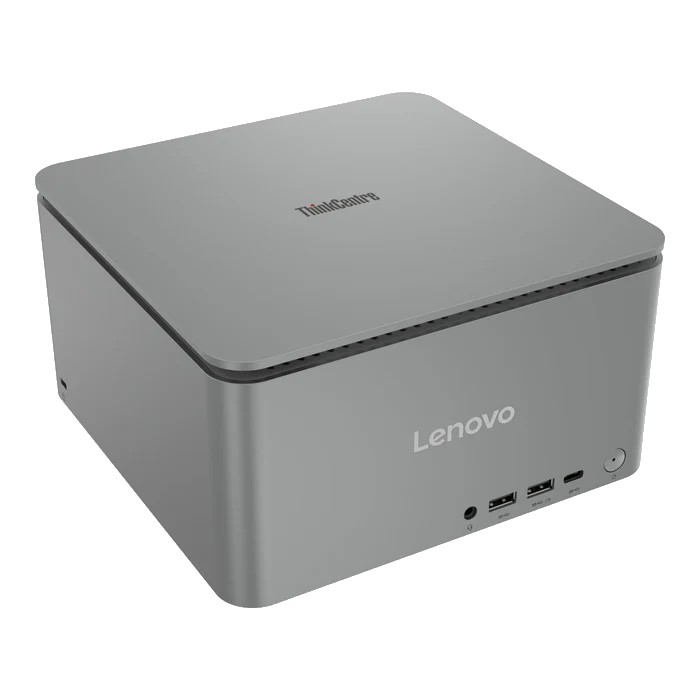

Lenovo Neo Ultra 14700 4060

Neo Ultra 14700 4060

Lenovo Neo Ultra 14700 4060 features Intel i7 14700 with NVIDIA 4060 discrete GPU.

CPU Intel i7 14700

Cores / Threads 8 / 28

GPU NVIDIA 4060

RAM 64GB / 2slots

Speed 5600 MT/s

Drives 2 (2 NVMe)

Ethernet 1 (1G)

Size 195×191×108mm

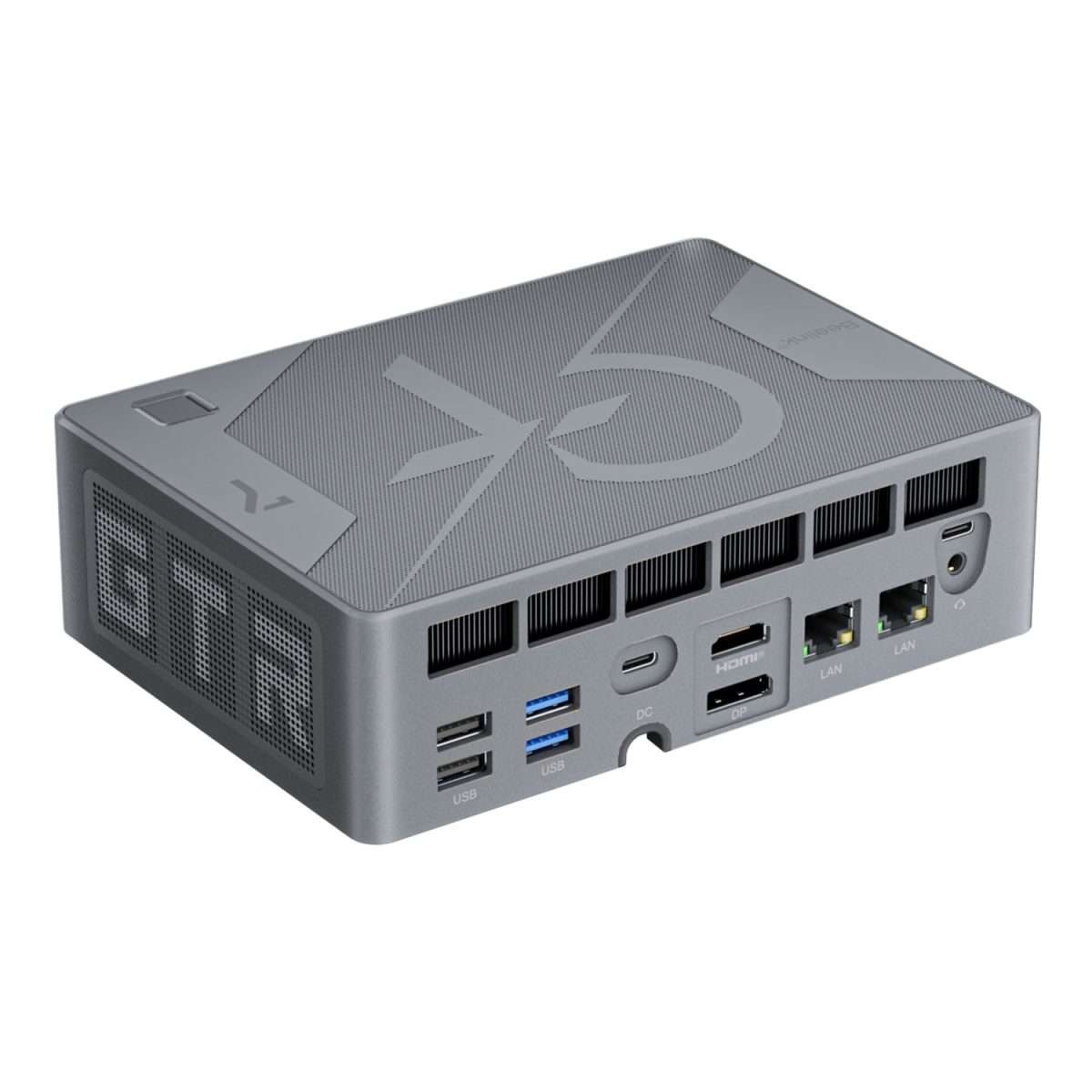

Beelink GTR7 Pro
