Gigabyte
GB-BEi5H-1240
CPU i5 1240P
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2
The Gigabyte GB-BEi5H-1240 is a mini PC powered by the Intel i5 1240P (12th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 139 × 134 × 48mm (0.89L). Uses a Brick PSU (135W), 28W TDP.
CPU & Performance
CPUi5 1240P
Generation12th
P-Cores4
Threads16
Single-core65
Multi-core25
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions139 × 134 × 48 mm
Volume0.89L
Fan size80mm
Warranty1 yr
Power
TDP28W
PSU typeBrick
PSU135W
Discover More
HP
EliteDesk 705 G5
HP EliteDesk 705 G5 features AMD r3 3200G, 64GB RAM.
CPU AMD r3 3200G
Cores / Threads 4 / 8
Socket AM4
GPU AMD Vega 8 (Ryzen 3000…
RAM 64GB / 2slots
Speed 2933 MT/s
Drives 3 (2 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 177×175×34mm
Vol 1.05L
Asus

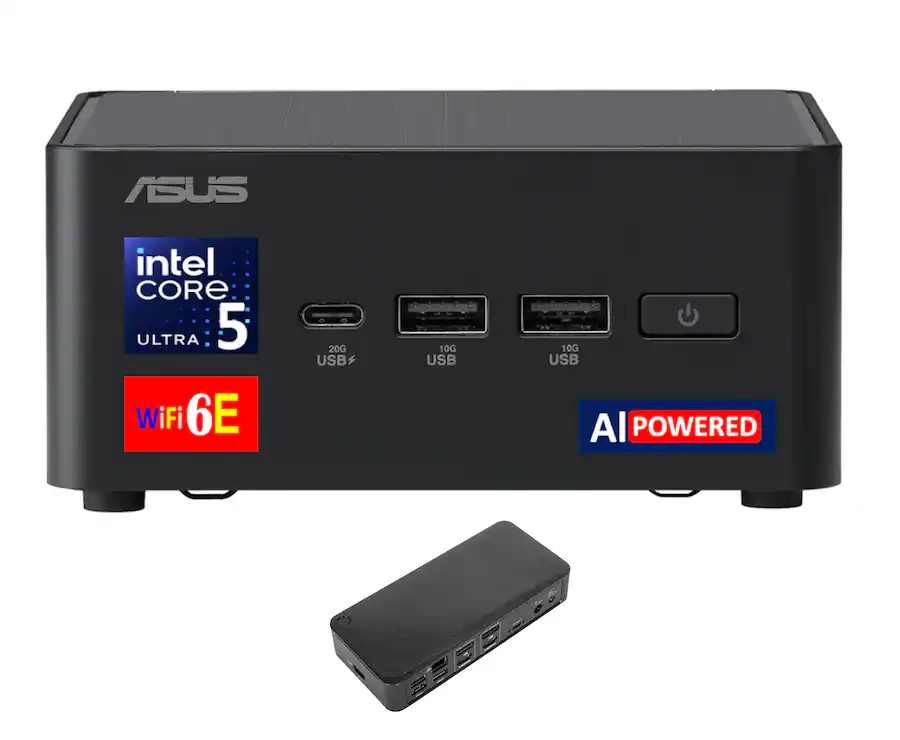

RNUC14RVHv5
