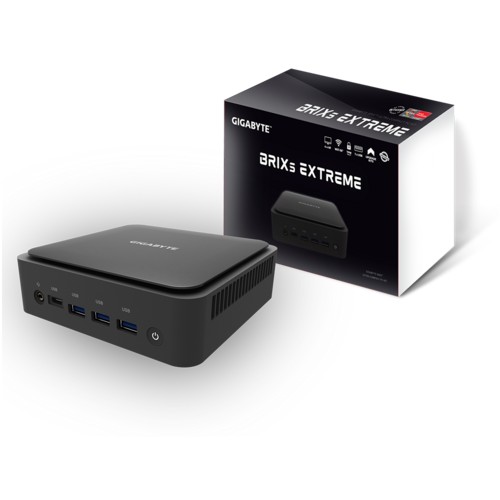

Gigabyte
GB-BEr5HS-5500
CPU r5 5500U
GPU Vega 7
Max RAM 64GB
Drives 3
The Gigabyte GB-BEr5HS-5500 is a mini PC powered by the AMD r5 5500U (Zen 2+ gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 139 × 134 × 48mm (0.89L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUr5 5500U
GenerationZen 2+
P-Cores6
Threads12
Single-core48
Multi-core19
Socket0
GPU
GPUVega 7
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions139 × 134 × 48 mm
Volume0.89L
Fan size80mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
Discover More

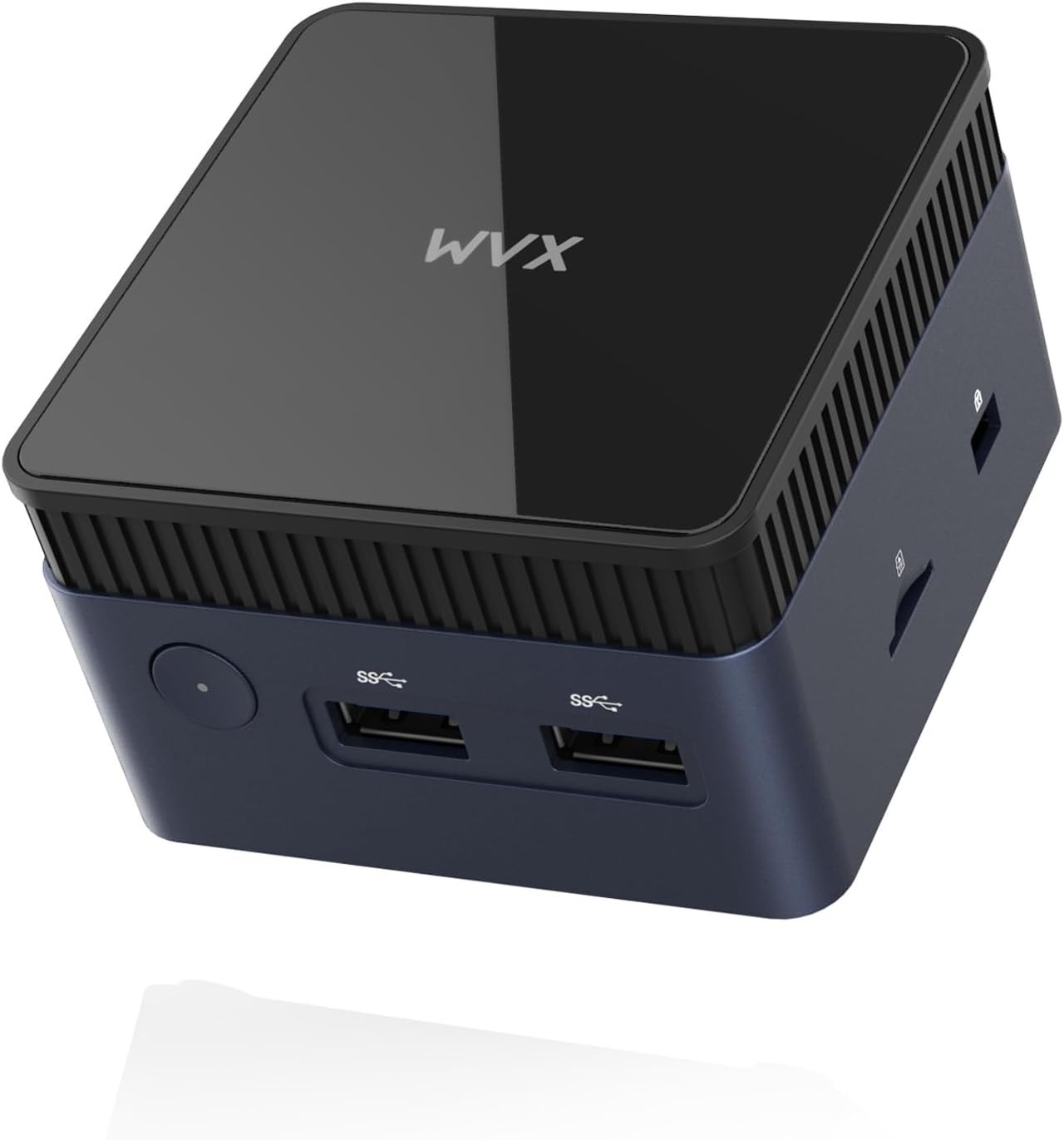

WVX
N100
$65
WVX N100 features Intel Celeron N100, 12GB RAM, offering ultra-compact 0.23L form factor.
CPU Intel Celeron N100
Cores / Threads – / 4
Socket Soldered
GPU Intel Iris Xe 24EU
RAM 12GB
Speed 4800 MT/s
Drives 2 (1 NVMe)
Ethernet 1 (1G)
Size 72×72×45mm
Vol 0.23L
ECS Elitegroup
LIVA Z5 Plus 1335U
ECS Elitegroup LIVA Z5 Plus 1335U features Intel i5 1335U, 64GB RAM, offering 2× 2.5G Ethernet and USB4.
CPU Intel i5 1335U
Cores / Threads 2 / 12
Socket Soldered
GPU Intel Iris Xe 80EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 1 (1 NVMe)
Ethernet 2 (2.5G)
Size 148×120×38mm
Vol 0.67L

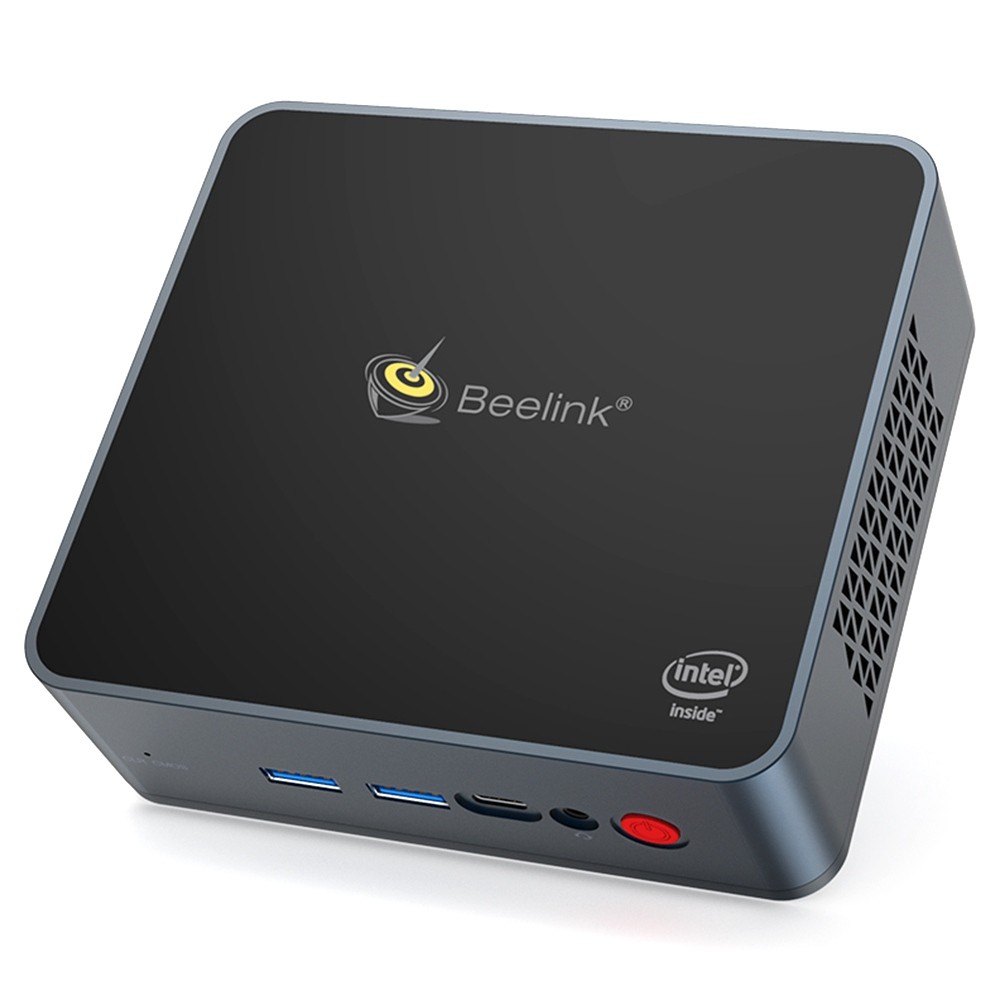

Beelink
