Gigabyte
GB-BEr7HS-5700
CPU r7 5700U
GPU Vega 8
Max RAM 64GB
Drives 3

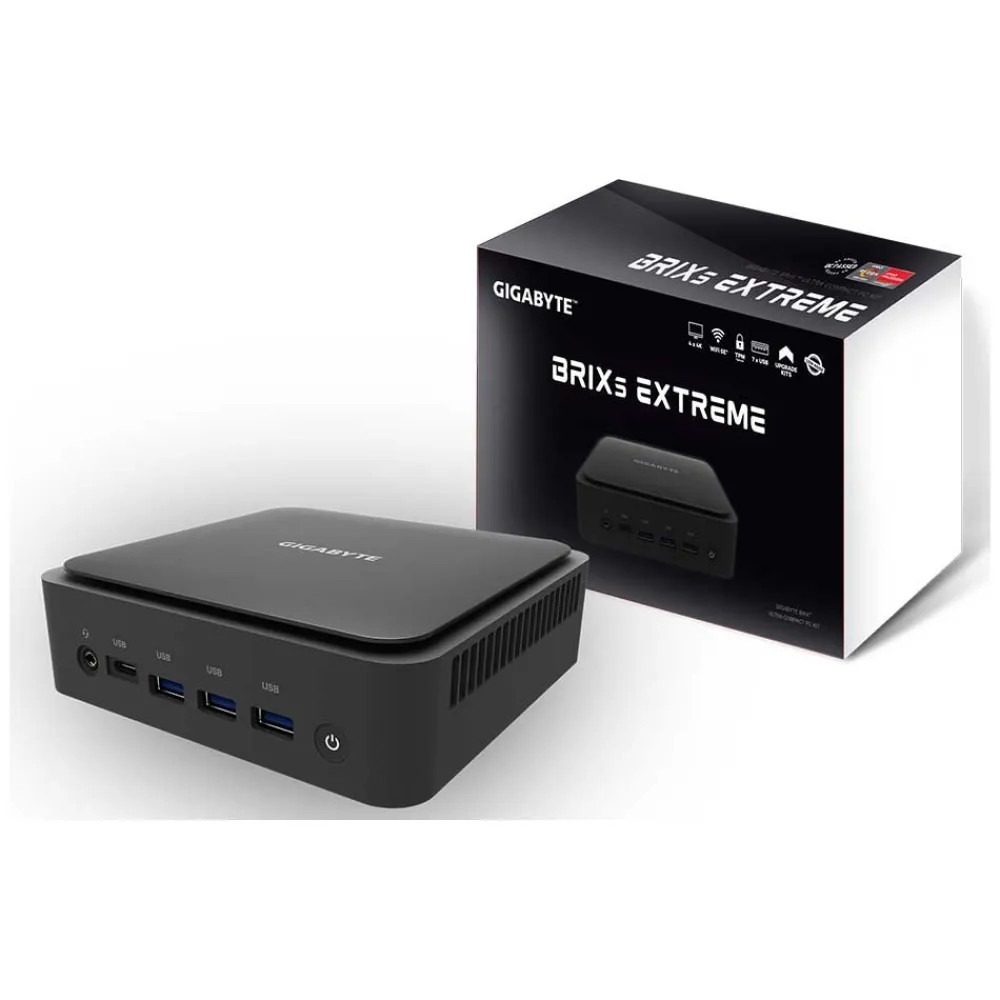

The Gigabyte GB-BEr7HS-5700 is a mini PC powered by the AMD r7 5700U (Zen 2+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 139 × 134 × 48mm (0.89L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUr7 5700U
GenerationZen 2+
P-Cores8
Threads16
Single-core51
Multi-core23
Socket0
GPU
GPUVega 8
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions139 × 134 × 48 mm
Volume0.89L
Fan size80mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
