Gigabyte
GB-BRi3H-1315
CPU i3 1315U
GPU Iris Xe 64EU
Max RAM 64GB
Drives 2
The Gigabyte GB-BRi3H-1315 is a mini PC powered by the Intel i3 1315U (13th gen). It features 2 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 64EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 124 × 120 × 49.7mm (0.74L). Uses a Brick PSU (135W), 15W TDP.
CPU & Performance
CPUi3 1315U
Generation13th
P-Cores2
Threads8
Single-core69
Multi-core18
Socket0
GPU
GPUIris Xe 64EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions124 × 120 × 49.7 mm
Volume0.74L
Fan size80mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
PSU135W
Discover More

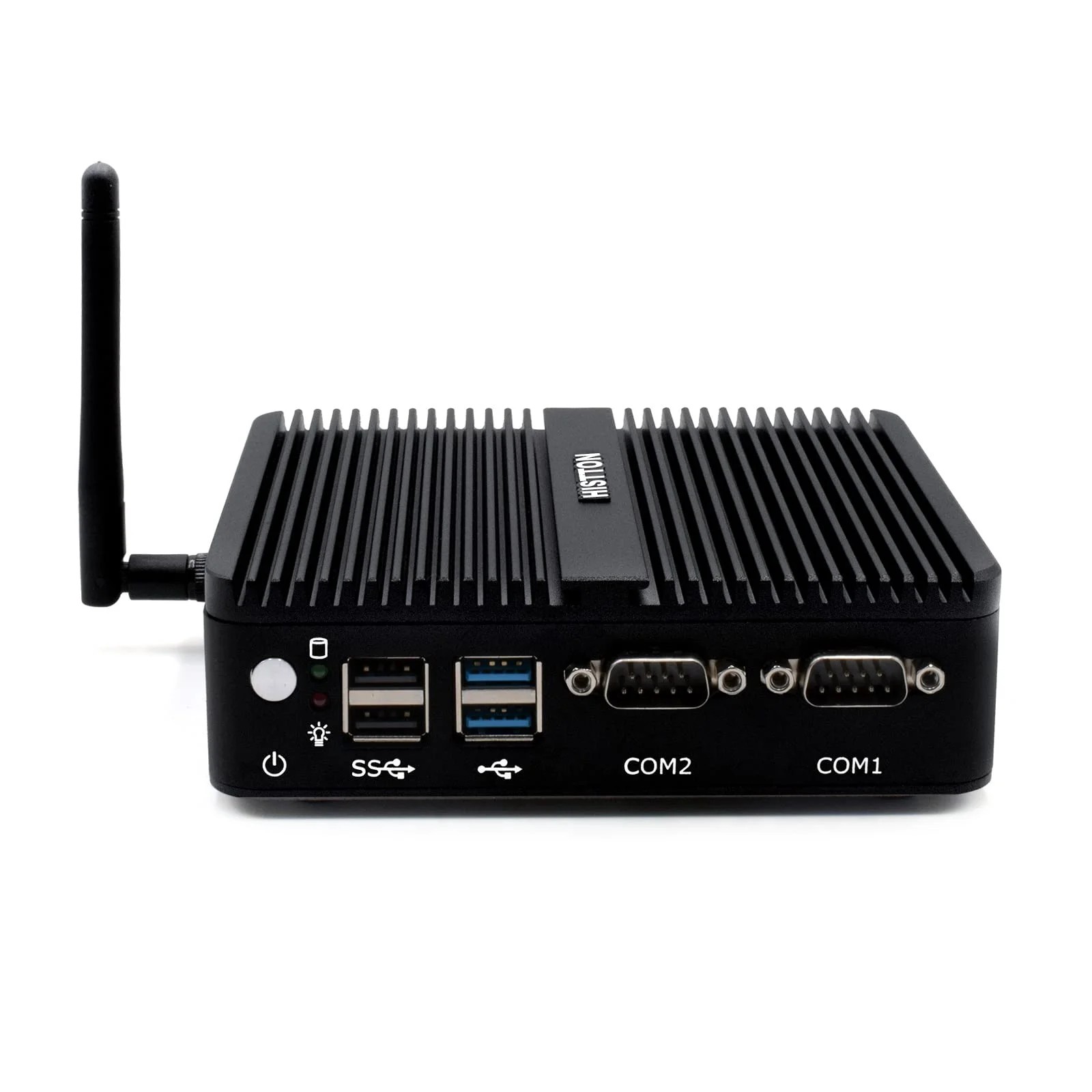

Histton
