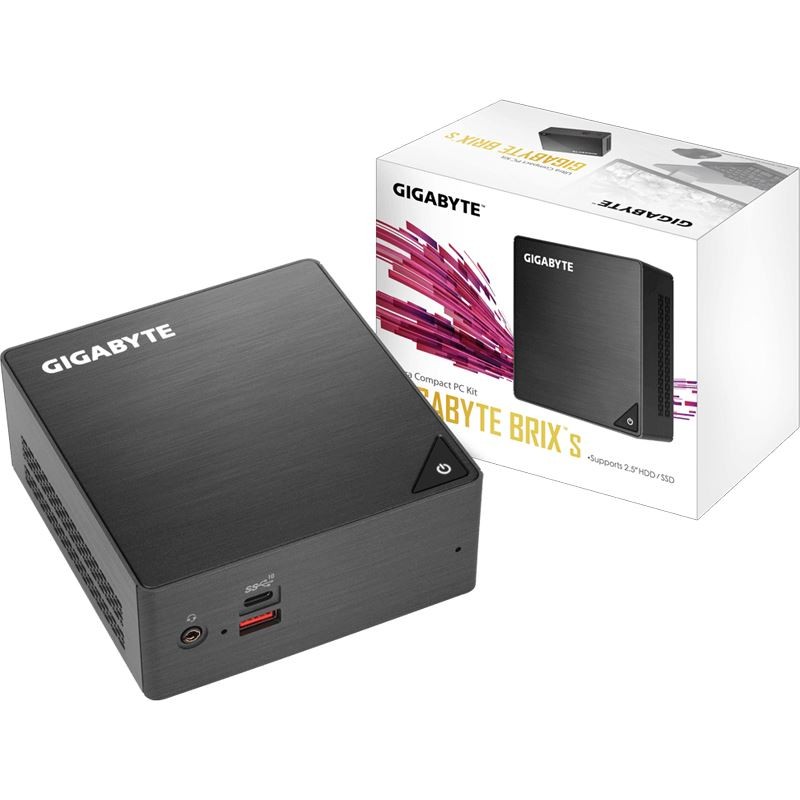

Gigabyte
GB-BRi3-8130
CPU i3 8130U
GPU Intel UHD 620
Drives 1
The Gigabyte GB-BRi3-8130 is a mini PC powered by the Intel i3 8130U (8th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Storage capacity of up to 1 drive including 1 NVMe.
CPU & Performance
CPUi3 8130U
Generation8th
P-Cores2
Threads4
Single-core37
Multi-core5
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen3 x41
SD cardNo
Ports & Connectivity
Network
Physical
Fan size55mm
Power
TDP15W
Discover More

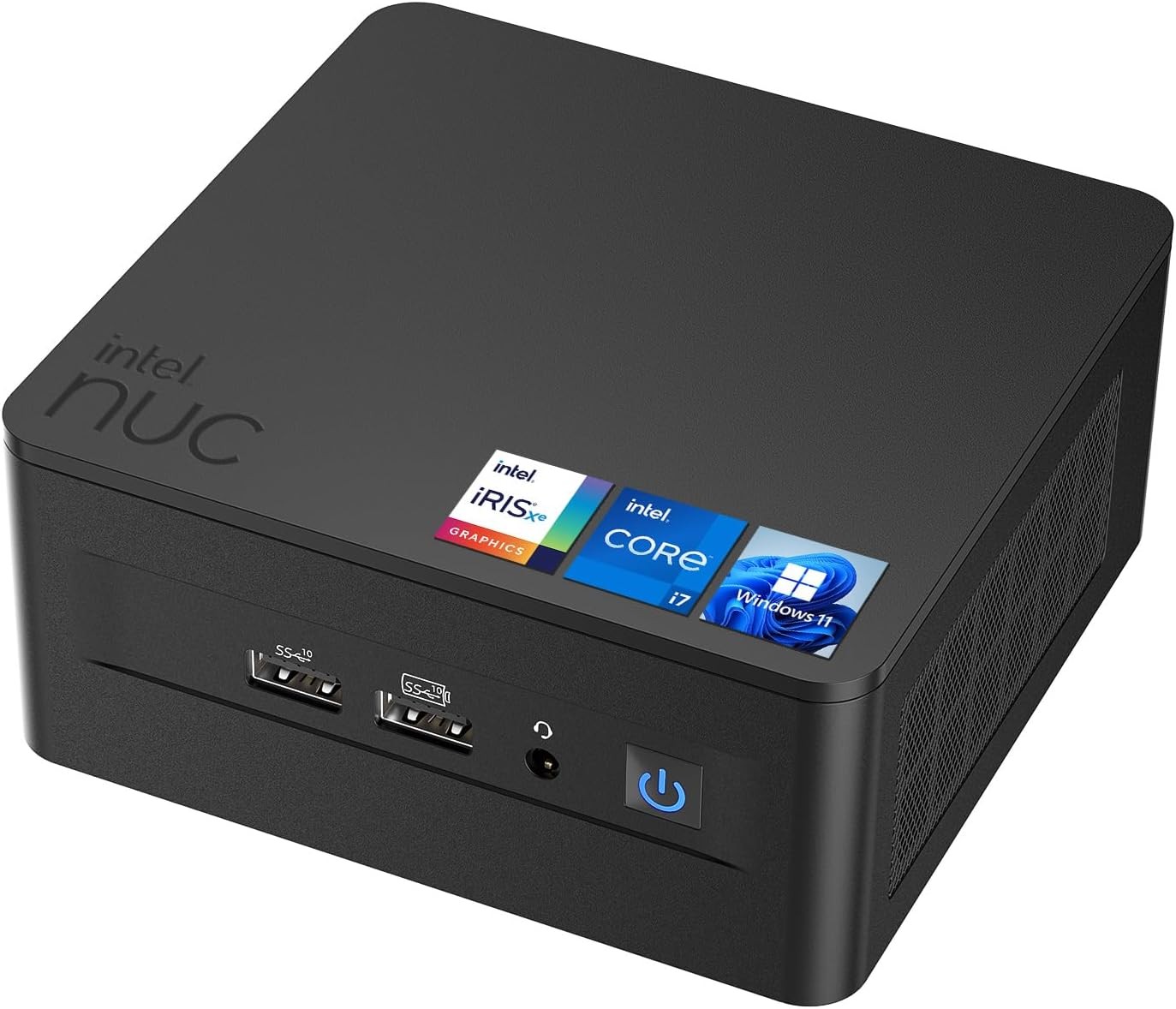

Intel
NUC Pro NUC12WSHi7
$585
Intel NUC Pro NUC12WSHi7 features Intel i7 1260P, 64GB RAM, offering USB4 and compact 0.71L design.
CPU Intel i7 1260P
Cores / Threads 4 / 16
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (2.5G)
PSU Brick
Size 117×112×54mm
Vol 0.71L

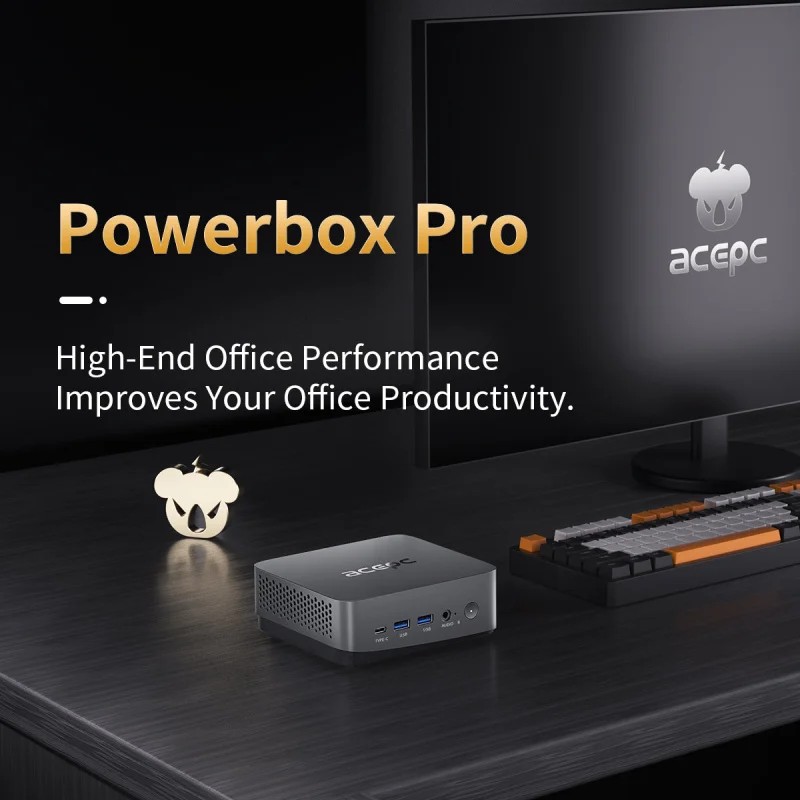

AcePC
PowerBox Pro
$370
AcePC PowerBox Pro features Intel i5 12450H, 64GB RAM.
CPU Intel i5 12450H
Cores / Threads 4 / 12
Socket Soldered
GPU Intel Intel UHD Xe 48EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 2 (2 NVMe)
Ethernet 1 (1G)
PSU Brick

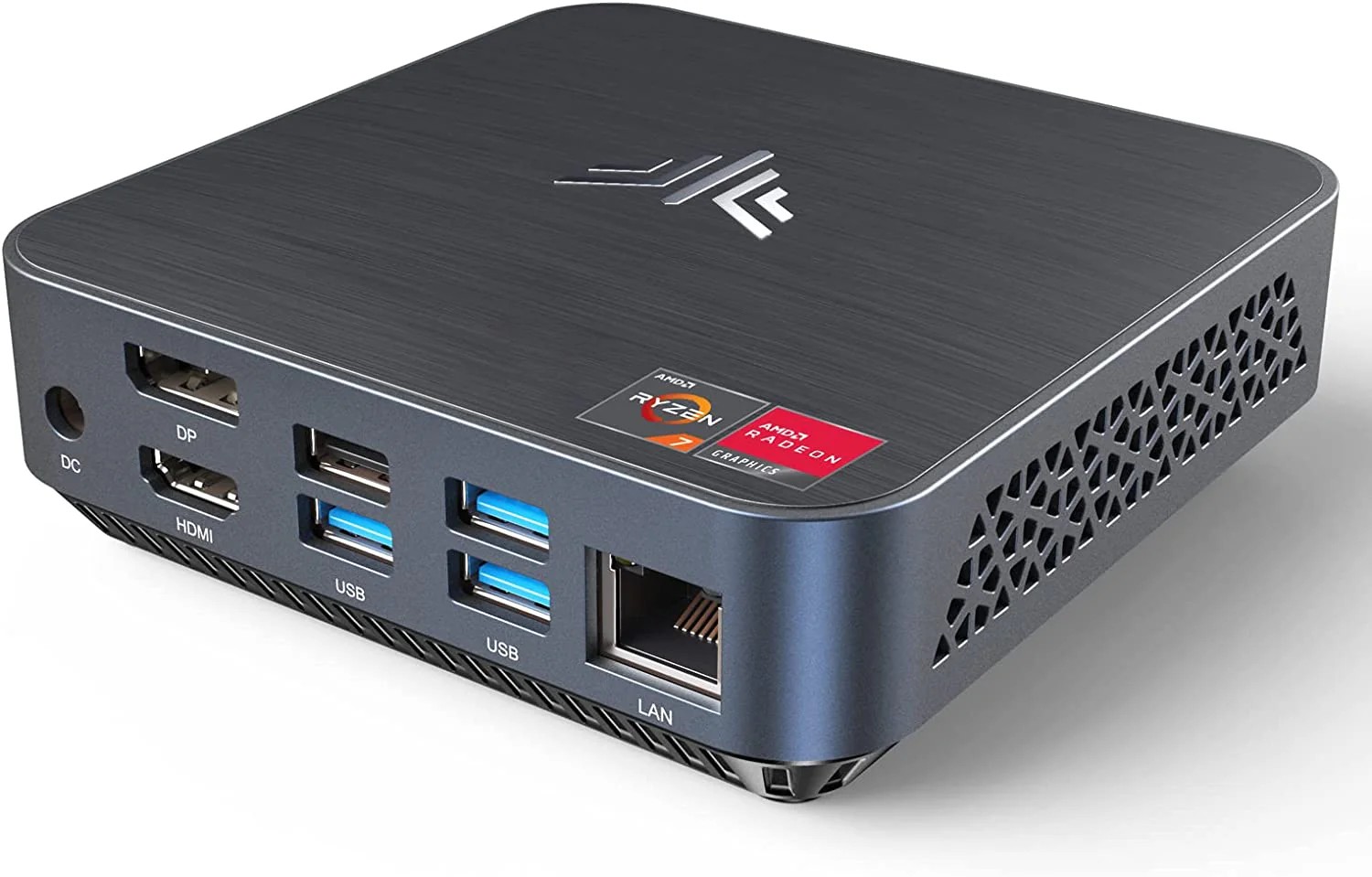

Nipogi
AM02 3750H
Nipogi AM02 3750H features AMD r7 3750H, 32GB RAM, offering compact 0.61L design.
CPU AMD r7 3750H
Cores / Threads 4 / 8
Socket Soldered
GPU AMD Vega 10
RAM 32GB / 2slots
Speed 2400 MT/s
Drives 2
SATA 1×2.5"
Ethernet 1 (1G)
Size 123×123×40mm
Vol 0.61L
