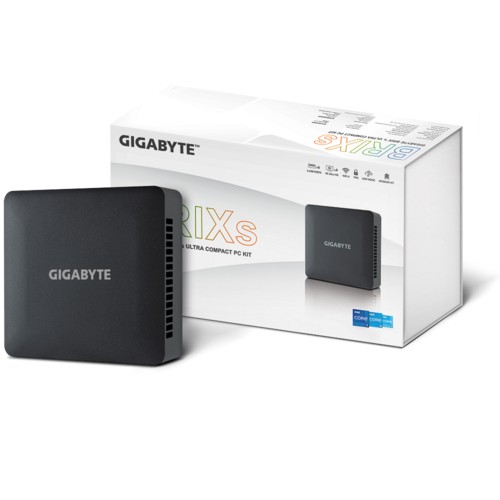

Gigabyte
GB-BRi5HS-1335
CPU i5 1335U
GPU Iris Xe 80EU
Max RAM 64GB
Drives 3
The Gigabyte GB-BRi5HS-1335 is a mini PC powered by the Intel i5 1335U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 124 × 120 × 49.7mm (0.74L). Uses a Brick PSU (135W), 15W TDP.
CPU & Performance
CPUi5 1335U
Generation13th
P-Cores2
Threads12
Single-core67
Multi-core22
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions124 × 120 × 49.7 mm
Volume0.74L
Fan size80mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
PSU135W
Discover More
Geekom
Preorder Nov Mega Mini G1 13900H
$1,700
Geekom Preorder Nov Mega Mini G1 13900H features Intel i9 13900H, 64GB RAM, offering OCuLink and USB4.
CPU Intel i9 13900H
Cores / Threads 6 / 20
Socket Soldered
GPU NVIDIA Mobile 4060
RAM 64GB / 2slots
Speed 5200 MT/s
Drives 3 (2 NVMe)
Ethernet 1 (2.5G)
Vol 6L

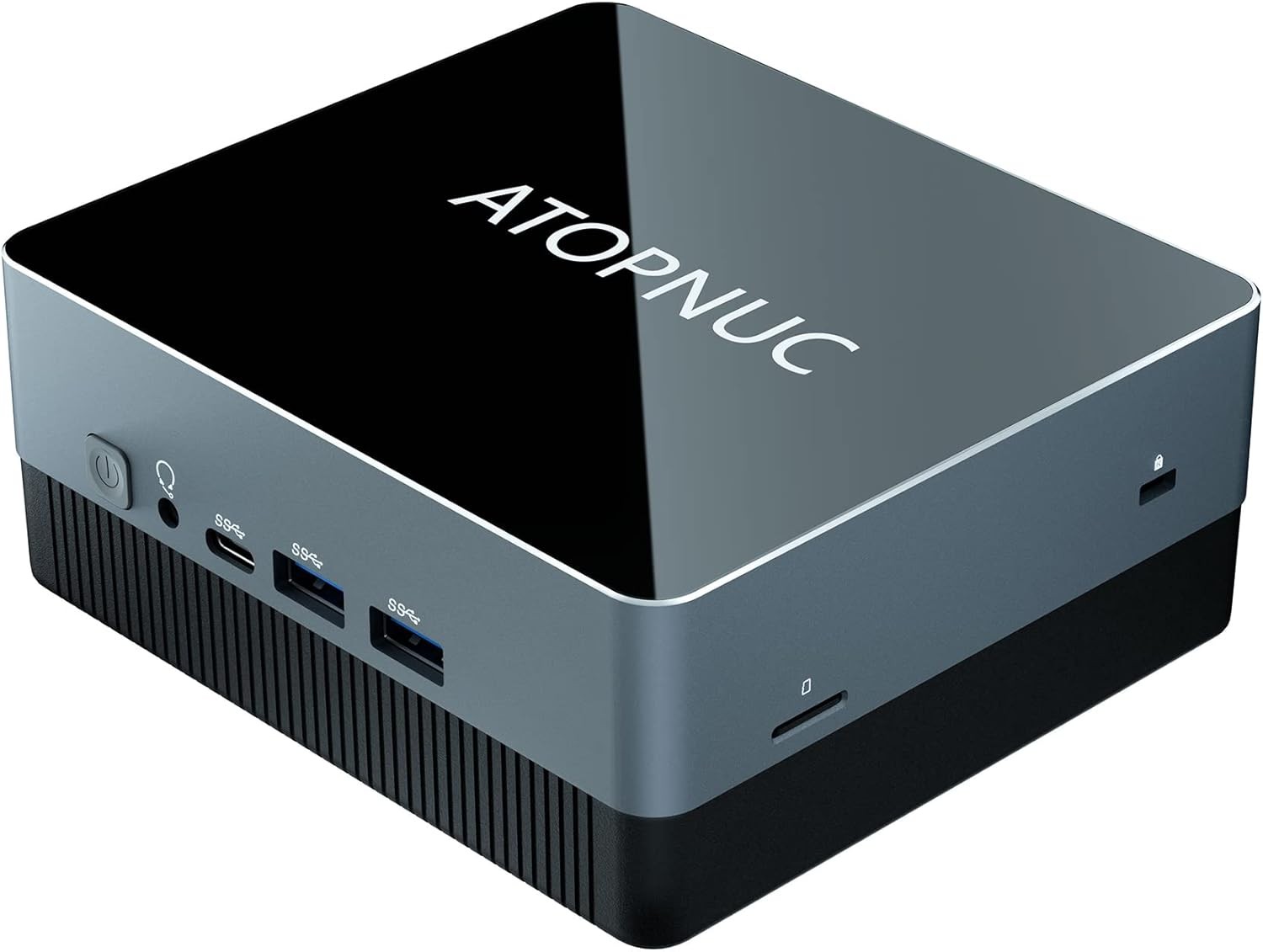

ATOPNUC
AC50
$15
ATOPNUC AC50 features Intel i5 8279U, 32GB RAM, offering compact 0.69L design.
CPU Intel i5 8279U
Cores / Threads 4 / 8
Socket Soldered
GPU Intel Iris Plus 655
RAM 32GB / 2slots
Speed 2400 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
Size 125×110×50mm
Vol 0.69L

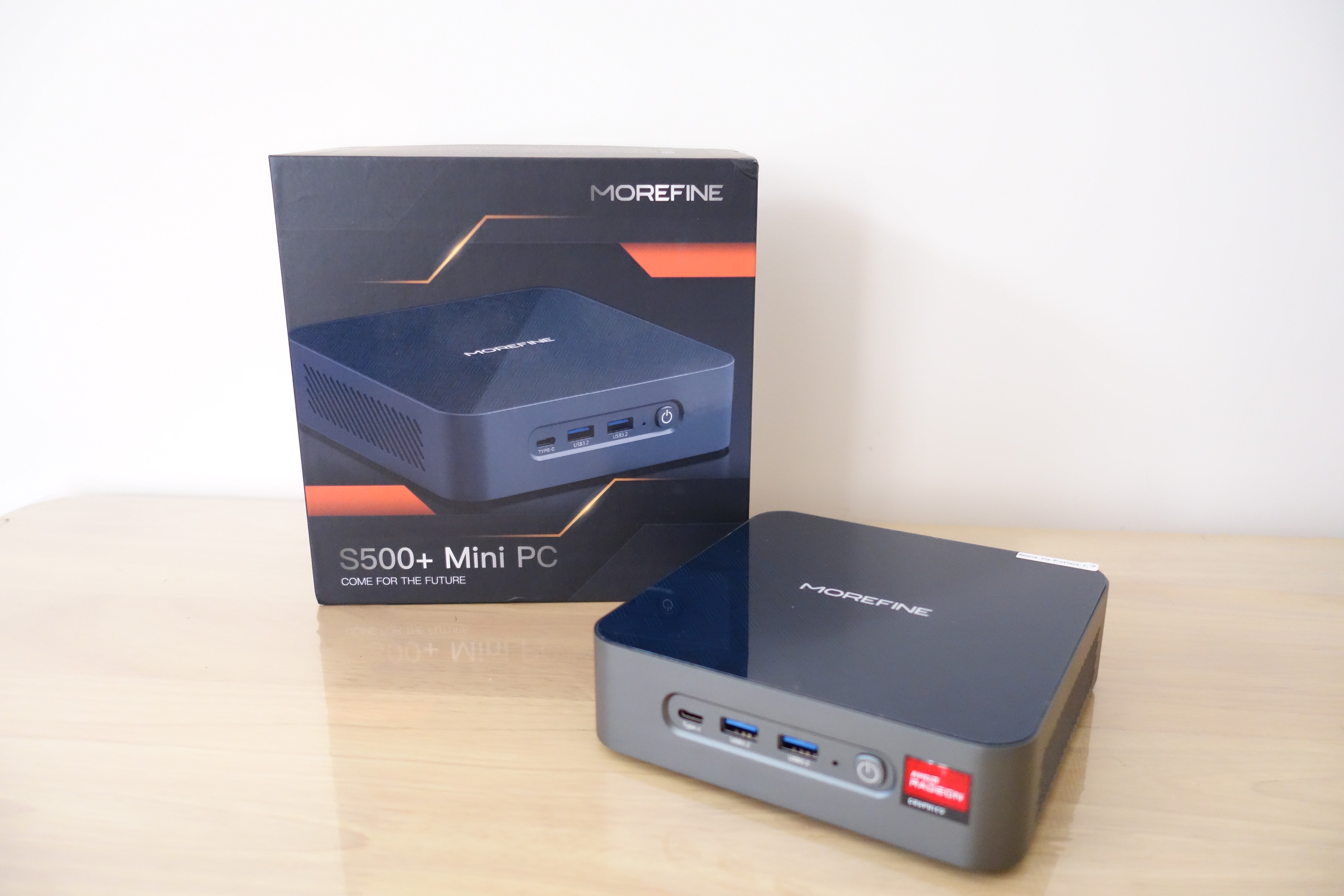

Morefine
