Gigabyte
GB-BRr3-4300
CPU r3 4300U
GPU Vega 5
Max RAM 64GB
Drives 1
The Gigabyte GB-BRr3-4300 is a mini PC powered by the AMD r3 4300U (Zen 2 gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 5. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 120 × 120 × 47mm (0.68L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUr3 4300U
GenerationZen 2
P-Cores2
Threads4
Single-core46
Multi-core11
Socket0
GPU
GPUVega 5
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen3 x41
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
vProN
Physical
Dimensions120 × 120 × 47 mm
Volume0.68L
Fan size55mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
Discover More
HP
EliteDesk 800 G9 13700
$585
HP EliteDesk 800 G9 13700 features Intel i7 13700, 96GB RAM, offering USB4.
CPU Intel i7 13700
Cores / Threads 8 / 24
Socket LGA1700
GPU Intel Intel UHD 770
RAM 96GB / 2slots
Speed 5600 MT/s
Drives 3 (2 NVMe)
SATA 1×2.5"
Ethernet 1 (2.5G)
PSU Brick
Size 177×175×34mm
Vol 1.05L

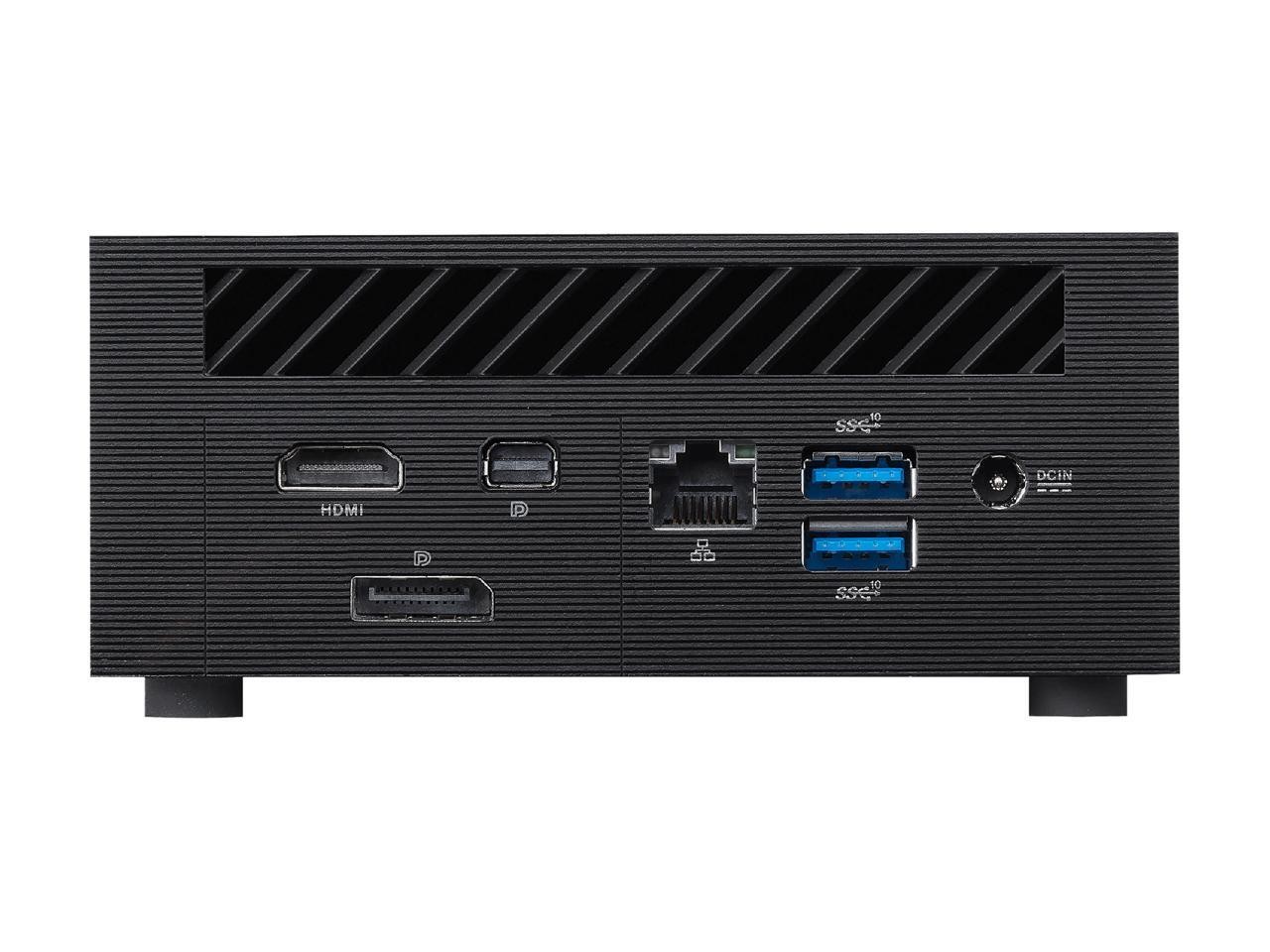

Asus
