Gigabyte
GB-BRr5H-7530
CPU r5 7530U/5625U
GPU Vega 7
Max RAM 64GB
Drives 2
The Gigabyte GB-BRr5H-7530 is a mini PC powered by the AMD r5 7530U/5625U (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 124 × 120 × 49.7mm (0.74L). Uses a Brick PSU (135W), 15W TDP.
CPU & Performance
CPUr5 7530U/5625U
GenerationZen 3
P-Cores6
Threads12
Single-core61
Multi-core23
Socket0
GPU
GPUVega 7
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions124 × 120 × 49.7 mm
Volume0.74L
Fan size80mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
PSU135W
Discover More
Gigabyte
GB-BLCE-4105C
Gigabyte GB-BLCE-4105C features Intel Celeron J4105.
CPU Intel Celeron J4105
Cores / Threads – / 4
Socket Soldered
GPU Intel Intel UHD 600
Simply NUC

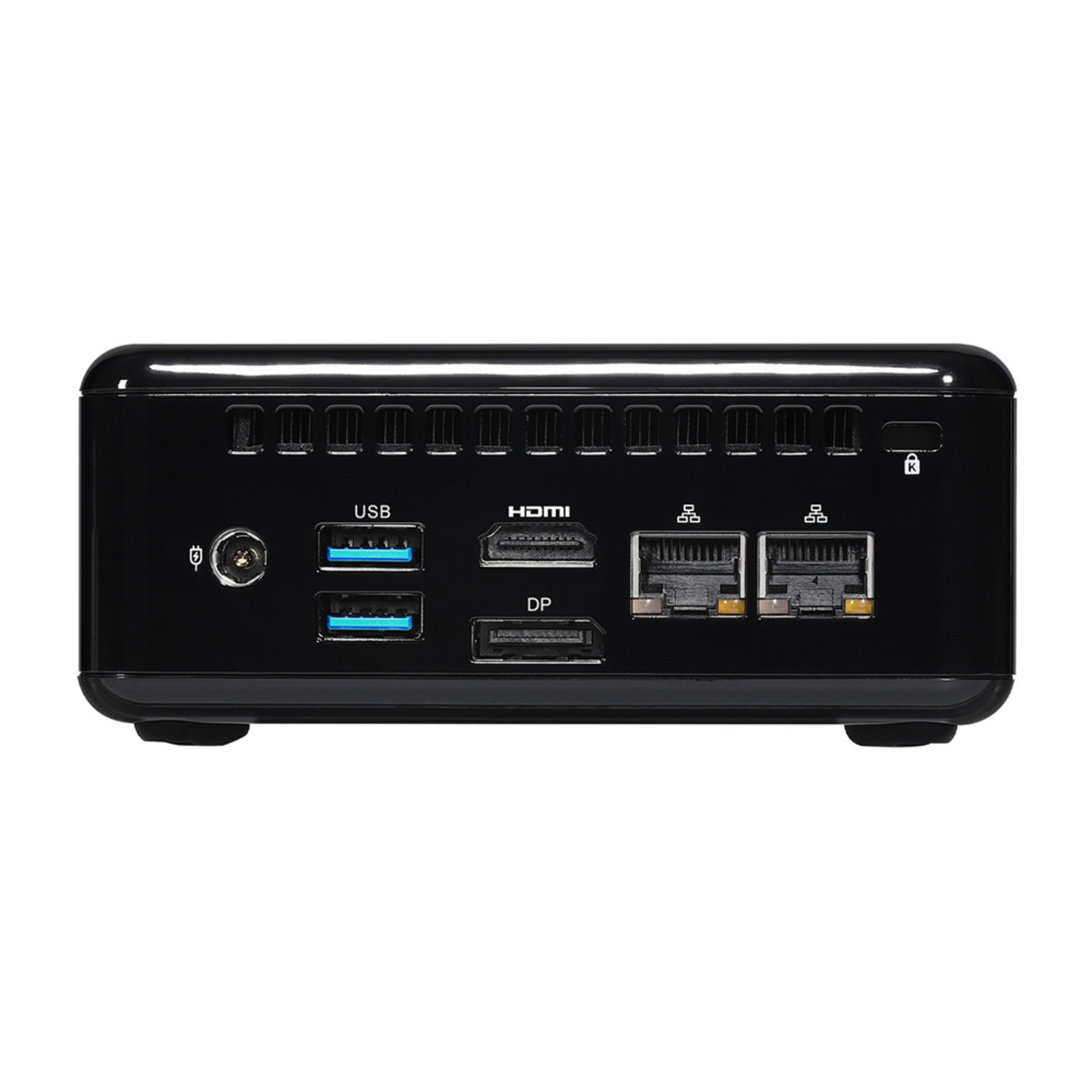

CMCR1ABA i7 Elk
