HP
EliteDesk 705 G5
CPU r5 3400GE
GPU Mobile 560X
Max RAM 64GB
Drives 3
Seller Ebay
The HP EliteDesk 705 G5 is a mini PC powered by the AMD r5 3400GE (Zen 1+ gen). It features 4 performance cores and 8 threads and a AM4 socket. Graphics are handled by the discrete Mobile 560X. Supports up to 64GB of RAM across 2 slots at 2933 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 177 × 175 × 34mm (1.05L). Uses a Brick PSU.
CPU & Performance
CPUr5 3400GE
GenerationZen 1+
P-Cores4
Threads8
Single-core45
Multi-core13
SocketAM4
GPU
GPUMobile 560X
Discrete GPUYes
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed2933 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots2
Gen3 x42
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions177 × 175 × 34 mm
Volume1.05L
Fan size80mm
Warranty1 yr
Power
PSU typeBrick
Discover More

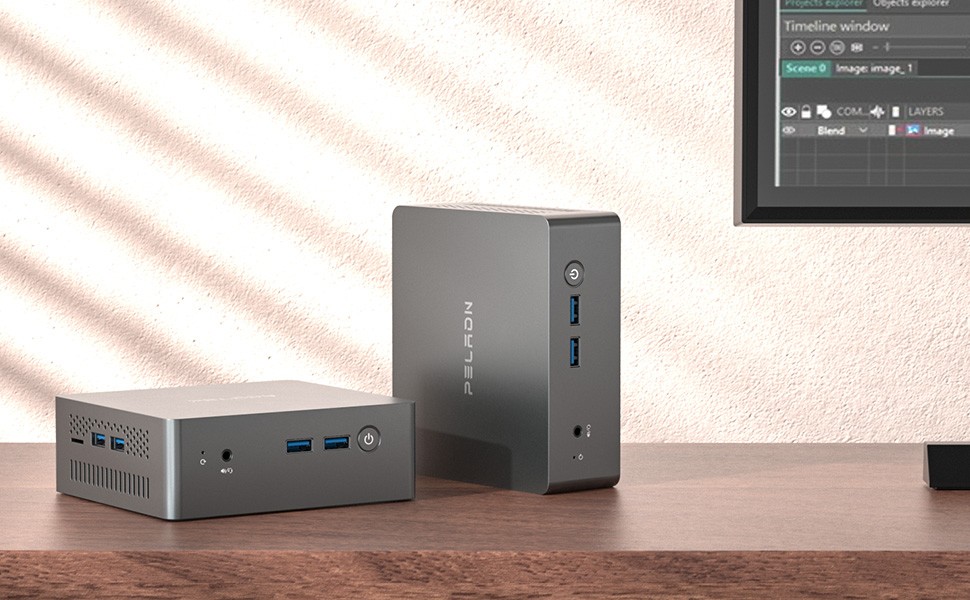

PELADN
