HP
EliteDesk 805 G6
CPU r3 4350G
GPU Vega 6
Max RAM 64GB
Drives 3
Seller Ebay
The HP EliteDesk 805 G6 is a mini PC powered by the AMD r3 4350G (Zen 2 gen). It features 4 performance cores and 8 threads and a AM4 socket. Graphics are handled by the integrated AMD Vega 6. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 177 × 175 × 34mm (1.05L). Uses a Brick PSU.
CPU & Performance
CPUr3 4350G
GenerationZen 2
P-Cores4
Threads8
Single-core50
Multi-core16
SocketAM4
GPU
GPUVega 6
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots2
Gen3 x42
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
2.5G ports1
1G ports1
vProN
Physical
Dimensions177 × 175 × 34 mm
Volume1.05L
Fan size80mm
Warranty1 yr
Power
PSU typeBrick
Notes
Optional 2.5GBps NIC and 100W USB C PD input
Discover More

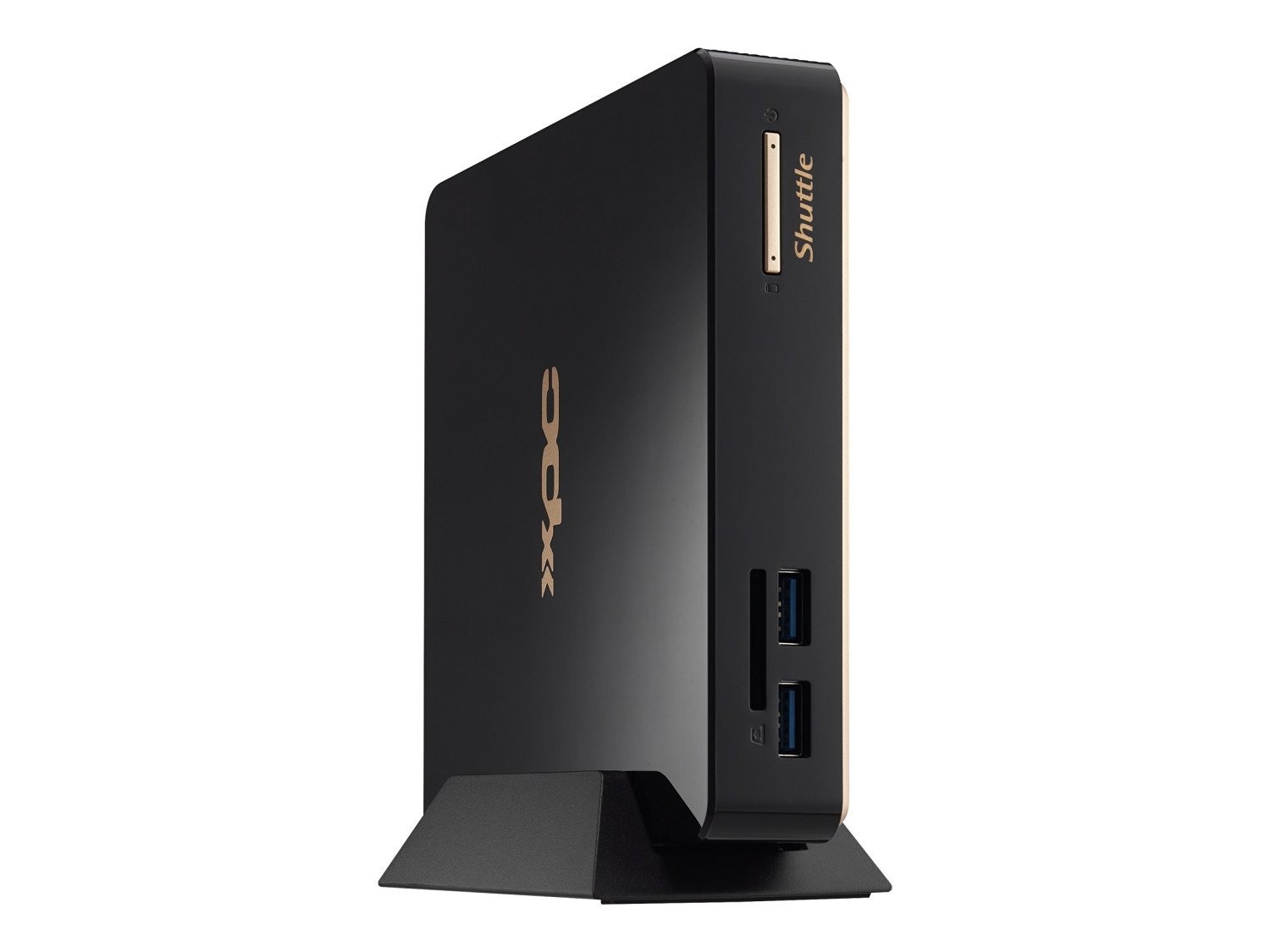

Shuttle
NC01U3
$160
Shuttle NC01U3 features Intel i3 5005U.
CPU Intel i3 5005U
Cores / Threads 2 / 4
Socket Soldered
GPU Intel Intel HD 5500

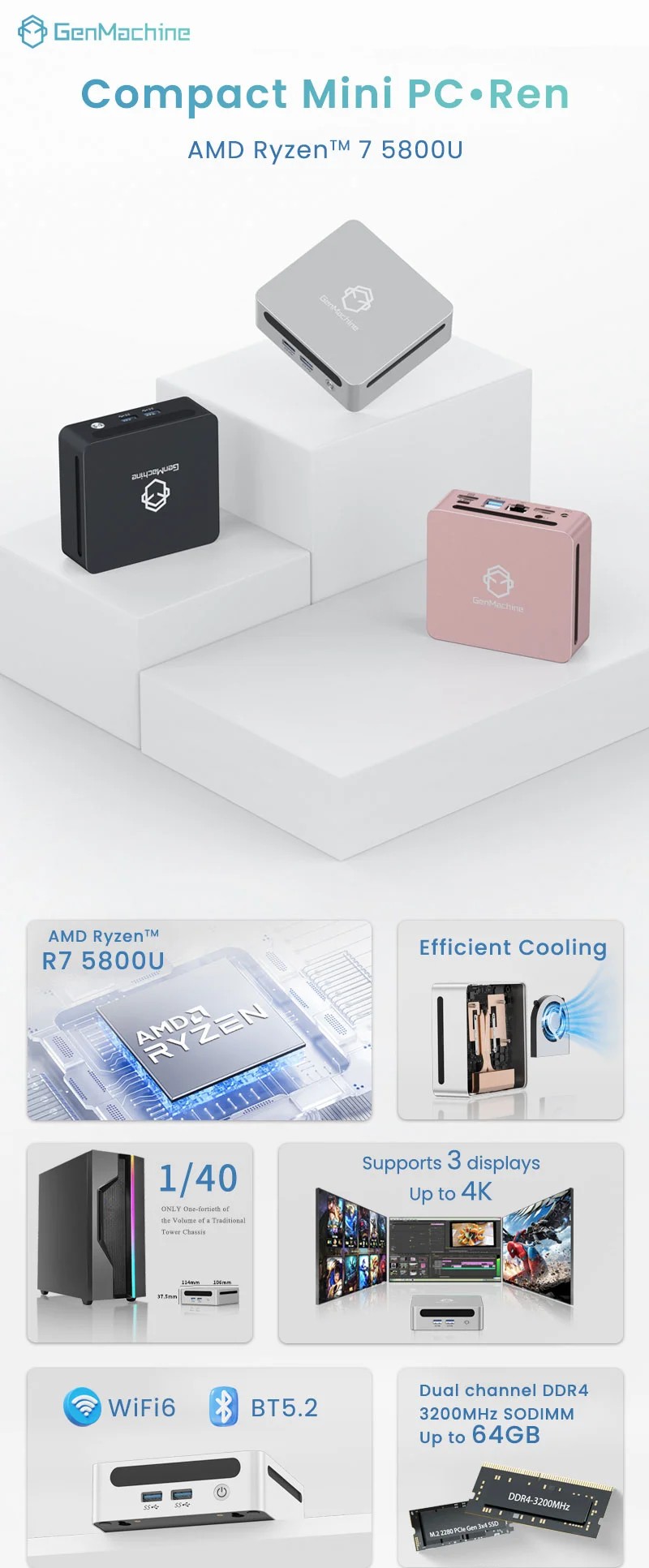

Topton
Ren5000 / D6 5800U
$221
Topton Ren5000 / D6 5800U features AMD r7 5800U, 64GB RAM, offering ultra-compact 0.46L form factor.
CPU AMD r7 5800U
Cores / Threads 8 / 16
Socket Soldered
GPU AMD Vega 8
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 2 (2 NVMe)
Ethernet 1 (1G)
PSU Brick
Size 114×106×38mm
Vol 0.46L

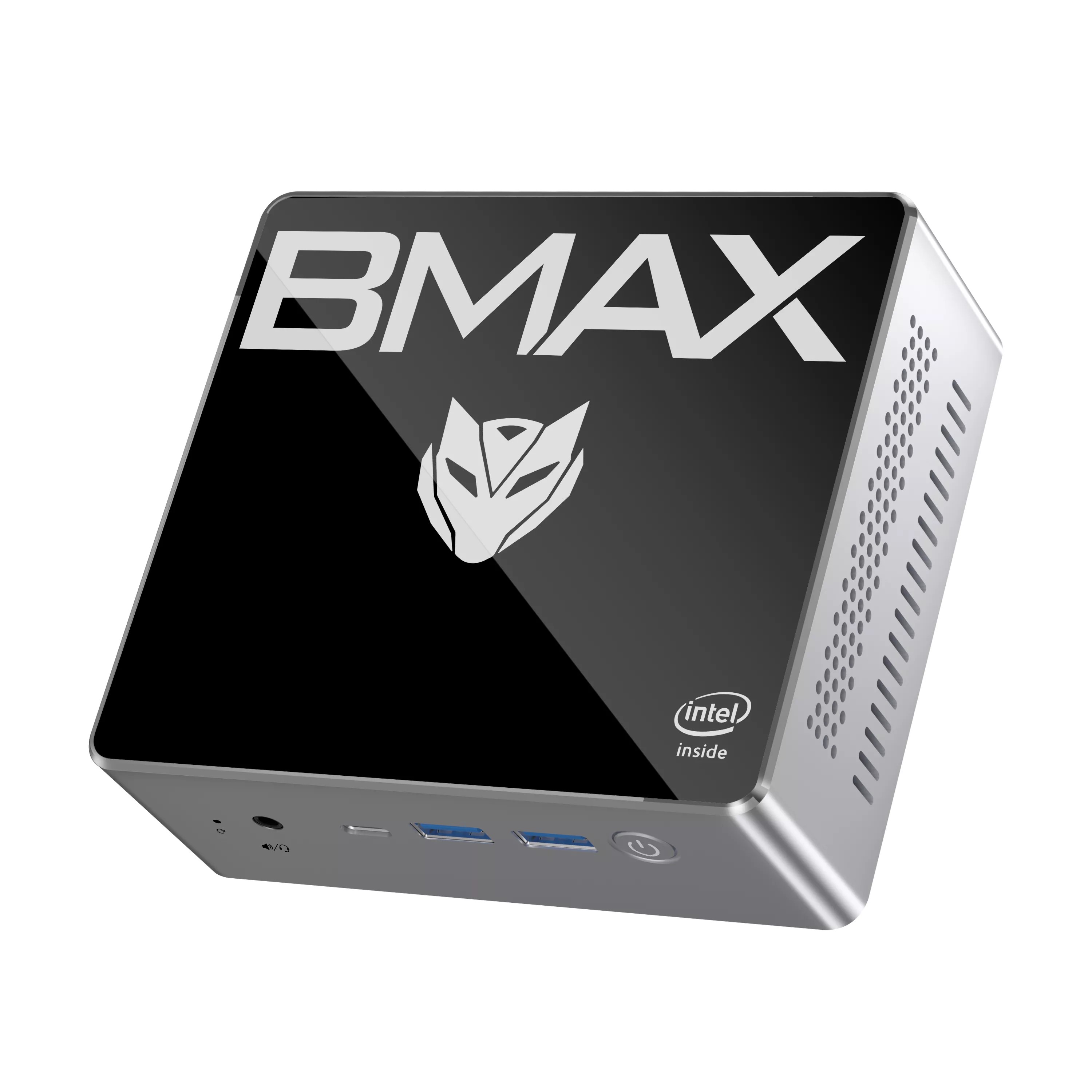

Bmax
