HP
Elitedesk 800 G3
CPU i5 7600T
GPU Intel HD 630
Max RAM 32GB
Drives 2
Seller Ebay

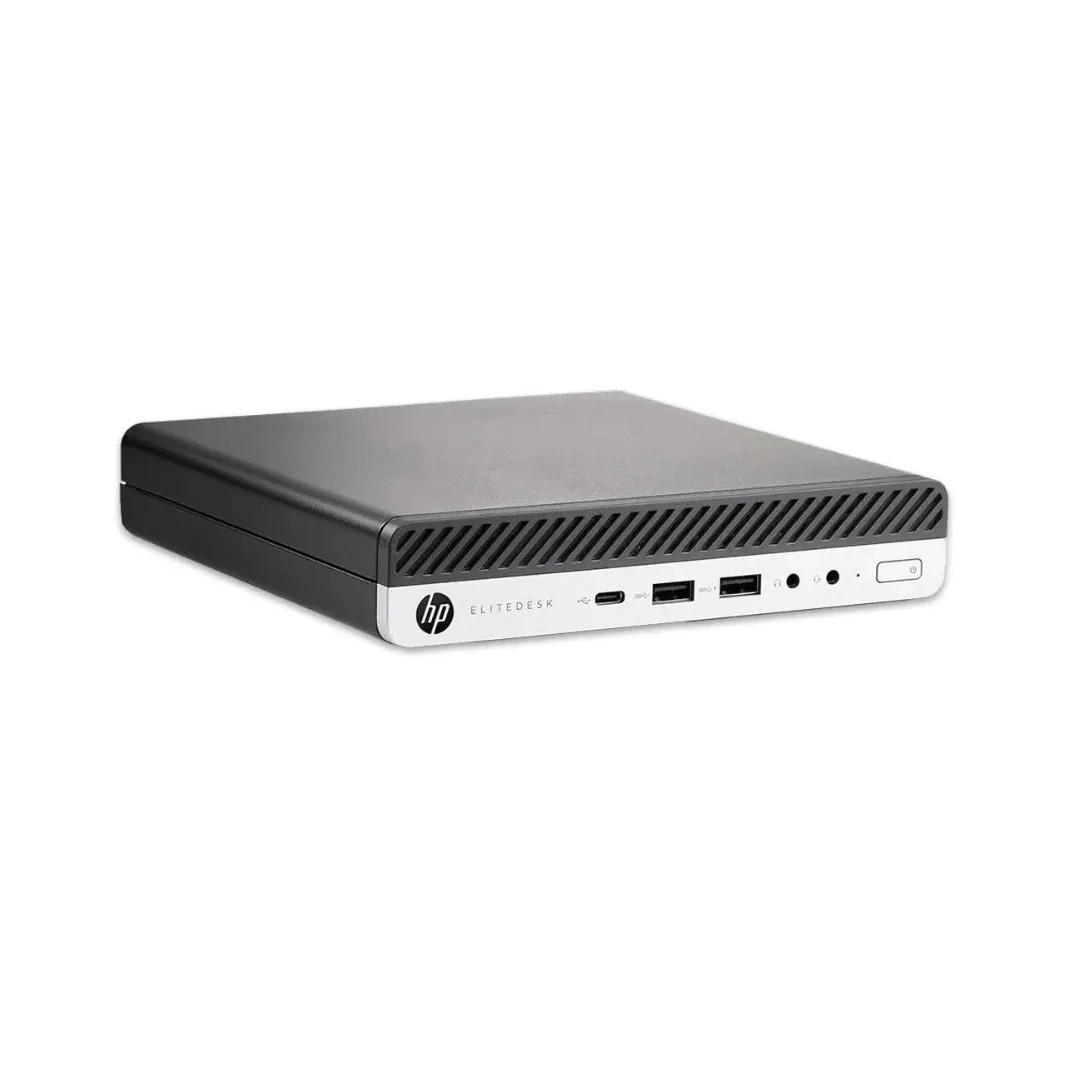

The HP Elitedesk 800 G3 is a mini PC powered by the Intel i5 7600T (7th gen). It features 4 performance cores and 4 threads and a LGA1151 socket. Graphics are handled by the integrated Intel Intel HD 630. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 177 × 175 × 34mm (1.05L). Uses a Brick PSU, 35W TDP.
CPU & Performance
CPUi5 7600T
Generation7th
P-Cores4
Threads4
Single-core43
Multi-core9
SocketLGA1151
GPU
GPUIntel HD 630
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProY
Physical
Dimensions177 × 175 × 34 mm
Volume1.05L
Fan size80mm
Warranty1 yr
Power
TDP35W
PSU typeBrick
