HP
Elitedesk 800 G4
CPU i5 8500T
GPU Intel UHD 630
Max RAM 32GB
Drives 3
Seller Ebay
The HP Elitedesk 800 G4 is a mini PC powered by the Intel i5 8500T (8th gen). It features 6 performance cores and 6 threads and a LGA1151 socket. Graphics are handled by the integrated Intel Intel UHD 630. Supports up to 32GB of RAM across 2 slots at 2666 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 177 × 175 × 34mm (1.05L). Uses a Brick PSU, 35W TDP.
CPU & Performance
CPUi5 8500T
Generation8th
P-Cores6
Threads6
Single-core40
Multi-core11
SocketLGA1151
GPU
GPUIntel UHD 630
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2666 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots2
Gen3 x42
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions177 × 175 × 34 mm
Volume1.05L
Fan size80mm
Warranty1 yr
Power
TDP35W
PSU typeBrick
Discover More

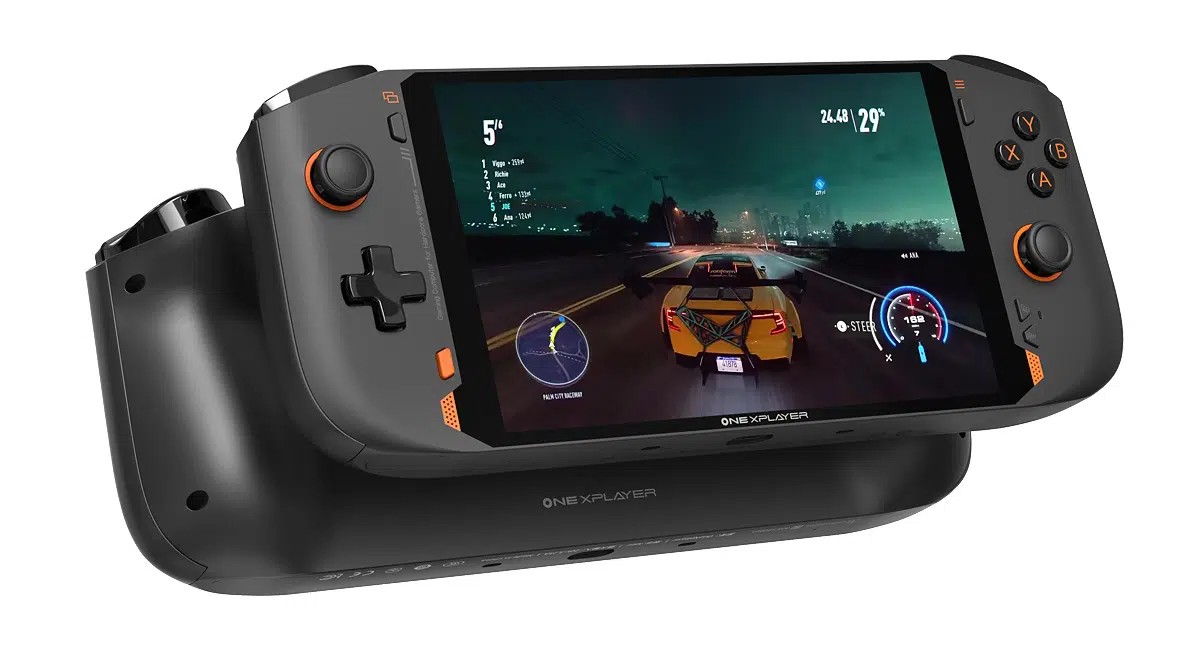

OneXPlayer
