HP
Z2 Mini G4
CPU Xeon E-2136G
GPU Intel UHD P630
Max RAM 64GB
Drives 2
Seller Ebay

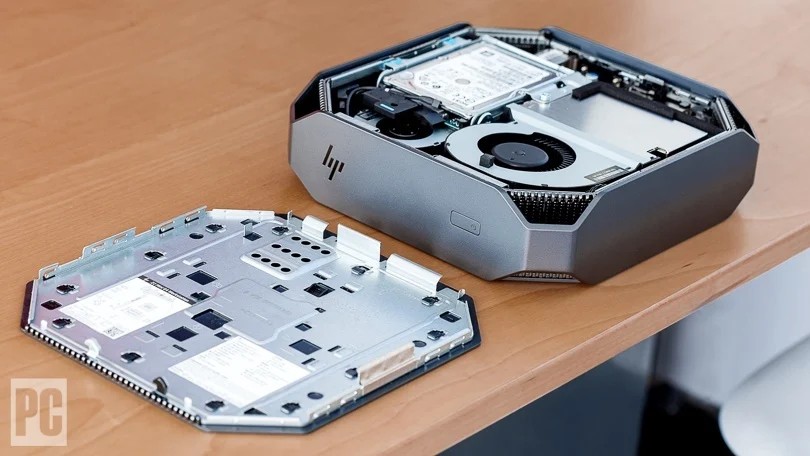

The HP Z2 Mini G4 is a mini PC powered by the Intel Xeon E-2136G (8th gen). It features 6 performance cores and 12 threads and a LGA1151 socket. Graphics are handled by the integrated Intel Intel UHD P630. Supports up to 64GB of RAM across 2 slots at 2666 MT/s with ECC support. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 216 × 216 × 58mm (2.71L). Uses a Brick PSU (135W).
CPU & Performance
CPUXeon E-2136G
Generation8th
P-Cores6
Threads12
SocketLGA1151
GPU
GPUIntel UHD P630
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed2666 MT/s
ECC supportYes
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
Physical
Dimensions216 × 216 × 58 mm
Volume2.71L
Fan size90mm
Warranty1 yr
Power
PSU typeBrick
PSU135W
Discover More

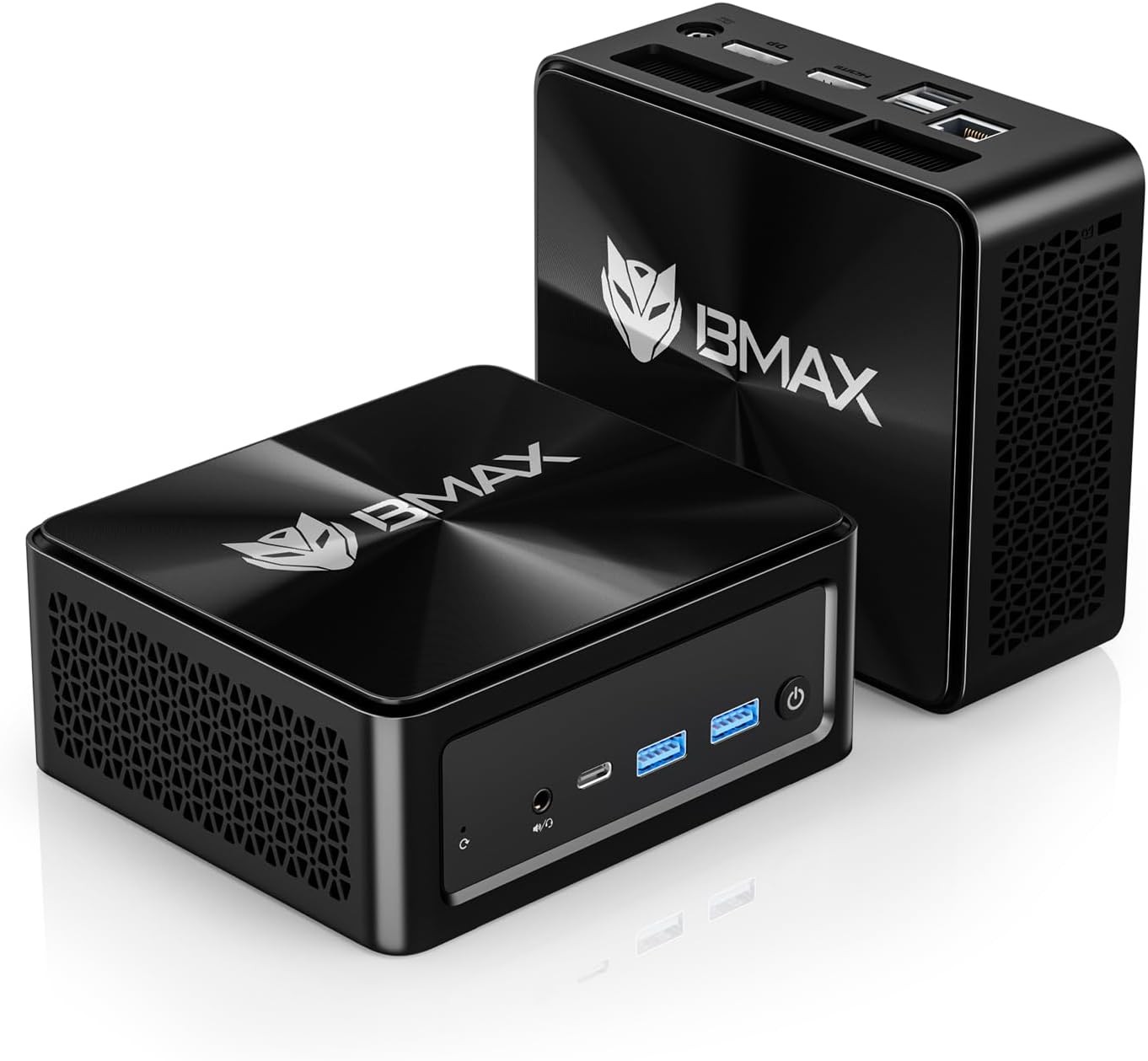

Bmax
MaxMini B9 Power 12900HK
$95
Bmax MaxMini B9 Power 12900HK features Intel i9 12900HK, 24GB RAM, offering compact 0.62L design.
CPU Intel i9 12900HK
Cores / Threads 6 / 20
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 24GB
Speed 4400 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
Size 125×112×44mm
Vol 0.62L

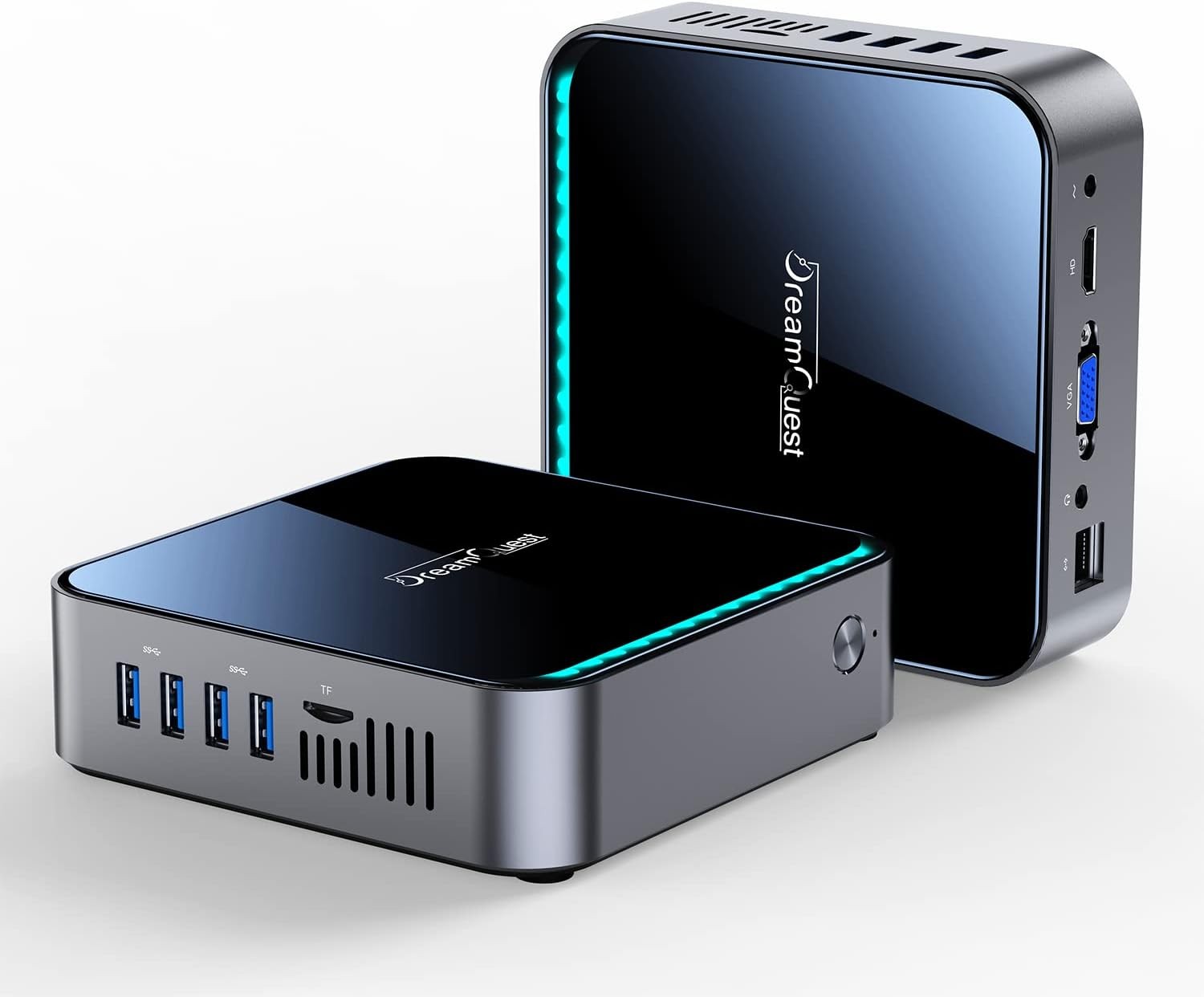

DreamQuest
Mini PC J4125
DreamQuest Mini PC J4125 features Intel Celeron J4125, 8GB RAM.
CPU Intel Celeron J4125
Cores / Threads – / 4
Socket Soldered
GPU Intel Intel UHD 600
RAM 8GB

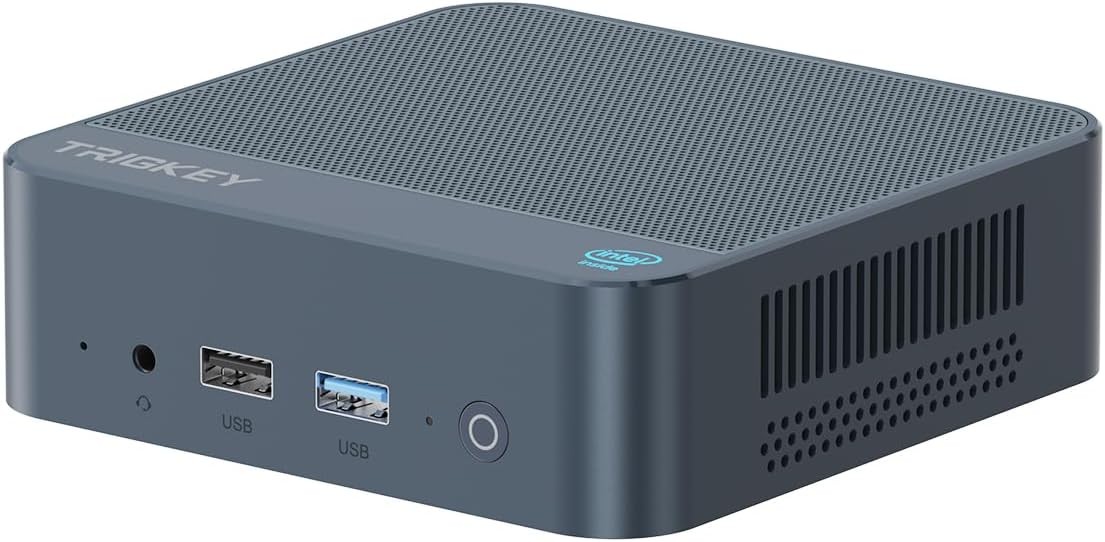

Trigkey
