HP
Z2 Mini G4
CPU Xeon E-2176G
GPU Intel UHD P630
Max RAM 64GB
Drives 2
Seller Ebay
The HP Z2 Mini G4 is a mini PC powered by the Intel Xeon E-2176G (8th gen). It features 6 performance cores and 12 threads and a LGA1151 socket. Graphics are handled by the integrated Intel Intel UHD P630. Supports up to 64GB of RAM across 2 slots at 2666 MT/s with ECC support. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 216 × 216 × 58mm (2.71L). Uses a Brick PSU (135W).
CPU & Performance
CPUXeon E-2176G
Generation8th
P-Cores6
Threads12
Single-core53
Multi-core20
SocketLGA1151
GPU
GPUIntel UHD P630
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed2666 MT/s
ECC supportYes
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
Physical
Dimensions216 × 216 × 58 mm
Volume2.71L
Fan size90mm
Warranty1 yr
Power
PSU typeBrick
PSU135W
Discover More
Minisforum
BD770i ITX
$465
Minisforum BD770i ITX features AMD r7 7745HX, 64GB RAM.
CPU AMD r7 7745HX
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA2 610M
RAM 64GB / 2slots
Speed 5200 MT/s
Drives 2 (2 NVMe)
Ethernet 1 (2.5G)
Size 170×170×50mm
Vol 1.45L

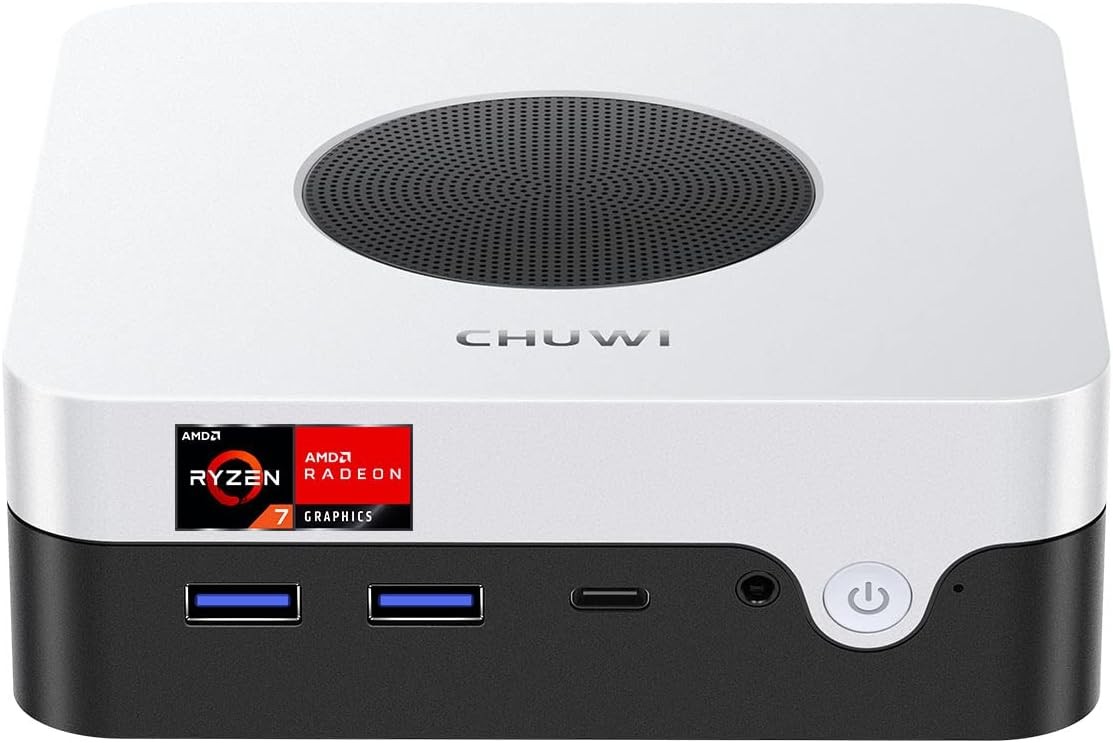

Chuwi
