HP
Z2 Mini G9 14500
CPU i5 14500
GPU Intel UHD 770
Max RAM 64GB
Drives 2
From $800
Seller HP

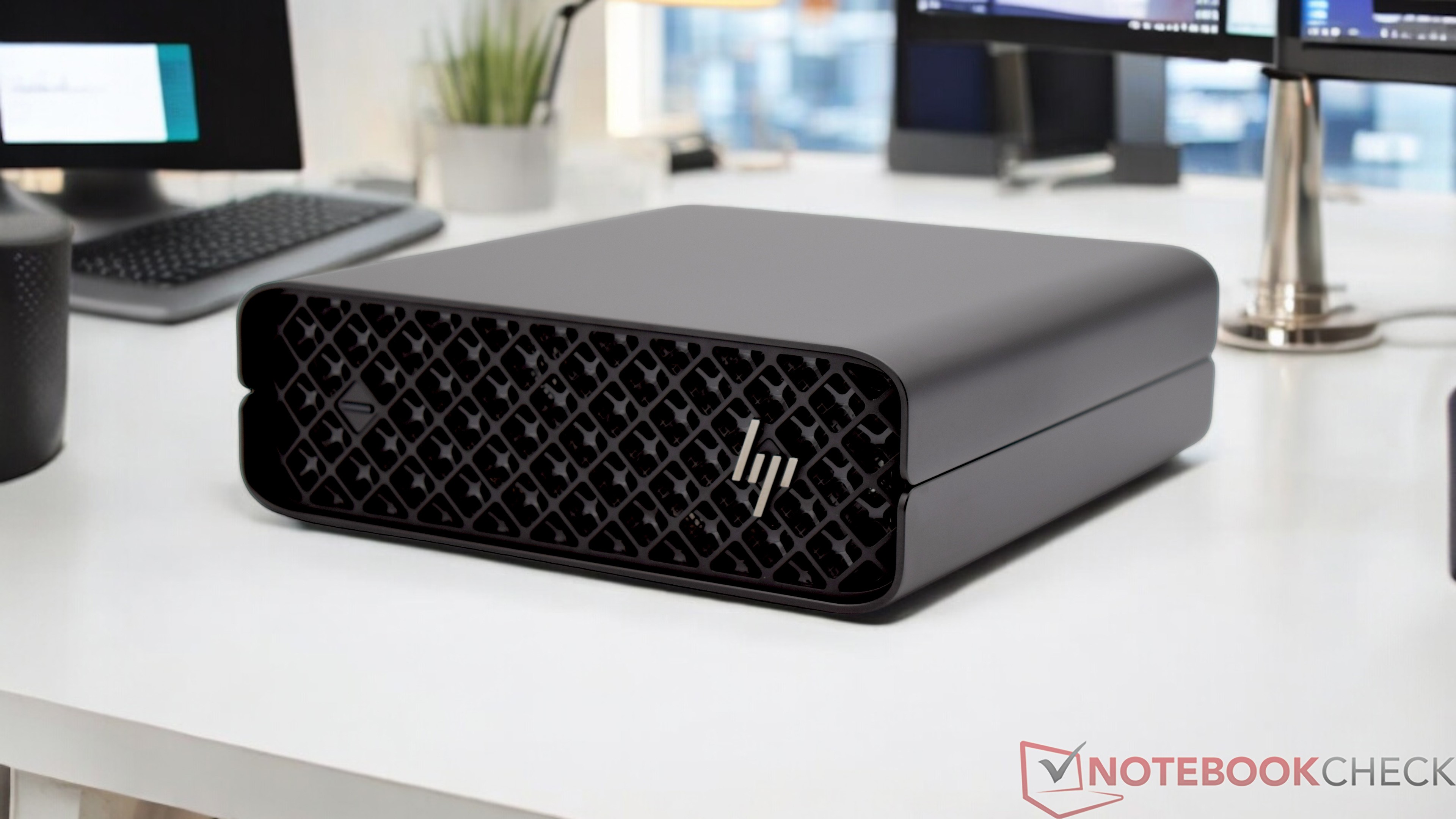

The HP Z2 Mini G9 14500 is a mini PC powered by the Intel i5 14500 (14th gen). It features 6 performance cores and 20 threads and a LGA1700 socket. Graphics are handled by the integrated Intel Intel UHD 770. Supports up to 64GB of RAM across 2 slots at 6400 MT/s with ECC support. Storage capacity of up to 2 drives including 2 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 218 × 211 × 69mm (3.17L). Uses a Brick PSU (280W).
CPU & Performance
CPUi5 14500
Generation14th
P-Cores6
Threads20
Single-core80
Multi-core41
SocketLGA1700
GPU
GPUIntel UHD 770
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed6400 MT/s
ECC supportYes
Storage
Max drives2
NVMe slots2
Gen4 x42
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
Physical
Dimensions218 × 211 × 69 mm
Volume3.17L
Fan size90mm
Warranty3 yr
Power
PSU typeBrick
PSU280W
Pricing
Minimum$1,030
Barebone est.$800
16GB / 512GB$1,030
Discover More
Empowered PC
Envision M1 14900
$600
Empowered PC Envision M1 14900 features Intel i9 14900, 64GB RAM.
CPU Intel i9 14900
Cores / Threads 8 / 32
Socket LGA1700
GPU Intel Intel UHD 770
RAM 64GB / 2slots
Speed 4800 MT/s
Drives 1 (1 NVMe)
Ethernet 1 (1G)
Size 198×196×51mm
Vol 1.98L

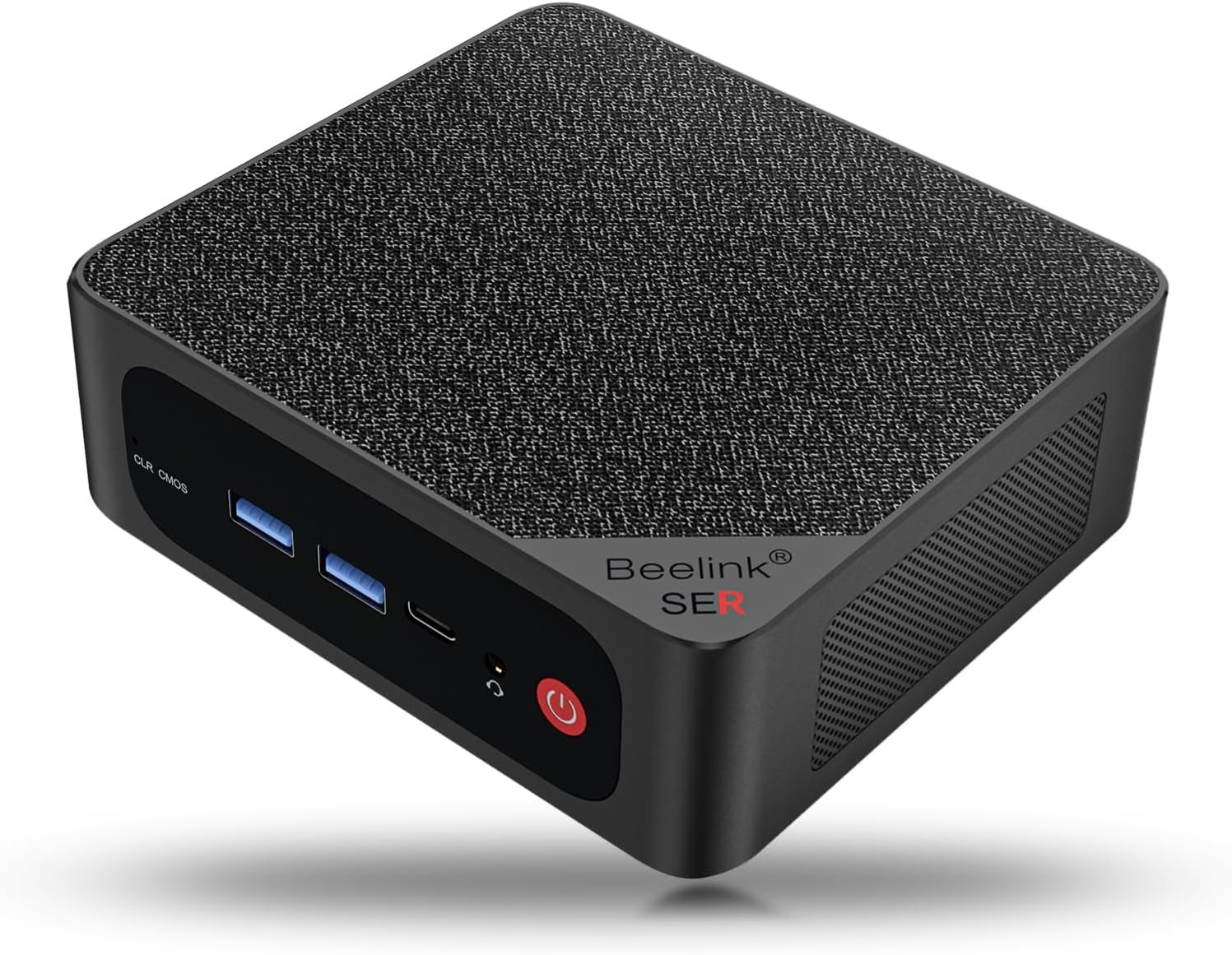

Beelink
