Intel
Consumer NUC11PAHi5
CPU i5 1135G7
GPU Iris Xe 80EU
Max RAM 64GB
Drives 3
From $380
Seller Ebay

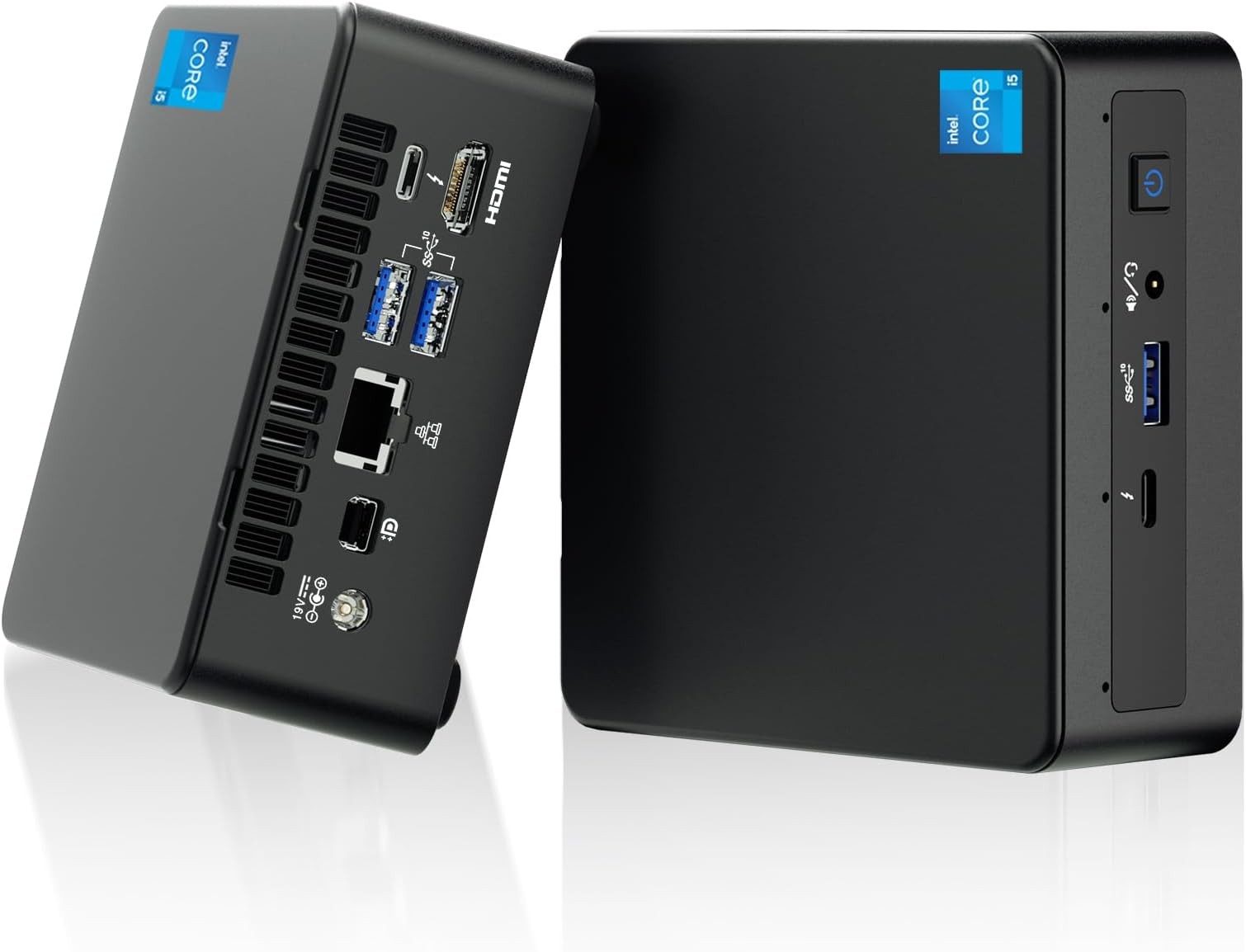

The Intel Consumer NUC11PAHi5 is a mini PC powered by the Intel i5 1135G7 (11th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 117 × 112 × 51mm (0.67L). Uses a Brick PSU (120W), 28W TDP.
CPU & Performance
CPUi5 1135G7
Generation11th
P-Cores4
Threads8
Single-core53
Multi-core14
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardYes
Ports & Connectivity
USB4 40Gbps2
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions117 × 112 × 51 mm
Volume0.67L
Fan size80mm
Warranty3 yr
Power
TDP28W
PSU typeBrick
PSU120W
