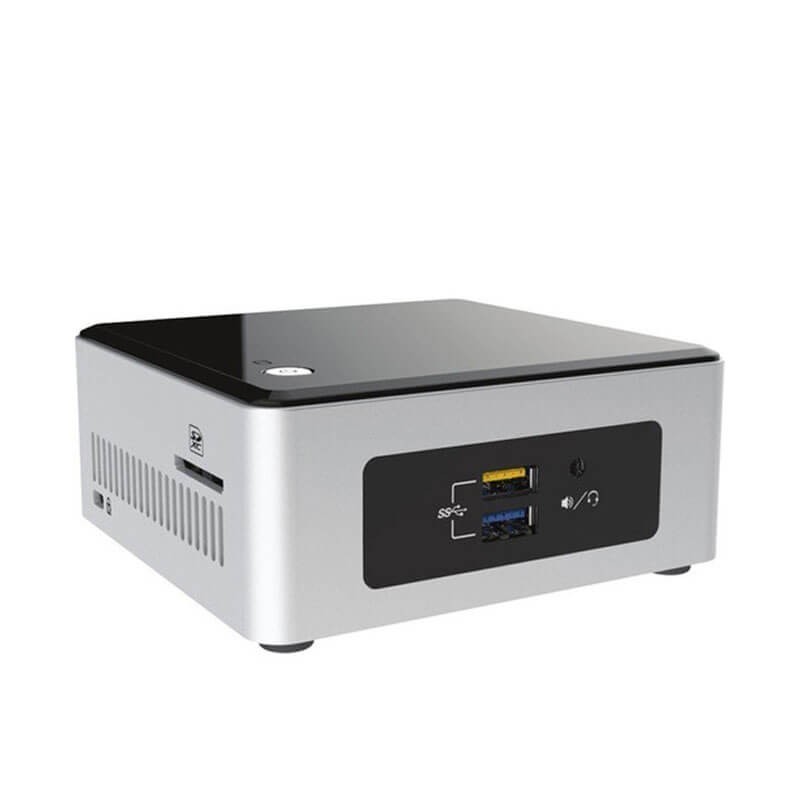

Intel
NUC5PPYH
CPU Celeron N3700
GPU Intel HD 16EU
Max RAM 8GB
Drives 2
From $120
Seller Ebay
The Intel NUC5PPYH is a mini PC powered by the Intel Celeron N3700 (5th gen). It features a soldered CPU. Graphics are handled by the integrated Intel Intel HD 16EU. Supports up to 8GB of RAM across 1 slot at 1600 MT/s. Storage capacity of up to 2 drives including 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 112 × 51mm (0.66L). Uses a Brick PSU (65W), 6W TDP.
CPU & Performance
CPUCeleron N3700
Generation5th
Threads4
Single-core13
Multi-core2
Socket0
GPU
GPUIntel HD 16EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM8GB
RAM slots1
Max speed1600 MT/s
ECC supportNo
Storage
Max drives2
2.5" SATA1
SD cardYes
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions115 × 112 × 51 mm
Volume0.66L
Fan size55mm
Power
TDP6W
PSU typeBrick
PSU65W
Discover More

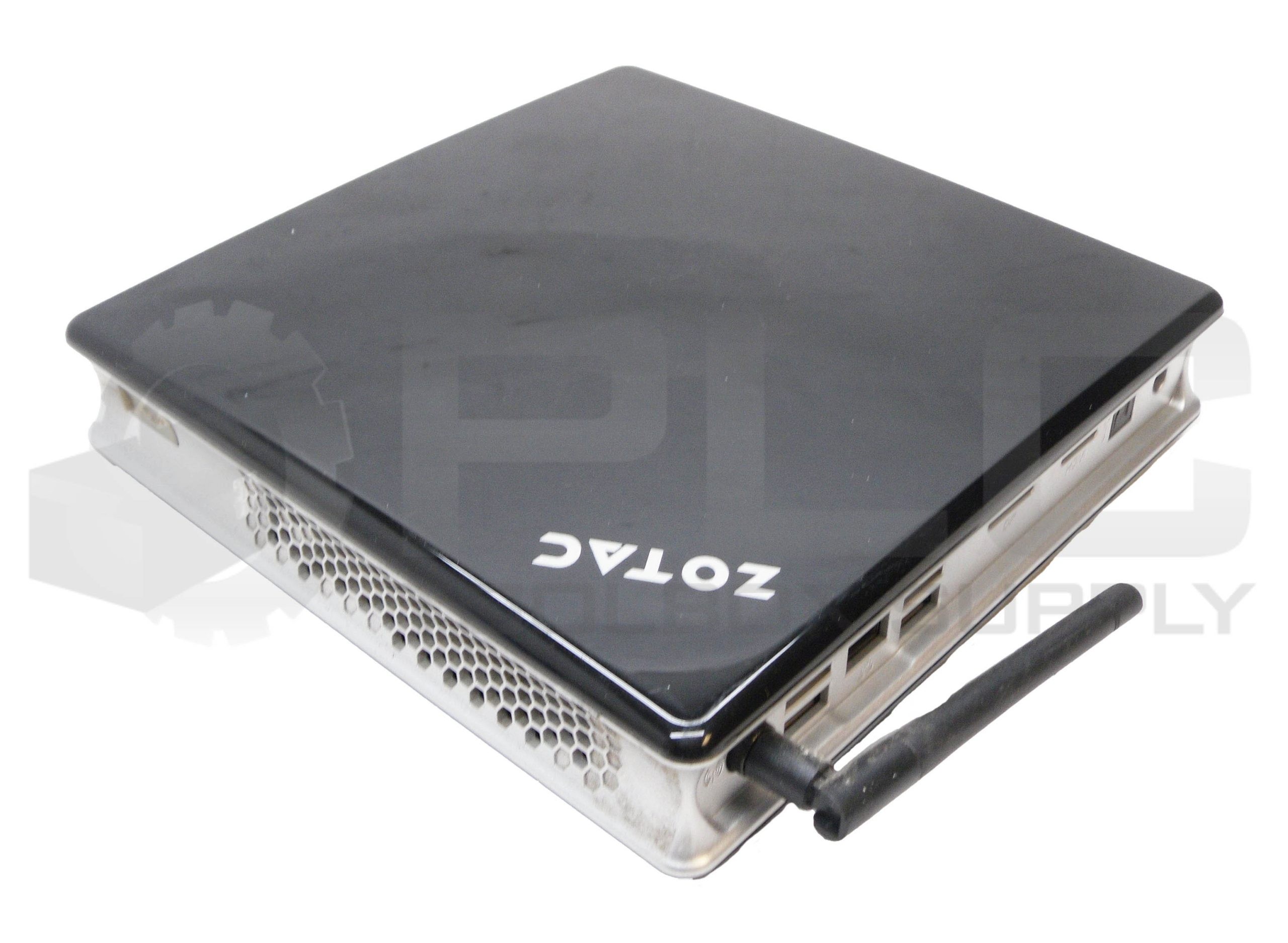

ZOTAC
ZBOX-AD04
$345
ZOTAC ZBOX-AD04.

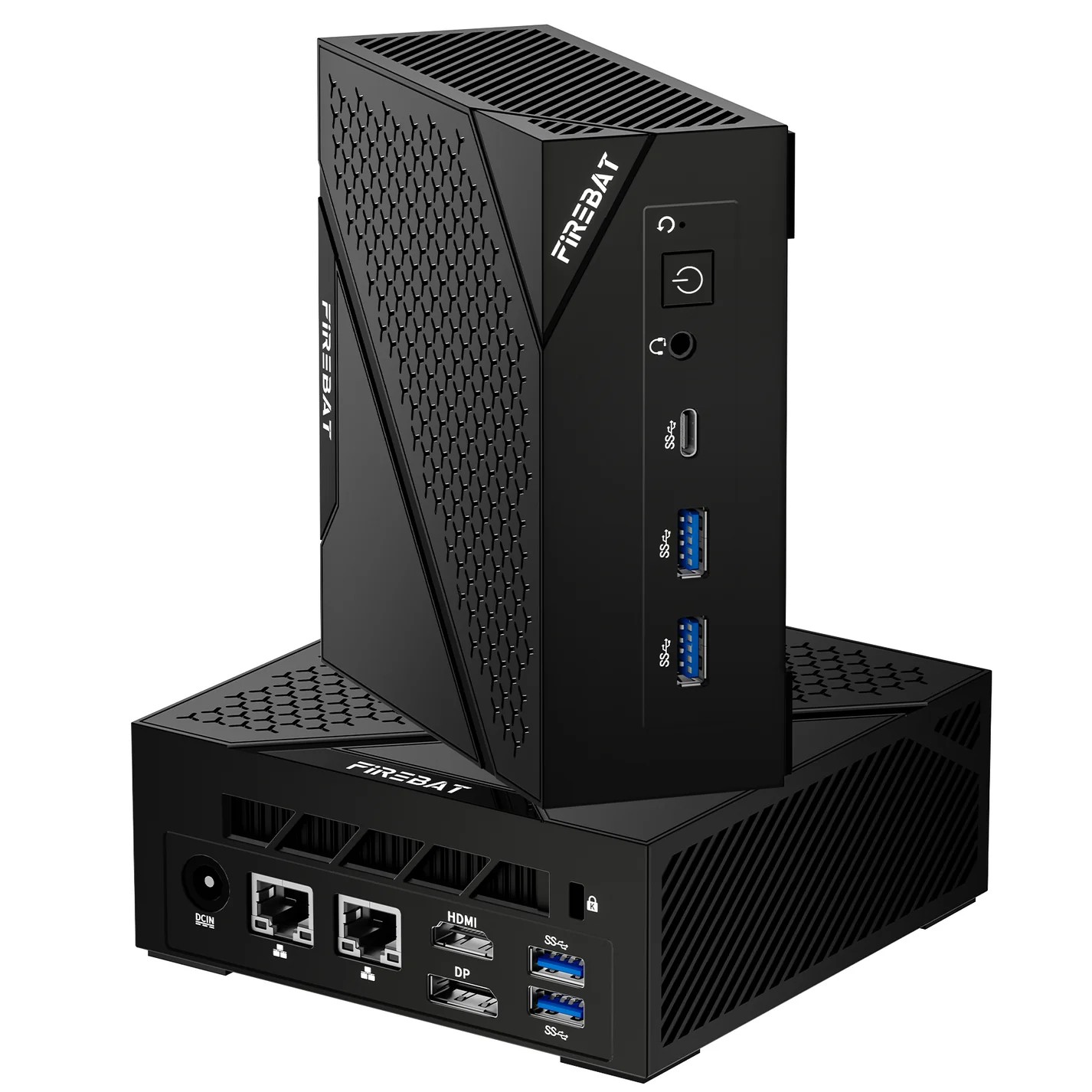

FIREBAT
AM02 3750H
$108
FIREBAT AM02 3750H features AMD r7 3750H.
CPU AMD r7 3750H
Cores / Threads 4 / 8
Socket Soldered
GPU AMD Vega 10

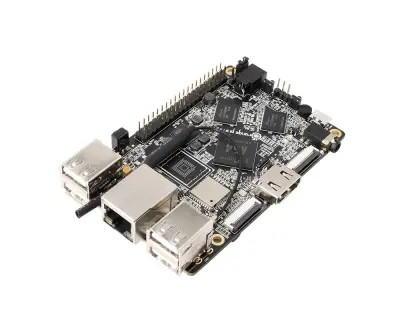

Orange Pi
