Intel
NUC5i3RYH
CPU i3 5010U
GPU Intel HD 5500
Max RAM 16GB
Drives 2
From $130
Seller Ebay
The Intel NUC5i3RYH is a mini PC powered by the Intel i3 5010U (5th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel HD 5500. Supports up to 16GB of RAM across 2 slots at 1600 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 112 × 51mm (0.66L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi3 5010U
Generation5th
P-Cores2
Threads4
Single-core24
Multi-core3
Socket0
GPU
GPUIntel HD 5500
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM16GB
RAM slots2
Max speed1600 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions115 × 112 × 51 mm
Volume0.66L
Fan size55mm
Power
TDP15W
PSU typeBrick
PSU65W
Discover More
GMKtec
AD-GP1
$480
GMKtec AD-GP1, offering OCuLink and USB4.
Socket Soldered
GPU AMD 7600M XT
Size 164×111×40mm
Vol 0.73L
AOOSTAR
GEM10 7840HS
$570
AOOSTAR GEM10 7840HS features AMD r7 7840HS, 32GB RAM, offering 2× 2.5G Ethernet and OCuLink.
CPU AMD r7 7840HS
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M
RAM 32GB
Speed 6400 MT/s
Drives 3 (3 NVMe)
Ethernet 2 (2.5G)
Size 107×107×60mm
Vol 0.69L

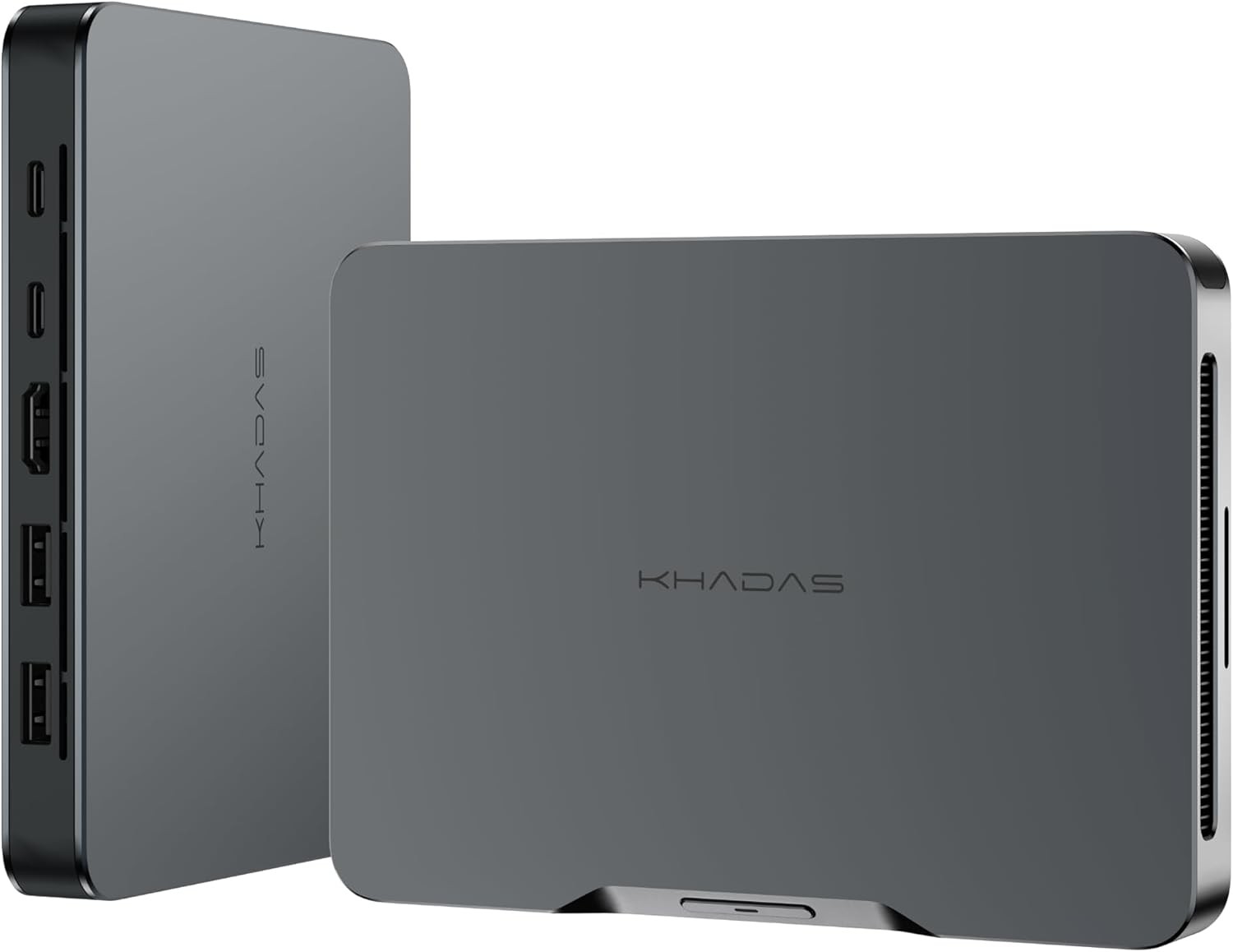

Khadas
