Intel
NUC6i5SYH
CPU i5 6260U
GPU Iris Graphics 540
Max RAM 32GB
Drives 3
From $85
Seller Ebay

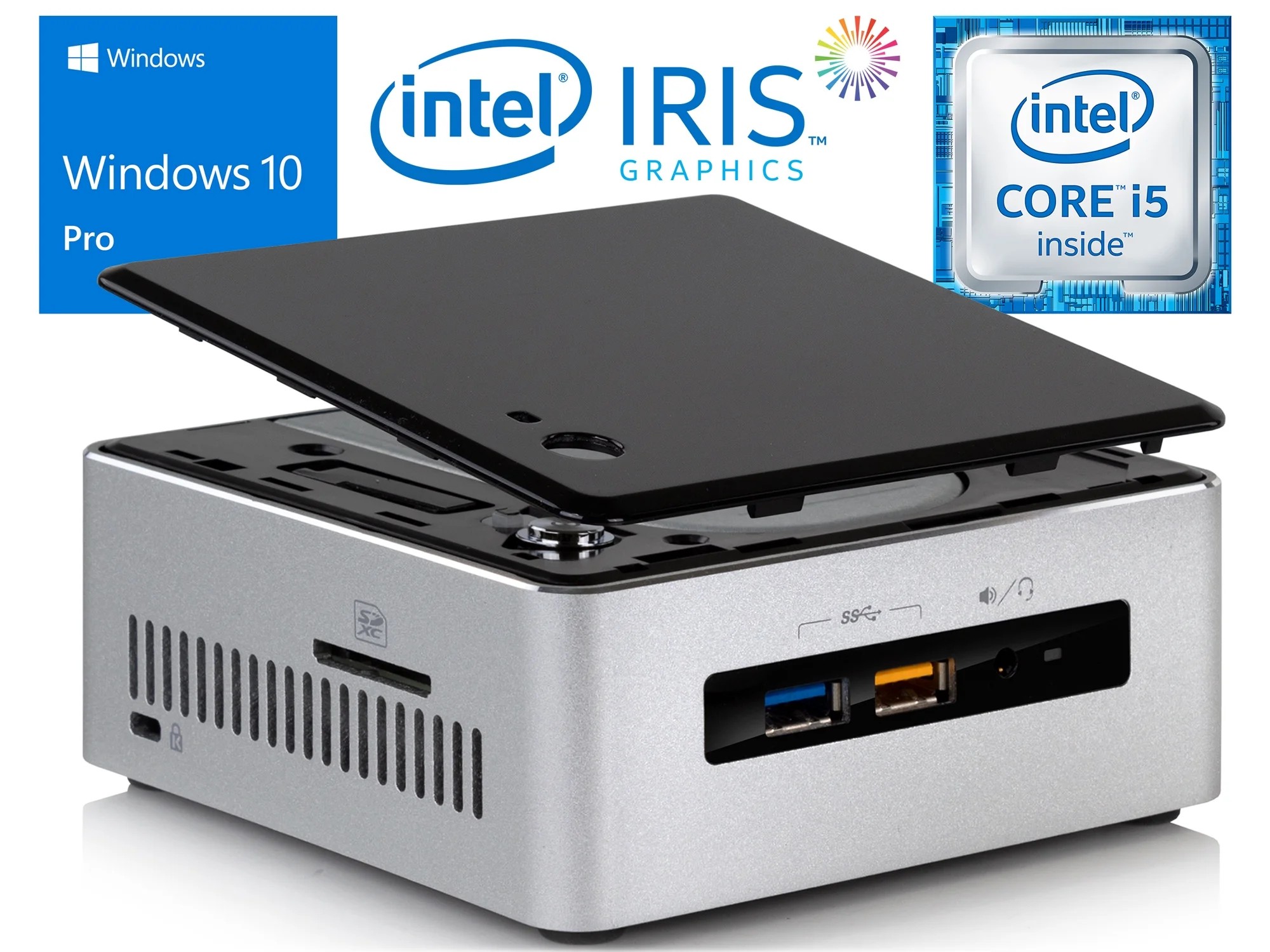

The Intel NUC6i5SYH is a mini PC powered by the Intel i5 6260U (6th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Graphics 540. Supports up to 32GB of RAM across 2 slots at 2133 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 112 × 51mm (0.66L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi5 6260U
Generation6th
P-Cores2
Threads4
Single-core33
Multi-core5
Socket0
GPU
GPUIris Graphics 540
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2133 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardYes
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions115 × 112 × 51 mm
Volume0.66L
Fan size55mm
Power
TDP15W
PSU typeBrick
PSU65W
Discover More
Geekom
Mini IT11/GM11i7T 1165G7
$550
Geekom Mini IT11/GM11i7T 1165G7 features Intel i7 1165G7, 64GB RAM, offering USB4 and compact 0.71L design.
CPU Intel i7 1165G7
Cores / Threads 4 / 8
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (2.5G)
PSU Brick
Size 117×112×54mm
Vol 0.71L
Asus

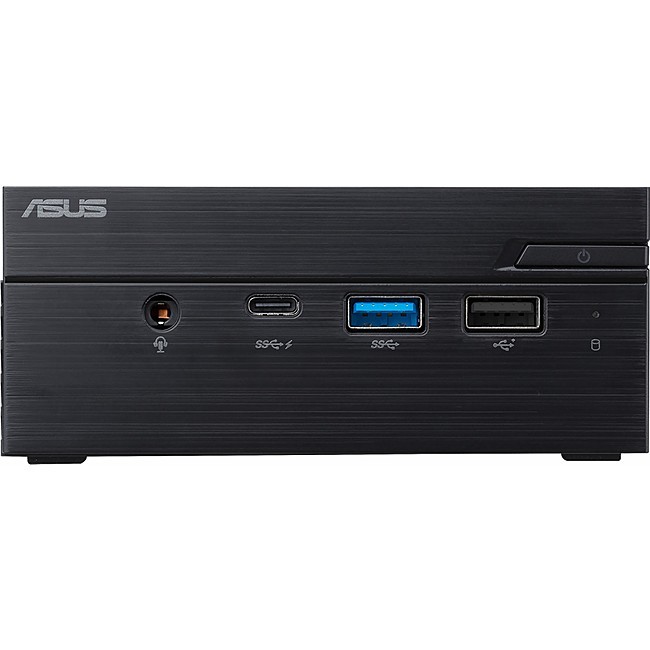

PN60 8130U
