Mini PC DataBase

Intel NUC7i3BNHX1

Intel

NUC7i3BNHX1

CPU i3 7100U

GPU Intel HD 620

Max RAM 32GB

Drives 3

From $345

Seller Ebay

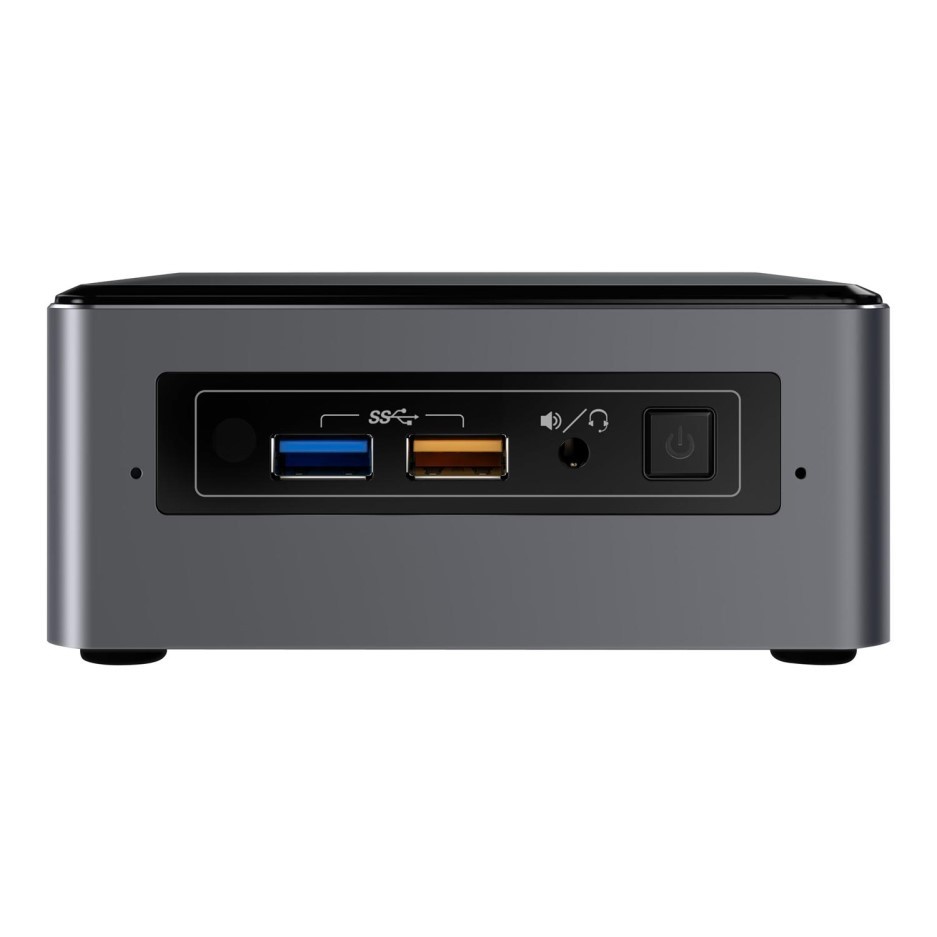

The Intel NUC7i3BNHX1 is a mini PC powered by the Intel i3 7100U (7th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel HD 620. Supports up to 32GB of RAM across 2 slots at 2133 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 111 × 51mm (0.65L). Uses a Brick PSU (65W), 15W TDP.

CPU & Performance

CPUi3 7100U

Generation7th

P-Cores2

Threads4

Single-core27

Multi-core4

Socket0

GPU

GPUIntel HD 620

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM32GB

RAM slots2

Max speed2133 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots1

Gen3 x41

2.5" SATA1

SD cardYes

Ports & Connectivity

Max displays2

Network

Max Ethernet1G

1G ports1

vProN

Physical

Dimensions115 × 111 × 51 mm

Volume0.65L

Fan size55mm

Power

TDP15W

PSU typeBrick

PSU65W

Notes

Intel Optane m.2 Module 16GB

Discover More

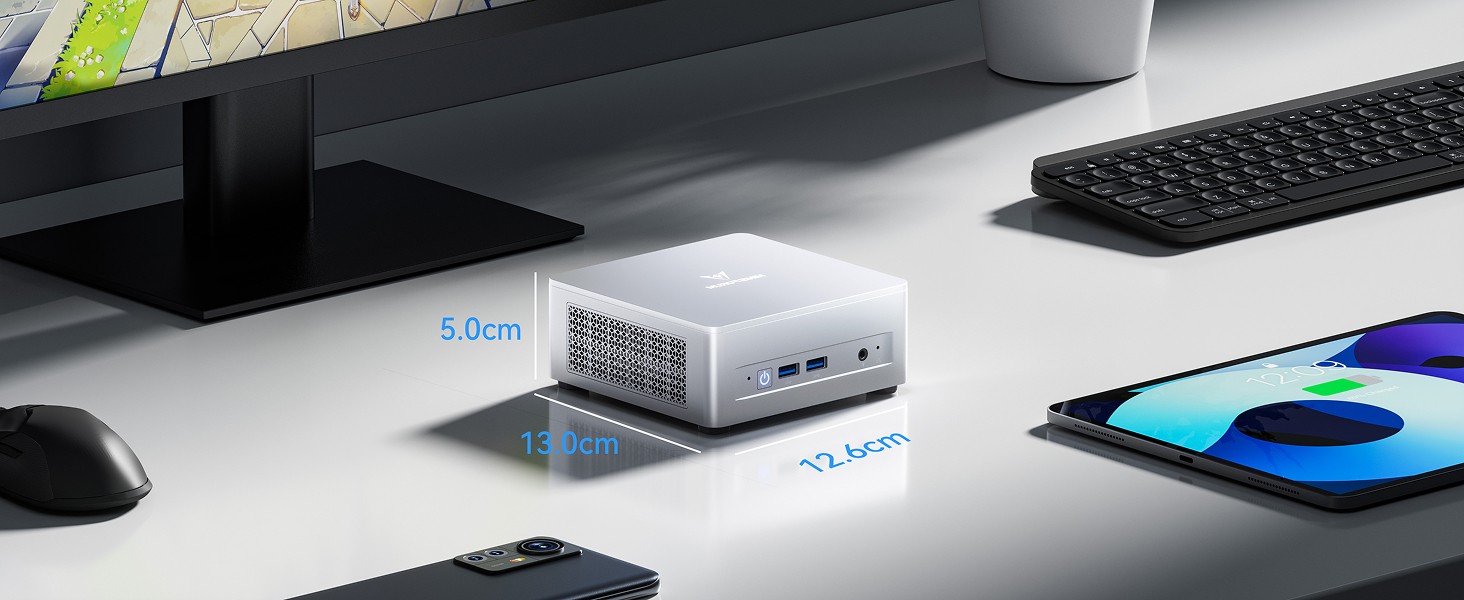

Minisforum UM750L 32GB

UM750L 32GB

Minisforum UM750L 32GB features AMD r5 7545U, 32GB RAM, offering USB4 and compact 0.85L design.

CPU AMD r5 7545U

Cores / Threads 6 / 12

Socket Soldered

GPU AMD RDNA3 740M

Speed 6400 MT/s

Drives 2 (2 NVMe)

Ethernet 1 (2.5G)

Size 130×126×52mm

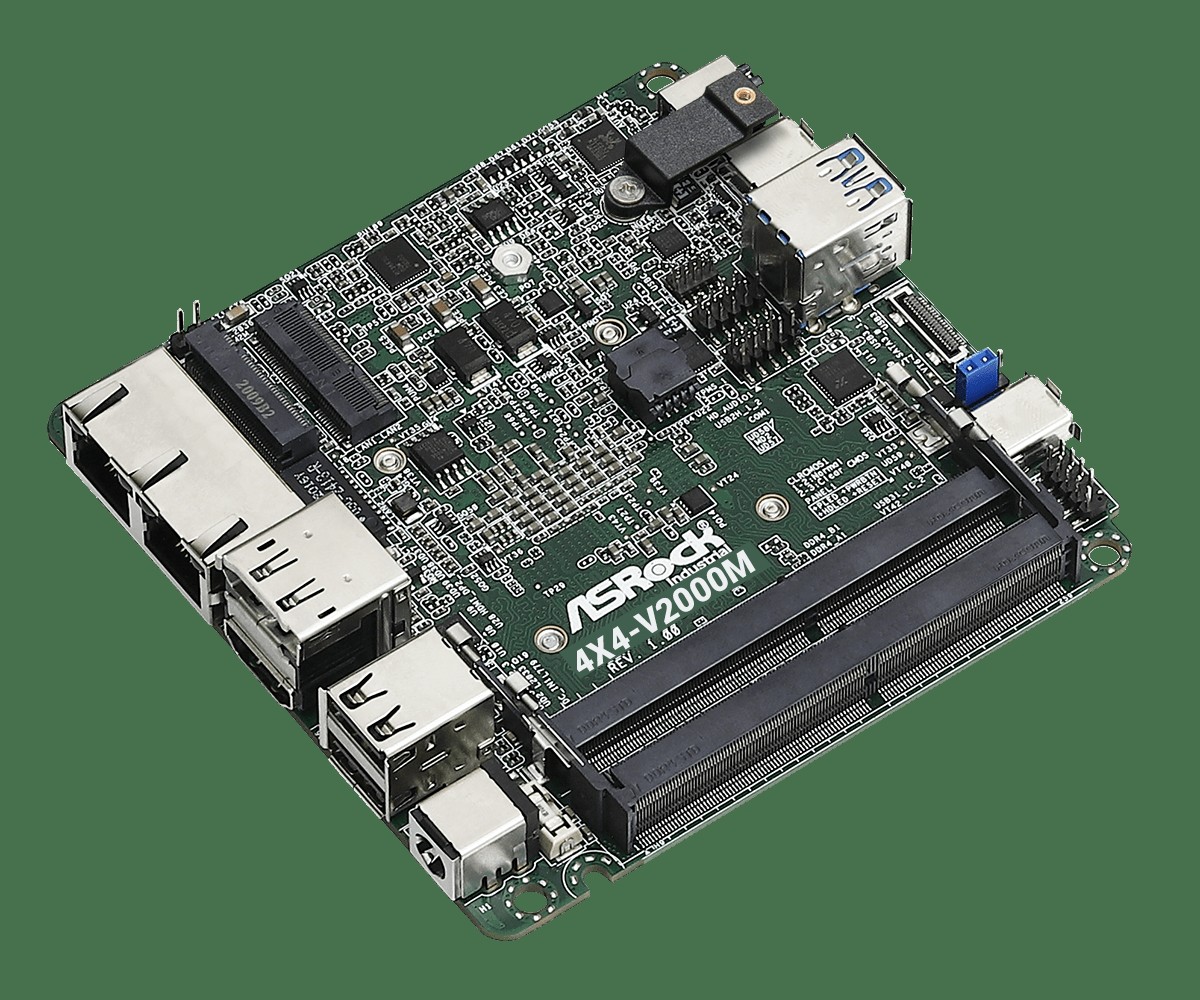

Asrock 4x4 box V2000M
