Intel
NUC7i7BNH
CPU i7 7567U
GPU Iris Plus 650
Max RAM 32GB
Drives 3
From $160
Seller Ebay

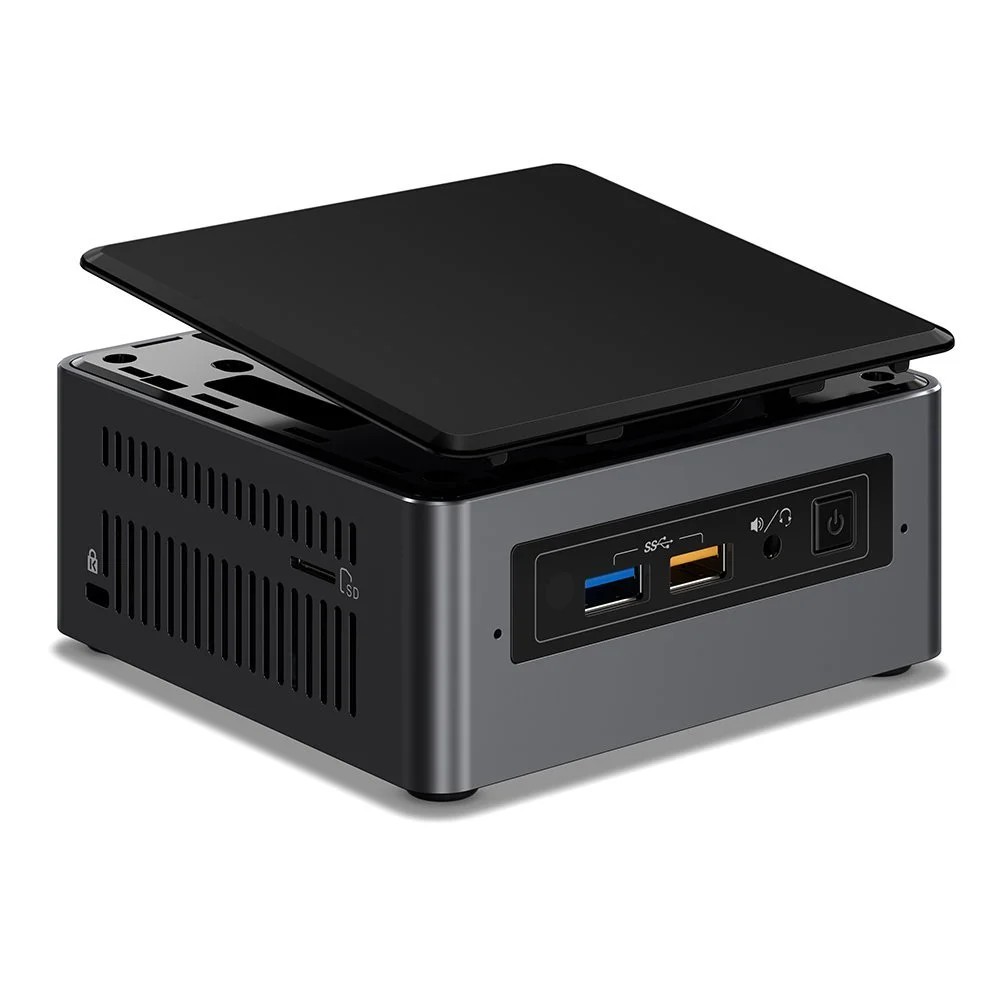

The Intel NUC7i7BNH is a mini PC powered by the Intel i7 7567U (7th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Plus 650. Supports up to 32GB of RAM across 2 slots at 2133 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 112 × 51mm (0.66L). Uses a Brick PSU (65W), 28W TDP.
CPU & Performance
CPUi7 7567U
Generation7th
P-Cores2
Threads4
Single-core43
Multi-core6
Socket0
GPU
GPUIris Plus 650
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2133 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardYes
Ports & Connectivity
USB4 40Gbps1
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions115 × 112 × 51 mm
Volume0.66L
Fan size55mm
Power
TDP28W
PSU typeBrick
PSU65W
