Intel
NUC7i7DNHE
CPU i7 8650U
GPU Intel UHD 620
Max RAM 32GB
Drives 2
From $300
Seller Ebay

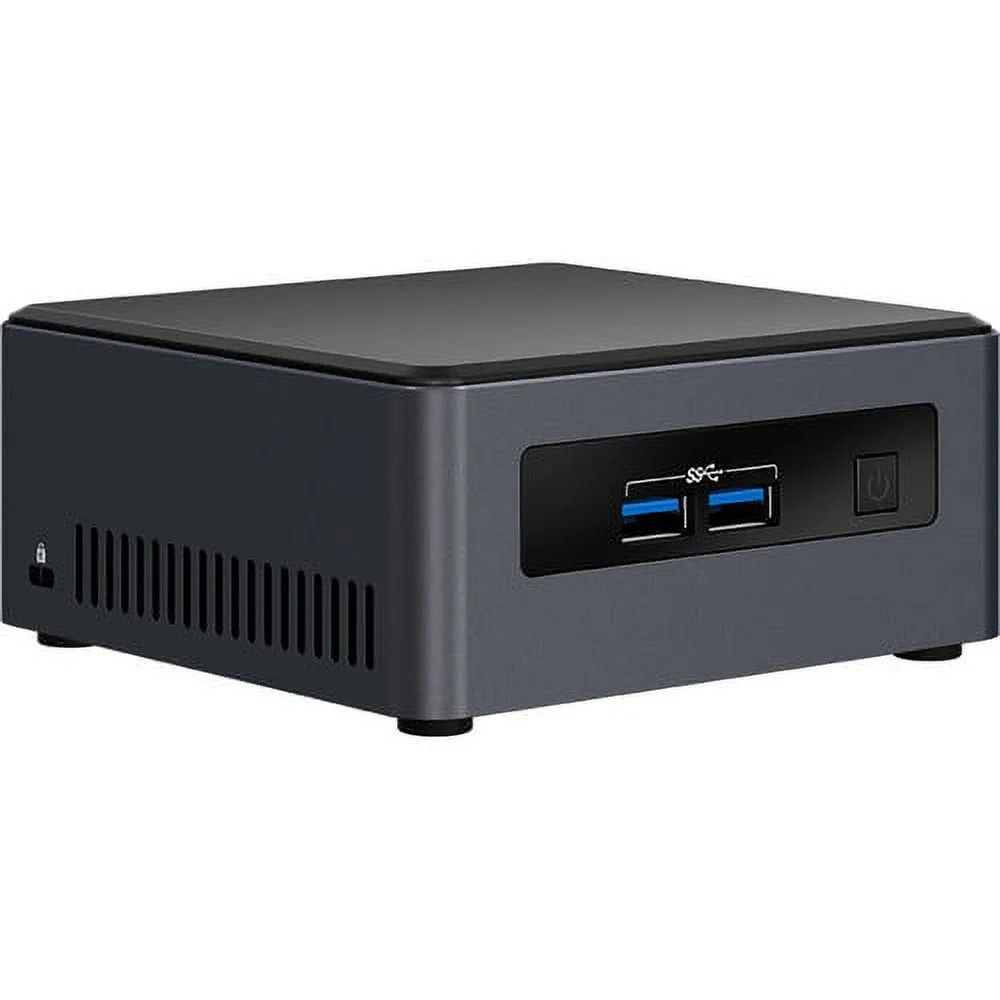

The Intel NUC7i7DNHE is a mini PC powered by the Intel i7 8650U (7th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 111 × 52mm (0.66L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi7 8650U
Generation7th
P-Cores4
Threads8
Single-core42
Multi-core9
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProY
Physical
Dimensions115 × 111 × 52 mm
Volume0.66L
Fan size55mm
Power
TDP15W
PSU typeBrick
PSU65W
Discover More
CWWK/Topton
1265U 6x2.5G
CWWK/Topton 1265U 6x2.5G features Intel i5 1265U, 64GB RAM, offering 6× 2.5G Ethernet.
CPU Intel i5 1265U
Cores / Threads 4 / 12
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 4 (1 NVMe)
SATA 2×2.5"
Ethernet 6 (2.5G)
Size 145×131×64mm
Vol 1.22L
Chuwi
Corebox X

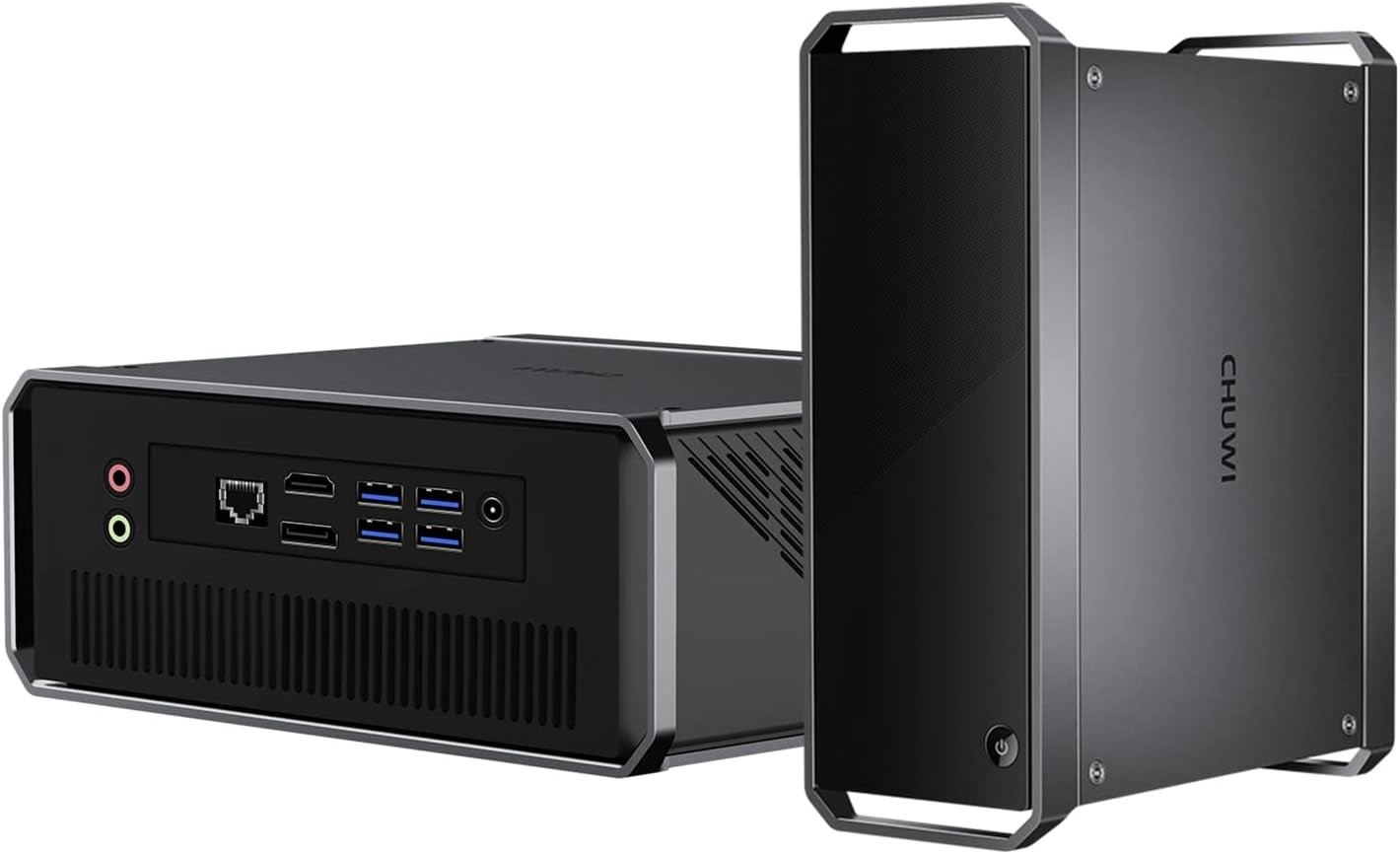

Chuwi Corebox X features Intel i5 8259U, 32GB RAM.
