Intel
NUC8i5BEH
CPU i5 8259U
GPU Iris Plus 655
Max RAM 32GB
Drives 3
From $235
Seller Ebay
The Intel NUC8i5BEH is a mini PC powered by the Intel i5 8259U (8th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Plus 655. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 117 × 112 × 51mm (0.67L). Uses a Brick PSU (90W), 28W TDP.
CPU & Performance
CPUi5 8259U
Generation8th
P-Cores4
Threads8
Single-core44
Multi-core12
Socket0
GPU
GPUIris Plus 655
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardYes
Ports & Connectivity
USB4 40Gbps1
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions117 × 112 × 51 mm
Volume0.67L
Fan size80mm
Warranty3 yr
Power
TDP28W
PSU typeBrick
PSU90W
Discover More
ZOTAC
ZBox-EN072070S Magnus
ZOTAC ZBox-EN072070S Magnus features Intel i7 10750H with NVIDIA Mobile 2070 Super discrete GPU, offering 2× 2.5G Ethernet.
CPU Intel i7 10750H
Cores / Threads 6 / 12
Socket Soldered
GPU NVIDIA Mobile 2070 Super
RAM 64GB / 2slots
Speed 2933 MT/s
Drives 4 (2 NVMe)
SATA 1×2.5"
Ethernet 2 (2.5G)
PSU Brick
Size 210×203×62mm
Vol 2.64L
HP

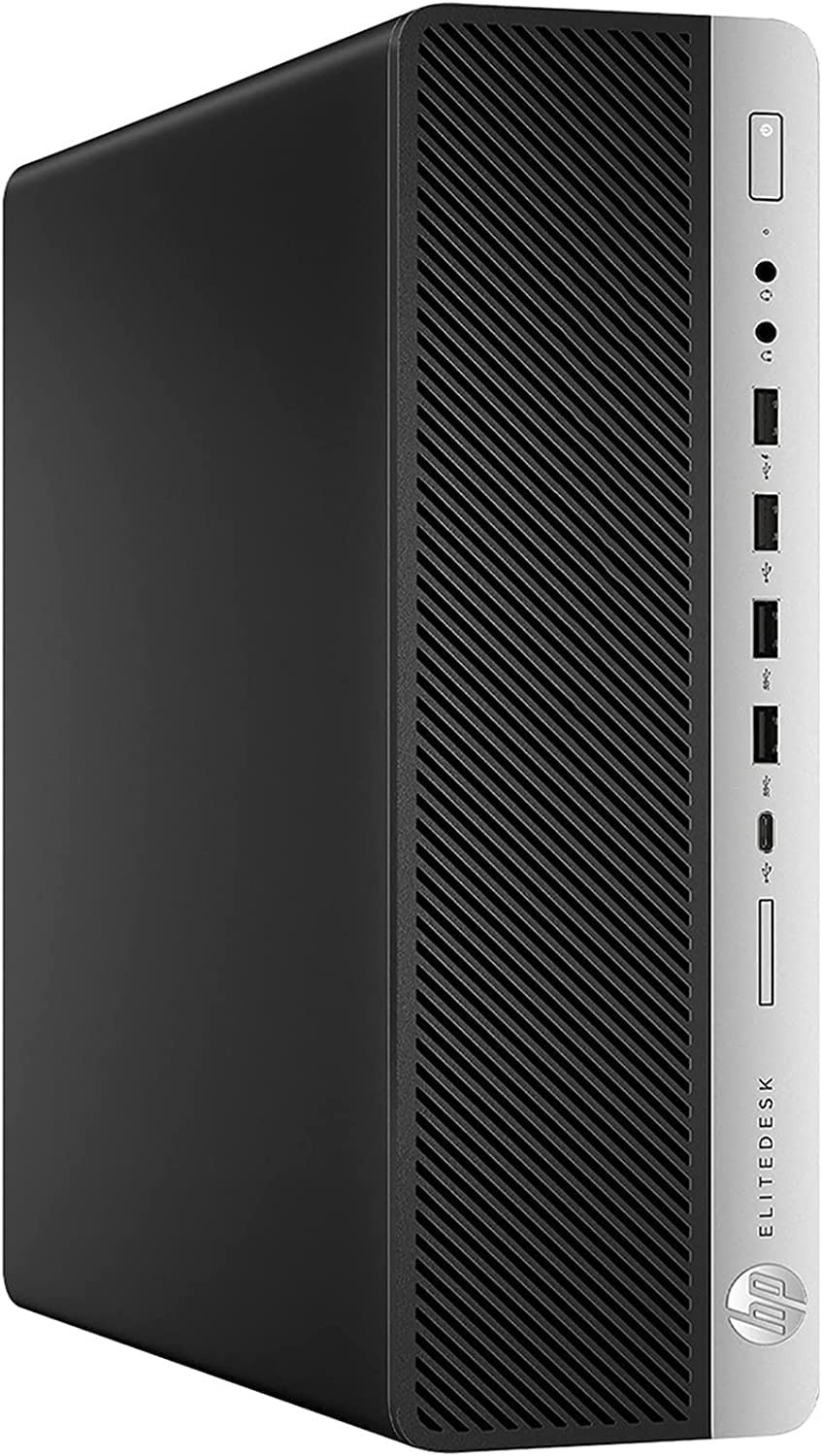

EliteDesk 800 G3 SFF
