Intel

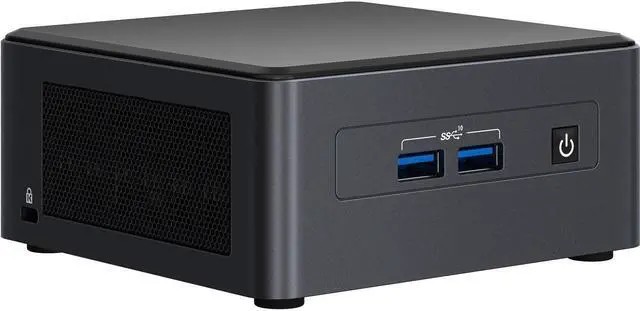

NUC Pro NUC11TNHV7
CPU i7 1185G7
GPU Iris Xe 96EU
Max RAM 64GB
Drives 3
The Intel NUC Pro NUC11TNHV7 is a mini PC powered by the Intel i7 1185G7 (11th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 96EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 117 × 112 × 54mm (0.71L). Uses a Brick PSU (120W), 28W TDP.
CPU & Performance
CPUi7 1185G7
Generation11th
P-Cores4
Threads8
Single-core56
Multi-core15
Socket0
GPU
GPUIris Xe 96EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps2
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProY
Physical
Dimensions117 × 112 × 54 mm
Volume0.71L
Fan size80mm
Warranty3 yr
Power
TDP28W
PSU typeBrick
PSU120W
Discover More
Bosgame
P3 GVP7600
$950
Bosgame P3 GVP7600 features AMD r9 6900HX, 64GB RAM, offering 3× 2.5G Ethernet and USB4.
CPU AMD r9 6900HX
Cores / Threads 8 / 16
Socket Soldered
GPU AMD 7600M XT
RAM 64GB / 2slots
Speed 4800 MT/s
Drives 4 (3 NVMe)
Ethernet 3 (2.5G)
PSU Brick
Size 126×113×42mm

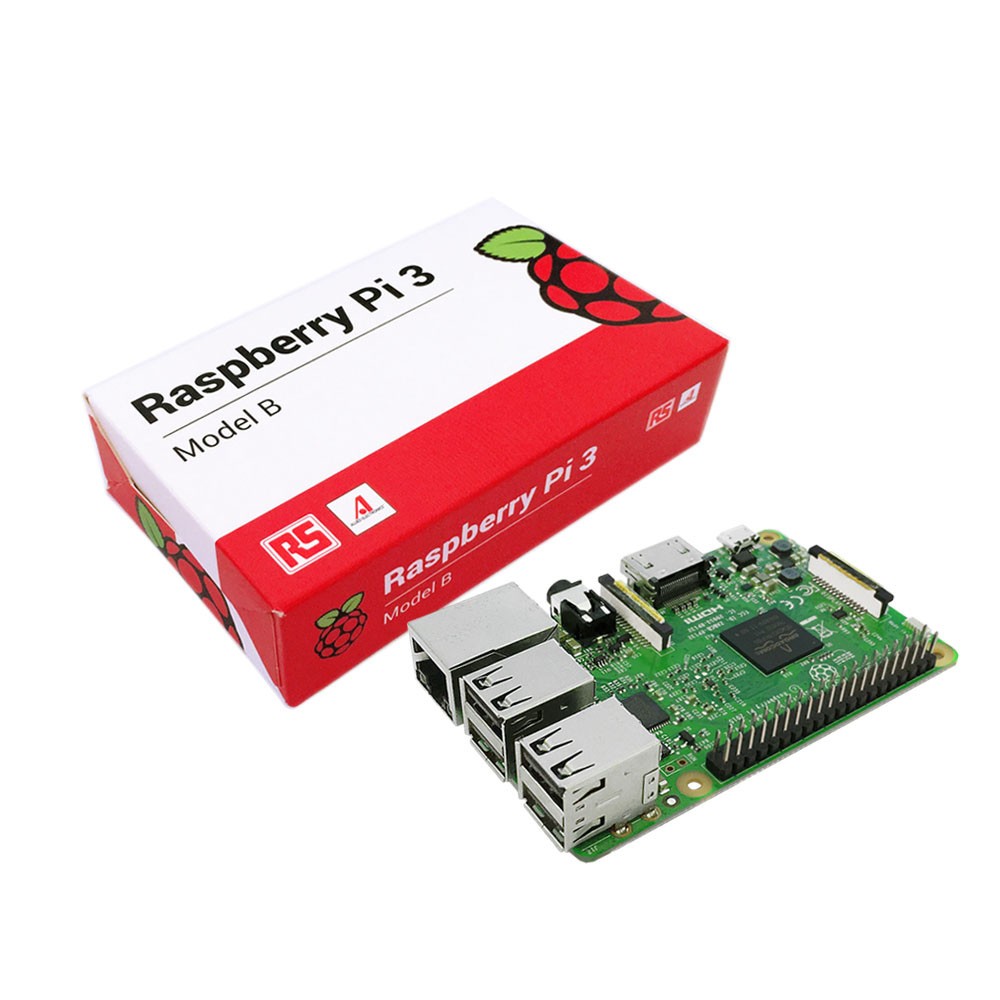

Raspberry Pi
