Lenovo
M80q Tiny
CPU Pentium G6500T
GPU Intel UHD 630
Drives 2

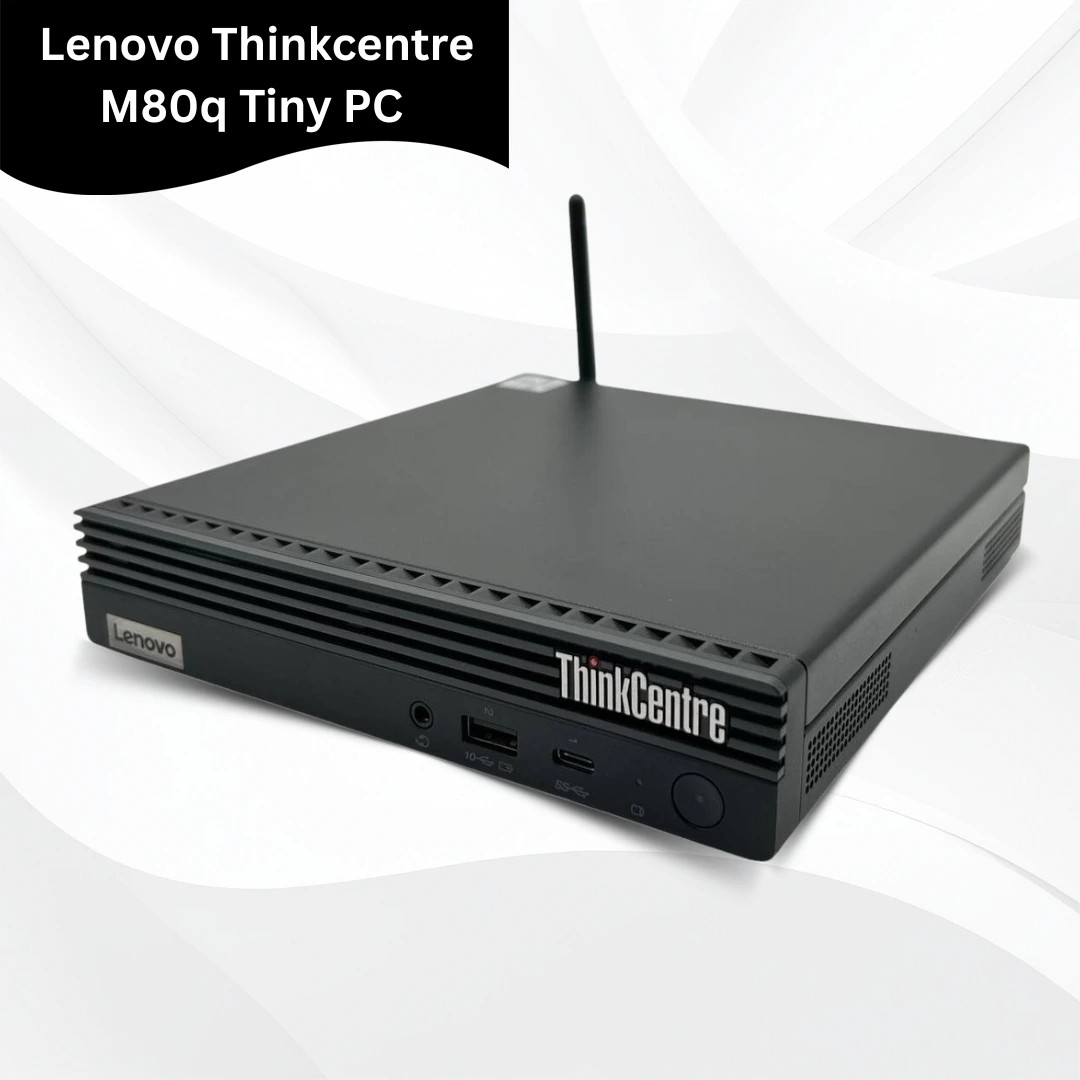

The Lenovo M80q Tiny is a mini PC powered by the Intel Pentium G6500T (10th gen). It features 2 performance cores and 4 threads and a LGA1200 socket. Graphics are handled by the integrated Intel Intel UHD 630. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 183 × 179 × 35mm (1.15L). Uses a Brick PSU.
CPU & Performance
CPUPentium G6500T
Generation10th
P-Cores2
Threads4
Single-core44
Multi-core6
SocketLGA1200
GPU
GPUIntel UHD 630
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
RAM slots2
Max speed2666 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
Physical
Dimensions183 × 179 × 35 mm
Volume1.15L
Fan size80mm
Warranty1 yr
Power
PSU typeBrick
Notes
Oct 28: optional display ports up to four displays
