Mini PC DataBase

MSI Cubi NUC 13MMQG 1345U

MSI

Cubi NUC 13MMQG 1345U

CPU i5 1345U

GPU Iris Xe 80EU

Max RAM 64GB

Drives 4

Seller Newegg

The MSI Cubi NUC 13MMQG 1345U is a mini PC powered by the Intel i5 1345U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 136 × 133 × 50mm (0.90L). Uses a Brick PSU (120W).

CPU & Performance

CPUi5 1345U

Generation13th

P-Cores2

Threads12

Single-core68

Multi-core22

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed5200 MT/s

ECC supportNo

Storage

Max drives4

NVMe slots2

Gen4 x41

Gen3 x41

2.5" SATA1

SD cardYes

Ports & Connectivity

USB4 40Gbps1.25

Max displays4

Network

Max Ethernet2G

2.5G ports2

Physical

Dimensions136 × 133 × 50 mm

Volume0.9L

Fan size80mm

Warranty1 yr

Power

PSU typeBrick

PSU120W

Notes

Supports HDMI CEC power on with compatible MSI monitors, video output is limited to 4k 60hz and not 8k 60hz

Discover More

Asus PN64 12500H

PN64 12500H

Asus PN64 12500H features Intel i5 12500H, 64GB RAM, offering compact 0.90L design.

CPU Intel i5 12500H

Cores / Threads 4 / 16

Socket Soldered

GPU Intel Iris Xe 80EU

RAM 64GB / 2slots

Speed 4800 MT/s

Drives 2 (1 NVMe)

Ethernet 1 (2.5G)

Size 130×120×58mm

iKoolcore R2 Pro 16GB

R2 Pro 16GB

iKoolcore R2 Pro 16GB features Intel i3 N300, 16GB RAM, offering 4× 2.5G Ethernet and ultra-compact 0.27L form factor.

CPU Intel i3 N300

Cores / Threads – / 8

Socket Soldered

GPU Intel Iris Xe 32EU

Speed 4800 MT/s

Drives 1 (1 NVMe)

Ethernet 4 (2.5G)

Size 75×75×48mm

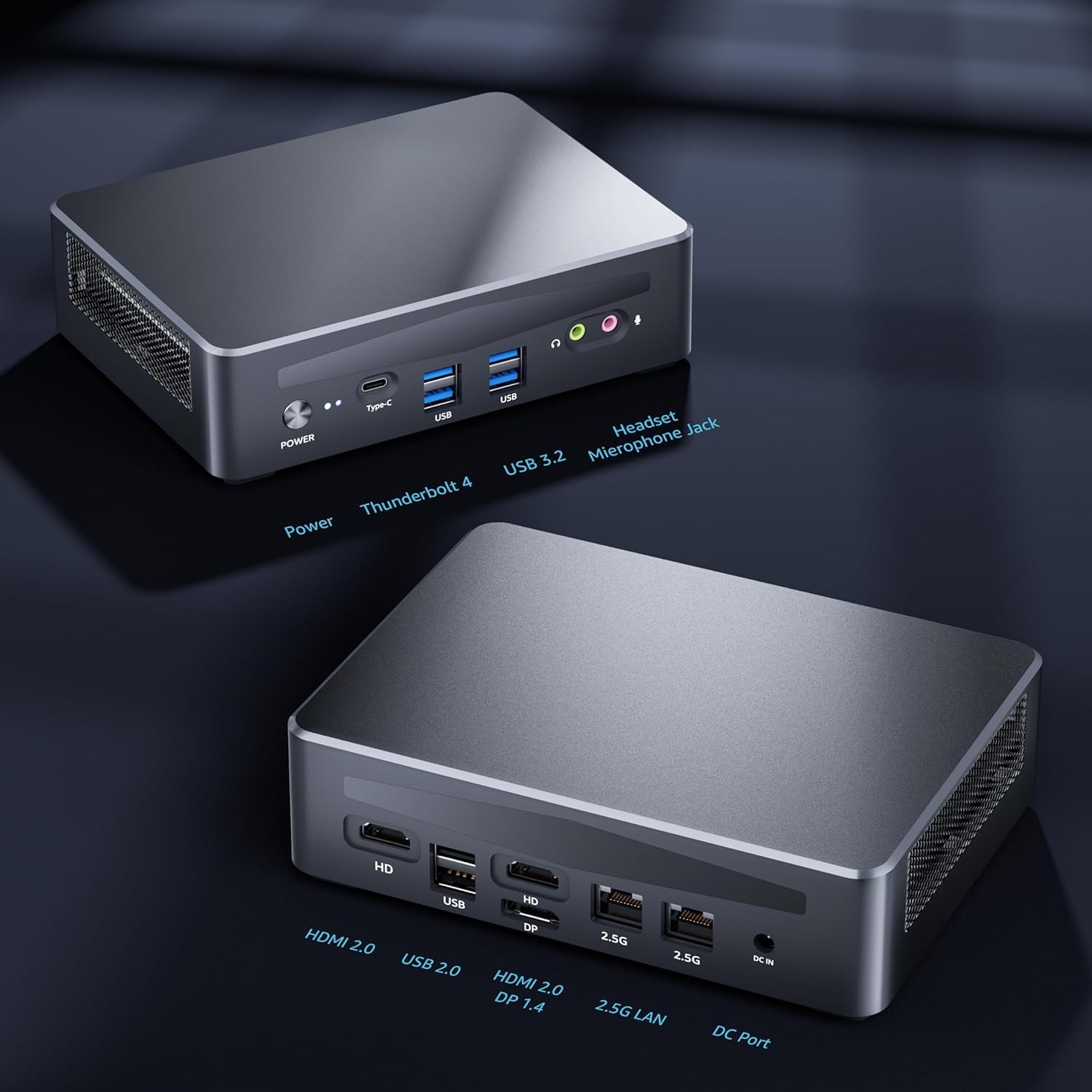

Akasa Turing TN 1135G7

Turing TN 1135G7

Akasa Turing TN 1135G7 features Intel i5 1135G7, 64GB RAM, offering USB4.

CPU Intel i5 1135G7

Cores / Threads 4 / 8

Socket Soldered

GPU Intel Iris Xe 80EU

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 3 (1 NVMe)

Ethernet 1 (2.5G)

Size 248×114×95mm
