Mini PC DataBase

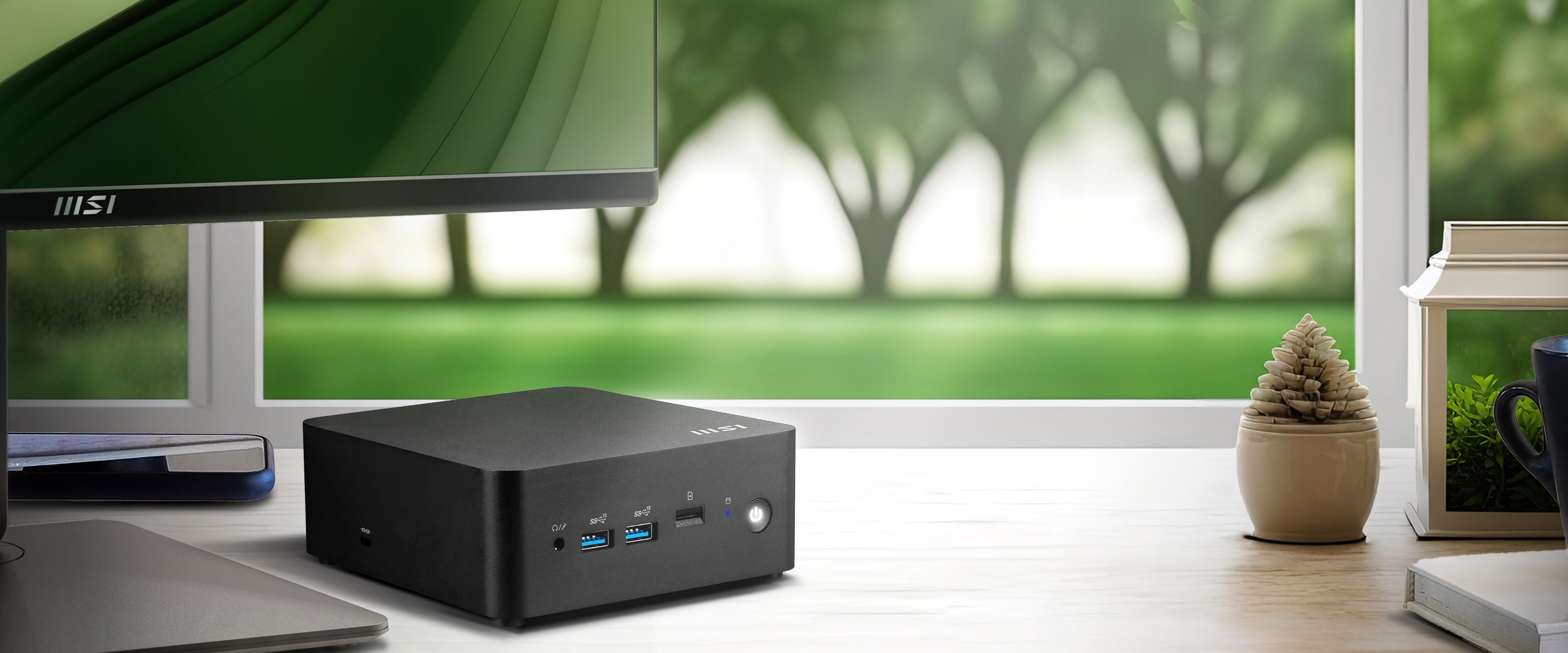

MSI Cubi NUC 13MQ 1345U

MSI

Cubi NUC 13MQ 1345U

CPU i5 1345U

GPU Iris Xe 80EU

Max RAM 64GB

Drives 4

Seller Newegg

The MSI Cubi NUC 13MQ 1345U is a mini PC powered by the Intel i5 1345U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 136 × 133 × 50mm (0.90L). Uses a Brick PSU (120W).

CPU & Performance

CPUi5 1345U

Generation13th

P-Cores2

Threads12

Single-core68

Multi-core22

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed5200 MT/s

ECC supportNo

Storage

Max drives4

NVMe slots2

Gen4 x41

Gen3 x41

2.5" SATA1

SD cardYes

Ports & Connectivity

USB4 40Gbps1.25

Max displays4

Network

Max Ethernet2G

2.5G ports2

Physical

Dimensions136 × 133 × 50 mm

Volume0.9L

Fan size80mm

Warranty1 yr

Power

PSU typeBrick

PSU120W

Notes

Supports HDMI CEC power on with compatible MSI monitors, video output is limited to 4k 60hz and not 8k 60hz

Discover More

Morefine M600 6600H

M600 6600H

Morefine M600 6600H features AMD r5 6600H, 64GB RAM, offering 2× 2.5G Ethernet and USB4.

CPU AMD r5 6600H

Cores / Threads 6 / 12

Socket Soldered

GPU AMD RDNA2 660M

RAM 64GB / 2slots

Speed 4800 MT/s

Drives 3 (2 NVMe)

Ethernet 2 (2.5G)

Size 147×145×41mm

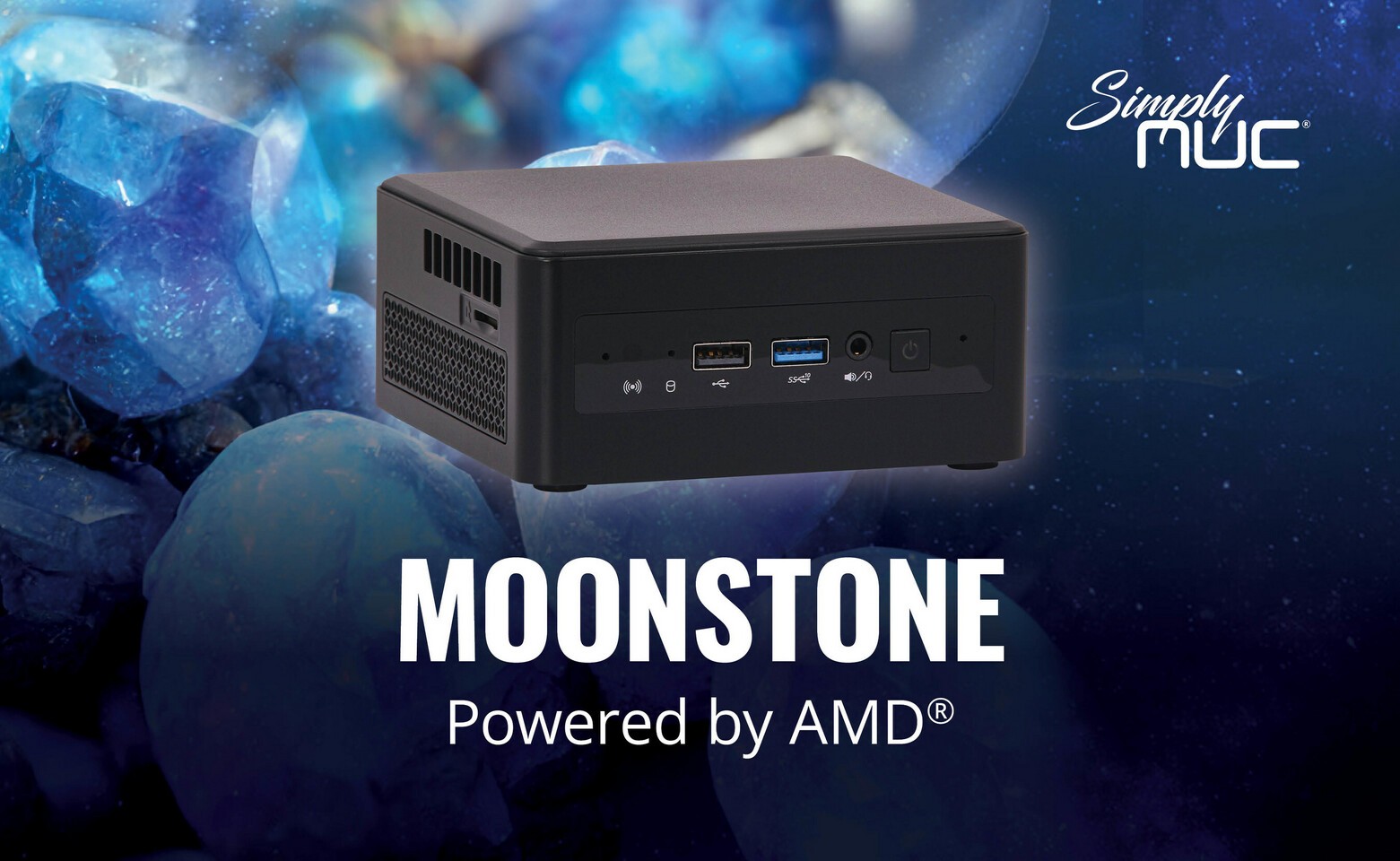

Simply NUC Moonstone CBM3r7MS
