MSI Cubi NUC 1MG (Silver) 120U

MSI

Cubi NUC 1MG (Silver) 120U

CPU i5 120U

GPU Iris Xe 80EU

Max RAM 64GB

Drives 4

Seller Newegg

The MSI Cubi NUC 1MG (Silver) 120U is a mini PC powered by the Intel i5 120U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 136 × 133 × 50mm (0.90L). Uses a Brick PSU (120W).

CPU & Performance

CPUi5 120U

Generation13th

P-Cores2

Threads12

Single-core74

Multi-core24

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed5200 MT/s

ECC supportNo

Storage

Max drives4

NVMe slots2

Gen4 x41

Gen3 x41

2.5" SATA1

SD cardYes

Ports & Connectivity

USB4 40Gbps1.25

Max displays4

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions136 × 133 × 50 mm

Volume0.9L

Fan size80mm

Warranty3 yr

Power

PSU typeBrick

PSU120W

Notes

Supports HDMI CEC power on with compatible MSI monitors, video output is limited to 4k 60hz and not 8k 60hz

Discover More

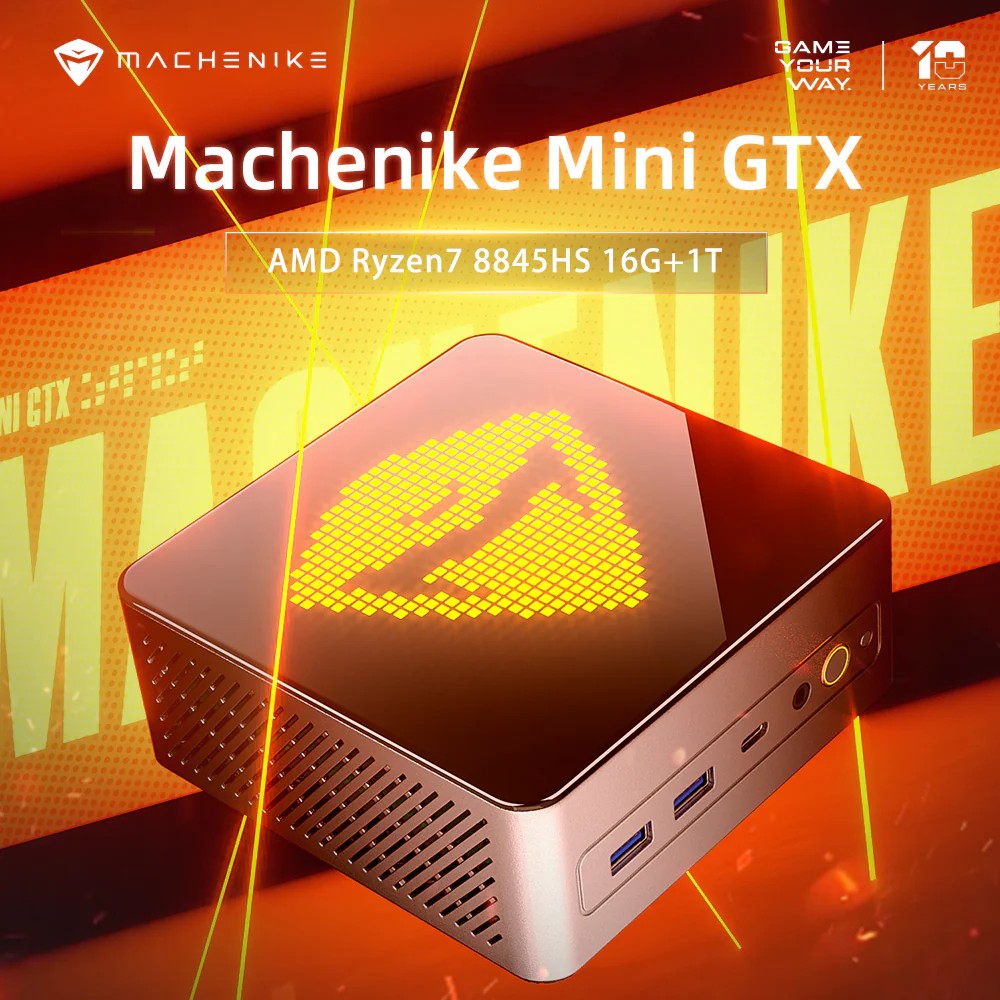

Machenike Mini GTX 8845HS
