Mini PC DataBase

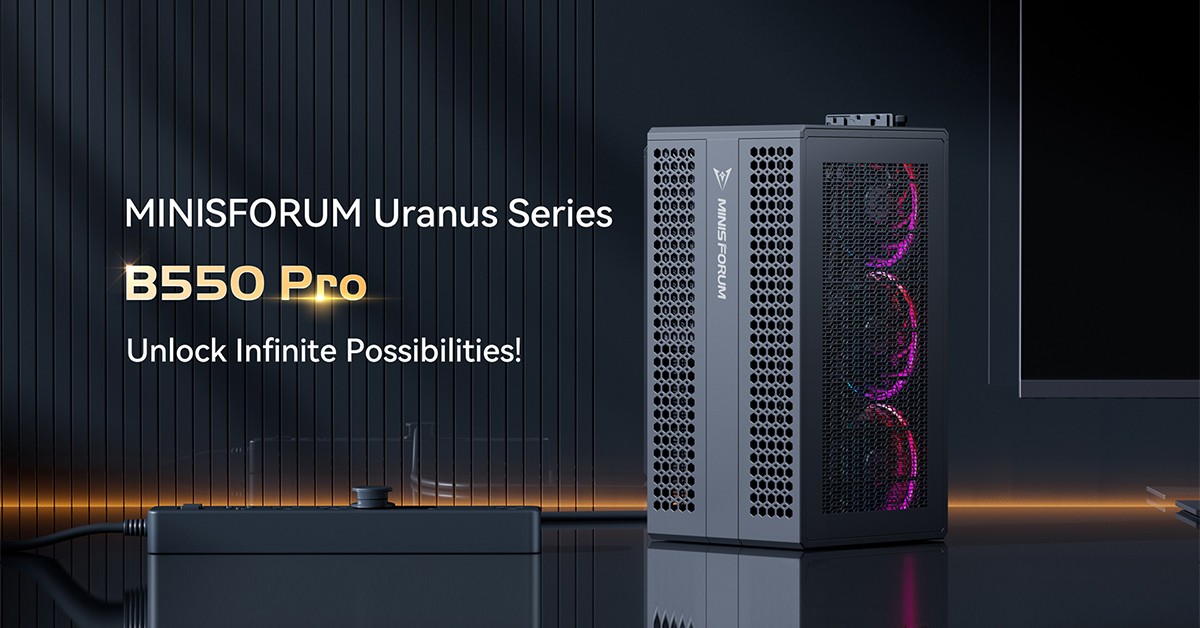

Minisforum Announced B550 Pro

Minisforum

Announced B550 Pro

CPU r7 5800X3D

GPU Desktop GPU Slot

Max RAM 64GB

Drives 3

Seller Minisforum

The Minisforum Announced B550 Pro is a mini PC powered by the AMD r7 5800X3D (Zen 3 gen). It features 8 performance cores and 16 threads and a AM4 socket. Graphics are handled by the discrete Desktop GPU Slot. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 320 × 170 × 160mm (8.70L). Uses a SFX PSU, 105W TDP.

CPU & Performance

CPUr7 5800X3D

GenerationZen 3

P-Cores8

Threads16

Single-core64

Multi-core42

SocketAM4

GPU

GPUDesktop GPU Slot

Discrete GPUYes

Integrated GPUNo

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x41

Gen3 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.11

Max displays6

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions320 × 170 × 160 mm

Volume8.7L

Fan size120mm

Power

TDP105W

PSU typeSFX

Notes

$60 ATX/SFX power supply added to estimated cost, Can support a HDMI 2.1 port with a RX 7900 XT or RX 7900 XTX or similar GPU upgrade

Discover More

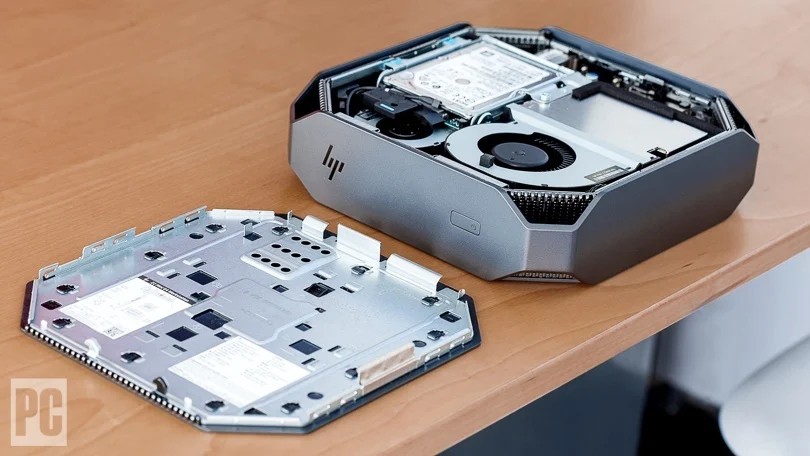

HP Z2 Mini G4
