Minisforum

EliteMini B550 6800XT

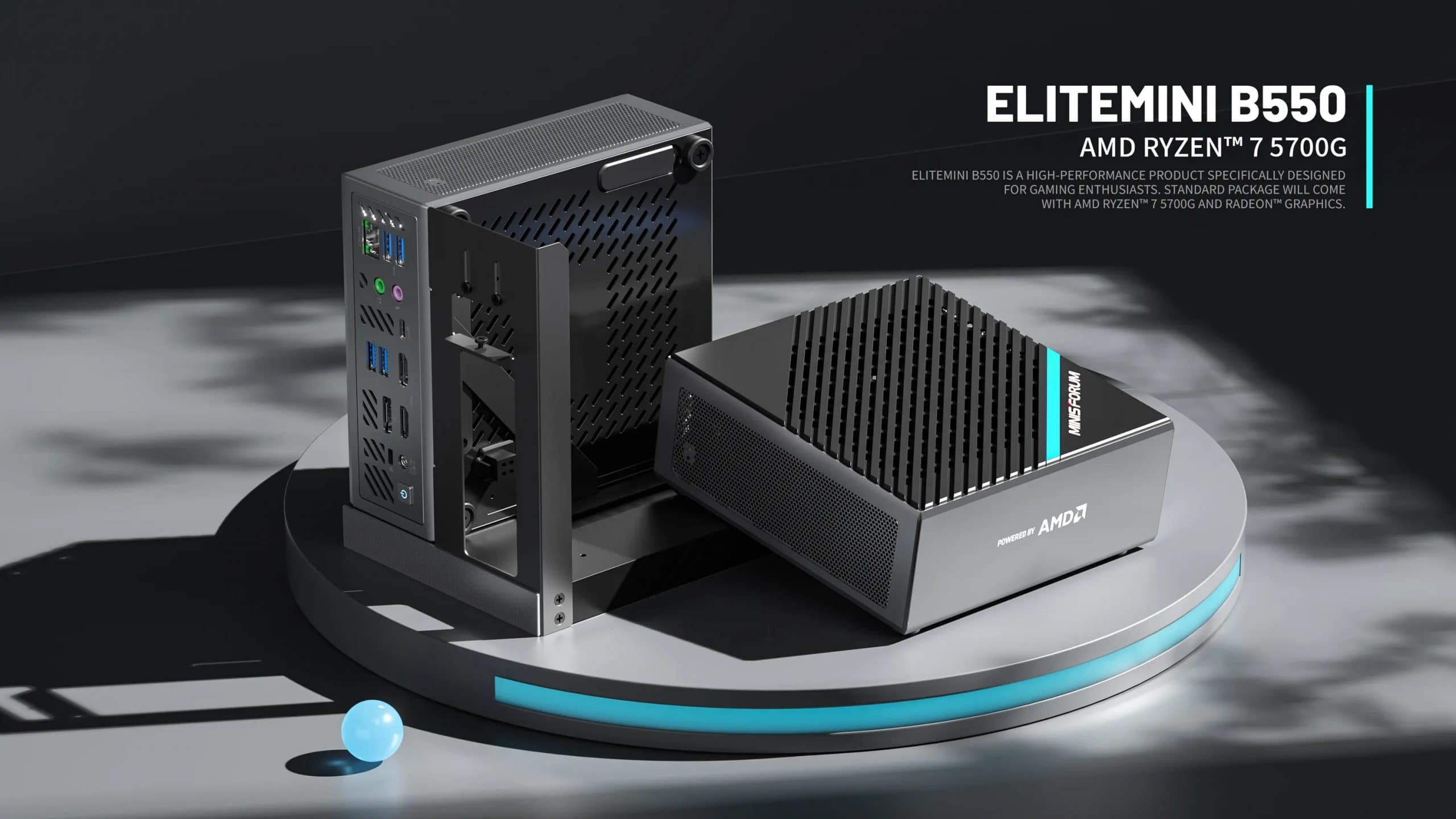

Name: Minisforum EliteMini B550 6800XT
Brand: Minisforum

CPU r7 5700G

GPU 6800XT

Max RAM 64GB

Drives 3

From $880

Seller Minisforum

The Minisforum EliteMini B550 6800XT is a mini PC powered by the AMD r7 5700G (Zen 3 gen). It features 8 performance cores and 16 threads and a AM4 socket. Graphics are handled by the integrated AMD 6800XT, with eGPU support. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 280 × 158 × 180mm (7.96L). Uses a SFX PSU, 65W TDP.

CPU & Performance

CPUr7 5700G

GenerationZen 3

P-Cores8

Threads16

Single-core65

Multi-core36

SocketAM4

GPU

GPU6800XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen3 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.11

Max displays7

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions280 × 158 × 180 mm

Volume7.96L

Fan size90mm

Power

TDP65W

PSU typeSFX

Notes

Nov 19 2024: $11100 to $880. $60 ATX/SFX power supply added to estimated cost, Can support a HDMI 2.1 port with a RX 7900 XT or RX 7900 XTX or similar GPU upgrade
