Minisforum
MBG6
CPU r7 5700X
GPU 6600M
Max RAM 64GB
Drives 3
Seller Minisforum

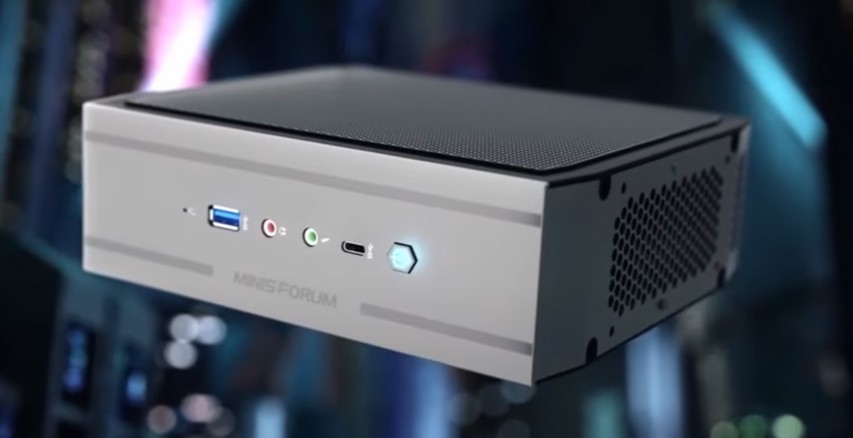

The Minisforum MBG6 is a mini PC powered by the AMD r7 5700X (Zen 3 gen). It features 8 performance cores and 16 threads and a AM4 socket. Graphics are handled by the discrete AMD 6600M. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 1 NVMe, 2× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 208 × 180 × 66mm (2.47L). Uses a Brick PSU, 165W TDP.
CPU & Performance
CPUr7 5700X
GenerationZen 3
P-Cores8
Threads16
Single-core67
Multi-core39
SocketAM4
GPU
GPU6600M
Discrete GPUYes
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen3 x41
2.5" SATA2
SD cardNo
Ports & Connectivity
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions208 × 180 × 66 mm
Volume2.47L
Fan size80mm
Power
TDP165W
PSU typeBrick
Notes
6600m tdp varies 50-100W
