Minisforum
MS-01-S1260 6400
CPU i7 12600H
GPU 6400
Max RAM 64GB
Drives 3
From $560
Seller Minisforum
The Minisforum MS-01-S1260 6400 is a mini PC powered by the Intel i7 12600H (12th gen). It features 6 performance cores and 16 threads and a soldered CPU. Graphics are handled by the discrete AMD 6400. Supports up to 64GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 3 drives including 3 NVMe. Connectivity includes USB4 40Gbps. Networking features 4 Ethernet ports (up to 10G). Dimensions: 196 × 189 × 48mm (1.78L).
CPU & Performance
CPUi7 12600H
Generation12th
P-Cores6
Threads16
Single-core70
Multi-core32
Socket0
GPU
GPU6400
Discrete GPUYes
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed5200 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots3
Gen3 x43
SD cardNo
Ports & Connectivity
USB4 40Gbps2
Max displays5
Network
Max Ethernet4G
10G ports2
2.5G ports2
vProY
Physical
Dimensions196 × 189 × 48 mm
Volume1.78L
Fan size80mm
Warranty2 yr
Power
Notes
Dec 28: PCIe 4.0X16 slot is limited to x8 bandwidth
Discover More
Raspberry Pi
Pi 5 16GB
$120
Raspberry Pi Pi 5 16GB features ARM ARM BCM2712, 16GB RAM, offering ultra-compact 0.10L form factor.
CPU ARM ARM BCM2712
Cores / Threads 4 / 4
Socket Soldered
GPU ARM VideoCore VII
RAM 16GB
Speed 3200 MT/s
Drives 1
Ethernet 1 (1G)
PSU GaN
Size 86×57×21mm
Vol 0.1L
Shuttle

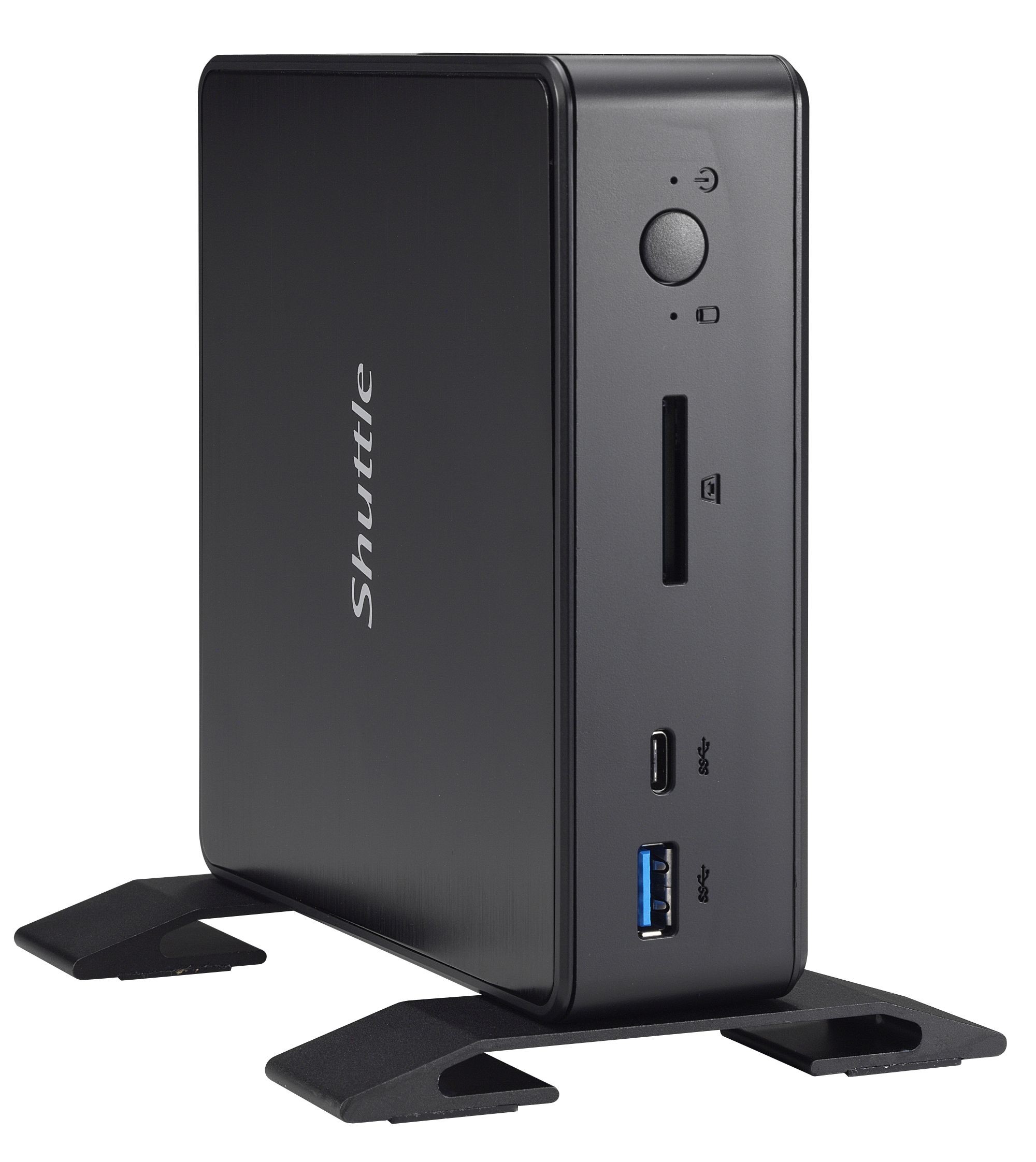

XPC Nano NC10U
