Minisforum
MS-A1 8600G 6700XT
CPU r5 8600G
GPU 6700XT
Max RAM 96GB
Drives 4
From $968
Seller Amazon
The Minisforum MS-A1 8600G 6700XT is a mini PC powered by the AMD r5 8600G (Zen 4 gen). It features 6 performance cores and 12 threads and a AM5 socket. Graphics are handled by the integrated AMD 6700XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 4 drives including 4 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 290 × 225 × 190mm (12.40L). Uses a Brick PSU (240W).
CPU & Performance
CPUr5 8600G
GenerationZen 4
P-Cores6
Threads12
Single-core77
Multi-core37
SocketAM5
GPU
GPU6700XT
Discrete GPUNo
Integrated GPUYes
eGPU supportYes
RAM
Max RAM96GB
RAM slots2
Max speed5200 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots4
Gen4 x42
Gen3 x41
SD cardNo
Ports & Connectivity
HDMI 2.12
DP 1.44
USB4 40Gbps1
OCuLinkYes
Max displays7
Network
Max Ethernet2G
2.5G ports2
vProN
Physical
Dimensions290 × 225 × 190 mm
Volume12.4L
Fan size90mm
Warranty2 yr
Power
PSU typeBrick
PSU240W
Discover More
Dell
Optiplex 3090 Micro
$615
Dell Optiplex 3090 Micro features Intel i5 10500T, 64GB RAM.
CPU Intel i5 10500T
Cores / Threads 6 / 12
Socket LGA1200
GPU Intel Intel UHD 630
RAM 64GB / 2slots
Speed 2933 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 182×179×36mm
Vol 1.17L
CWWK/Topton

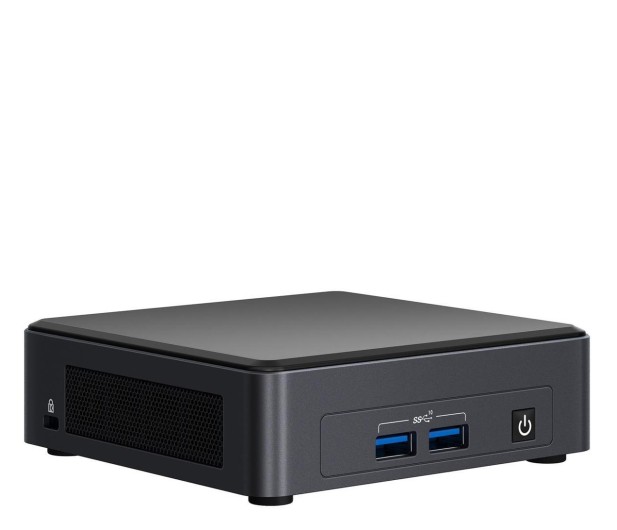

CWWK NUC11i5
