Mini PC DataBase

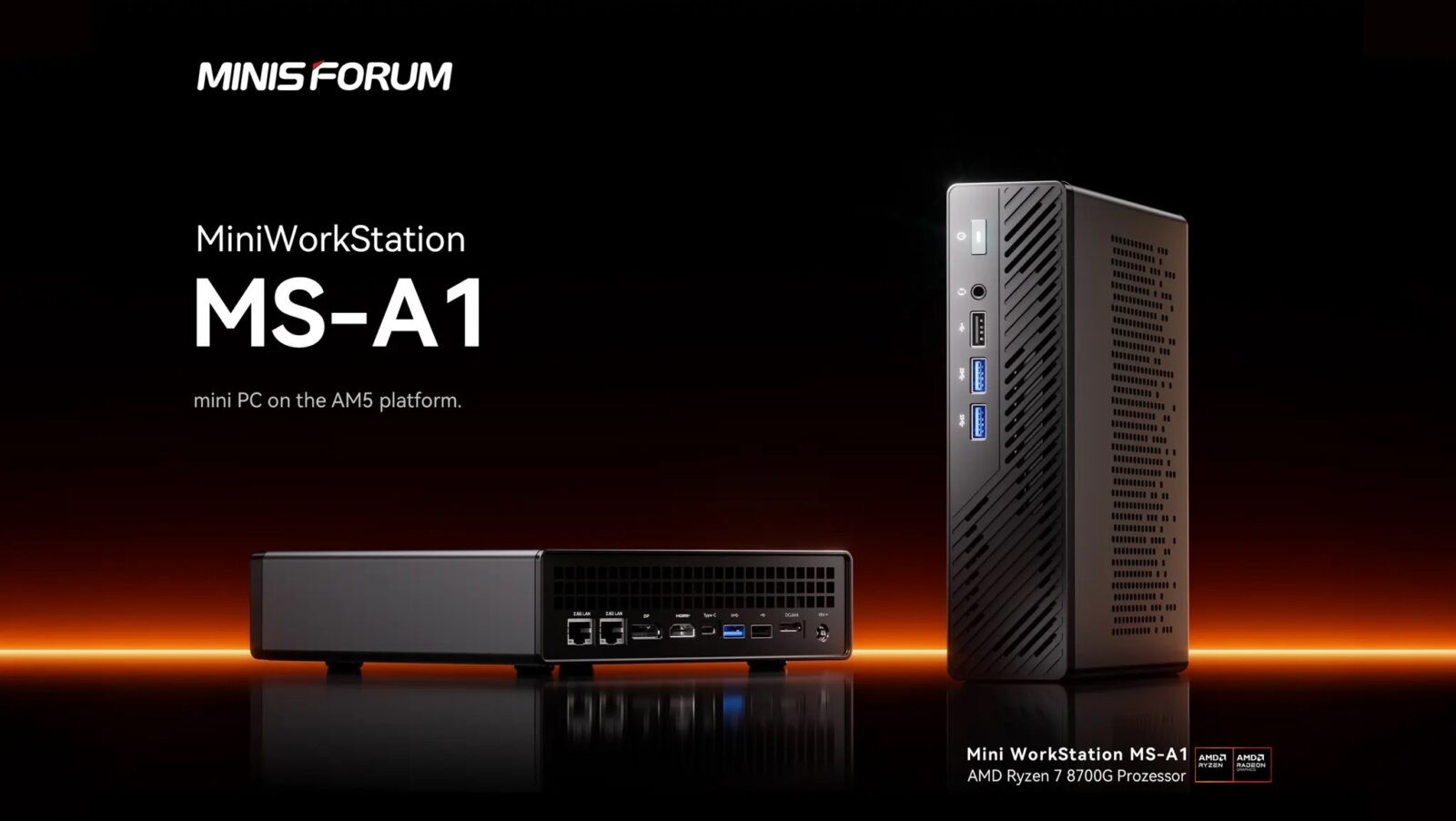

Minisforum MS-A1 8700G 6700XT

Minisforum

MS-A1 8700G 6700XT

CPU r7 8700G

GPU 6700XT

Max RAM 96GB

Drives 4

From $1,083

Seller Amazon

The Minisforum MS-A1 8700G 6700XT is a mini PC powered by the AMD r7 8700G (Zen 4 gen). It features 8 performance cores and 16 threads and a AM5 socket. Graphics are handled by the integrated AMD 6700XT, with eGPU support. Supports up to 96GB of RAM across 2 slots at 5200 MT/s. Storage capacity of up to 4 drives including 4 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 1.4. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 290 × 225 × 190mm (12.40L). Uses a Brick PSU (240W).

CPU & Performance

CPUr7 8700G

GenerationZen 4

P-Cores8

Threads16

Single-core79

Multi-core48

SocketAM5

GPU

GPU6700XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM96GB

RAM slots2

Max speed5200 MT/s

ECC supportNo

Storage

Max drives4

NVMe slots4

Gen4 x42

Gen3 x41

SD cardNo

Ports & Connectivity

HDMI 2.12

DP 1.44

USB4 40Gbps1

OCuLinkYes

Max displays7

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions290 × 225 × 190 mm

Volume12.4L

Fan size90mm

Warranty2 yr

Power

PSU typeBrick

PSU240W

Discover More

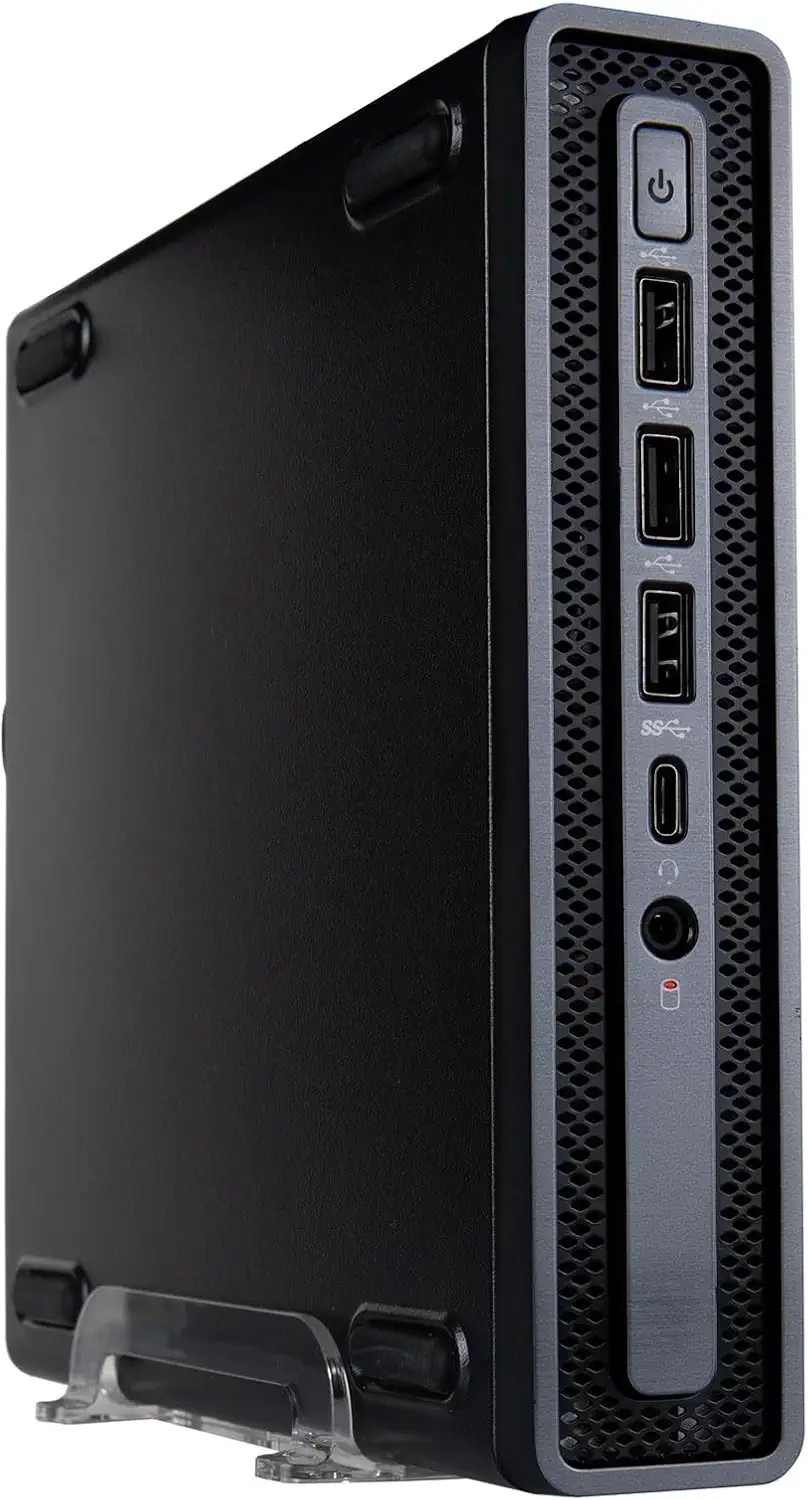

Empowered PC Envision M1 12700

Envision M1 12700

Empowered PC Envision M1 12700 features Intel i7 12700, 64GB RAM.

CPU Intel i7 12700

Cores / Threads 8 / 20

GPU Intel Intel UHD 770

RAM 64GB / 2slots

Speed 4800 MT/s

Drives 1 (1 NVMe)

Ethernet 1 (1G)

Size 198×196×51mm

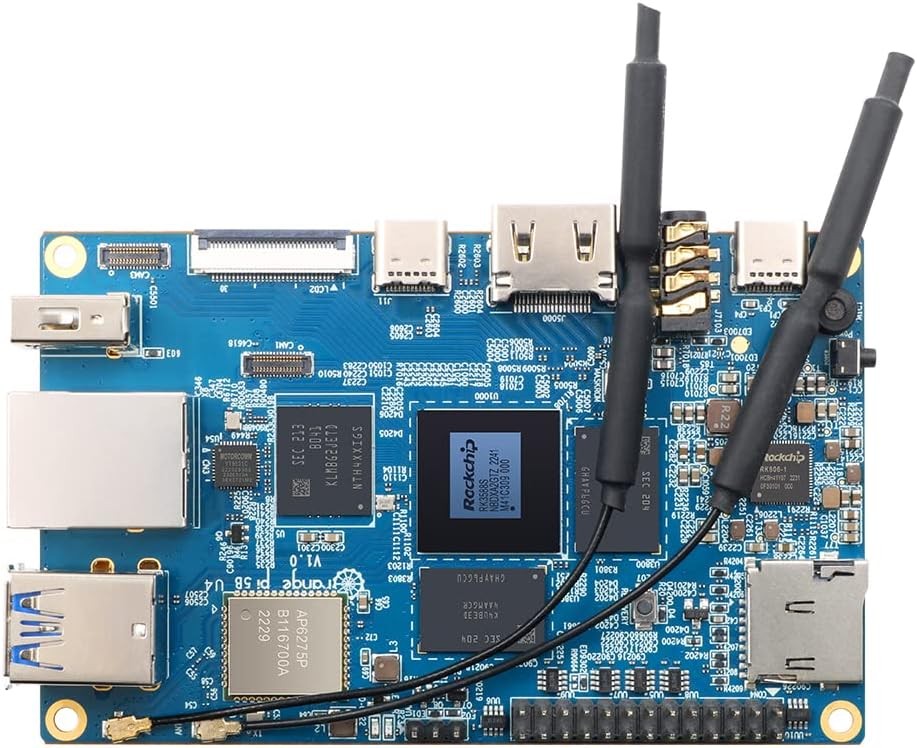

Orange Pi Orange Pi 5B 8GB
